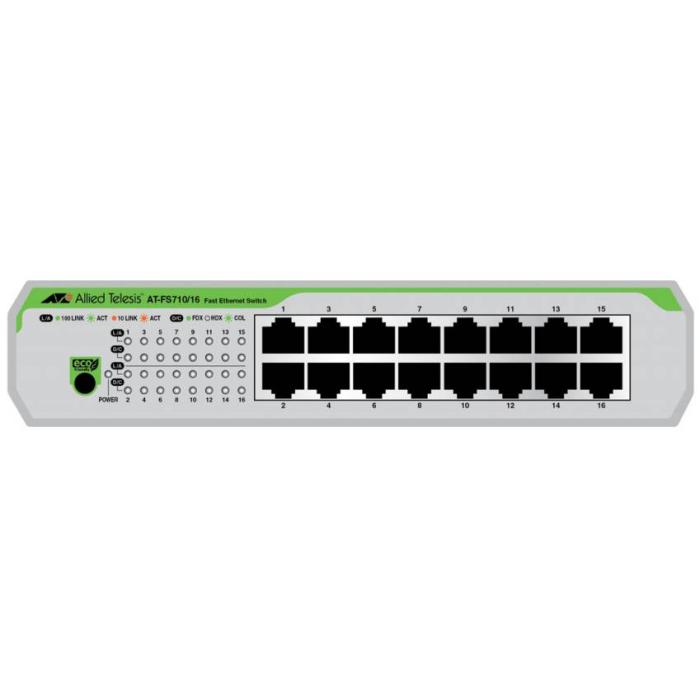

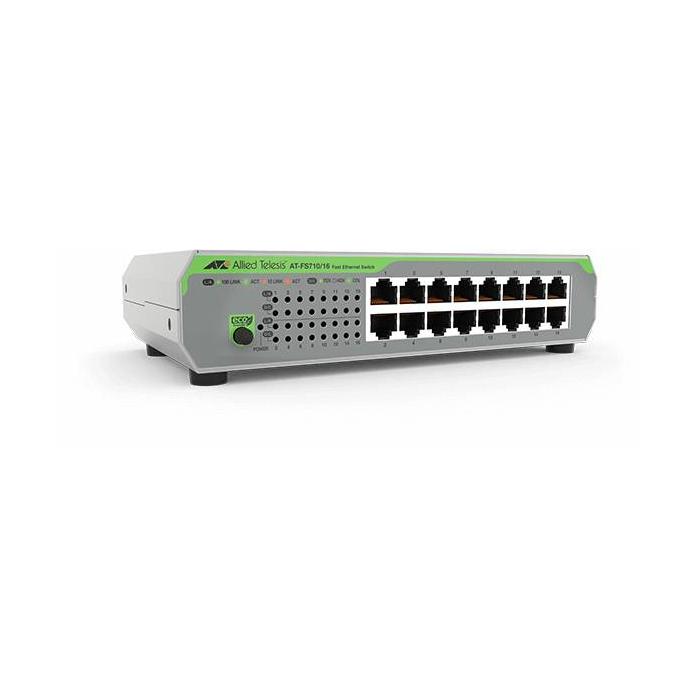

Name: Allied Telesis AT-FS710/16-50 Unmanaged Fast Ethernet (10/100) 1U Green, Grey
Brand: ALLIED TELESIS
Availability: OutOfStock

Allied Telesis AT-FS710/16-50 Unmanaged Fast Ethernet (10/100) 1U Green, Grey

Not avaliable

Amount

Brand: ALLIED TELESIS

SKU: 81451 PRC: 239506 EAN: 767035211893 PN: 990-005847-50

Description

Specifications

Management features

Switch type: Unmanaged

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 16
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
Power connector: DC-in jack

Network

Networking standards: IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
10G support: No
Flow control support: Yes
Auto MDI/MDI-X: Yes

Data transmission

Switching capacity: 3.2 Gbit/s
Throughput: 2.38 Mpps
MAC address table: 8000 entries
Jumbo frames support: Yes

Design

Rack mounting: Yes
Form factor: 1U
Product colour: Green, Grey
LED indicators: Yes

Power

AC input voltage: 100 - 240 V
AC input frequency: 50 - 60 Hz
Power consumption (max): 5.4 W

Operational conditions

Operating temperature (T-T): 0 - 50 °C
Storage temperature (T-T): -25 - 70 °C
Operating relative humidity (H-H): 5 - 90%
Storage relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 2000 m

Weight & dimensions

Width: 210 mm
Depth: 124 mm
Height: 44 mm
Weight: 870 g

Logistics data

Harmonized System (HS) code: 85176990
