Description

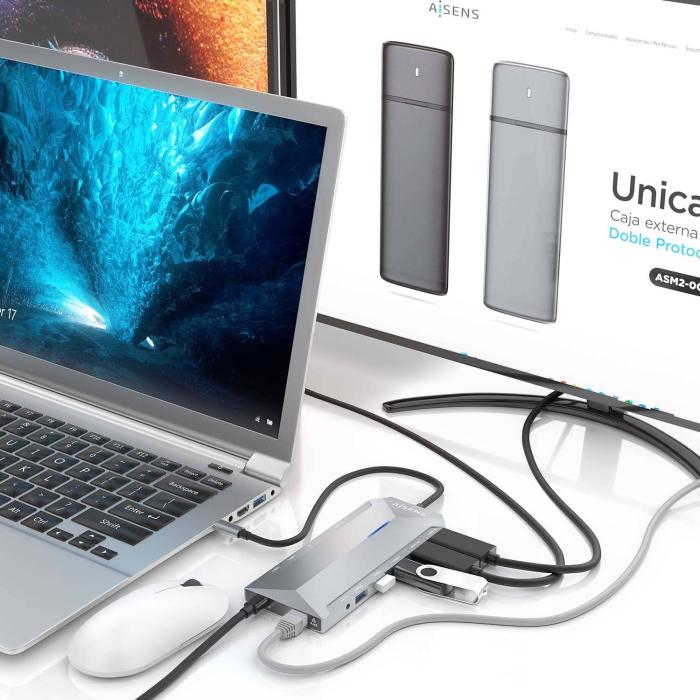

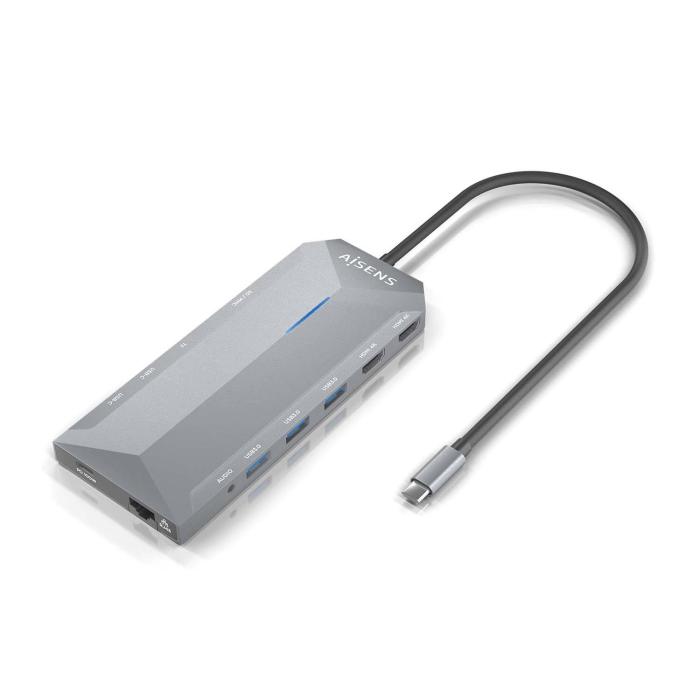

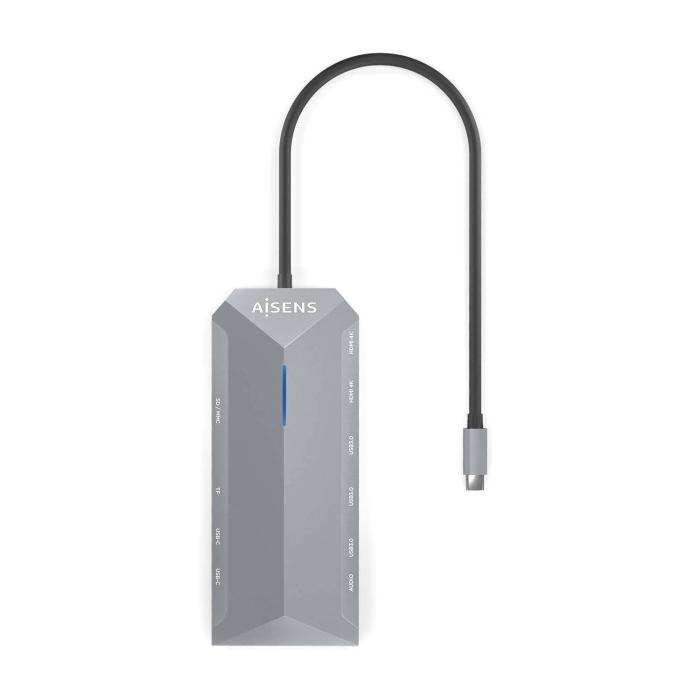

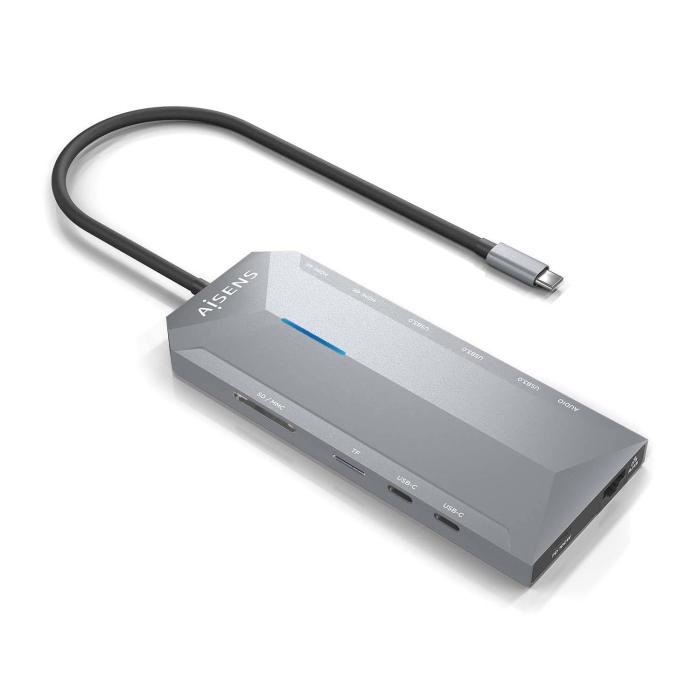

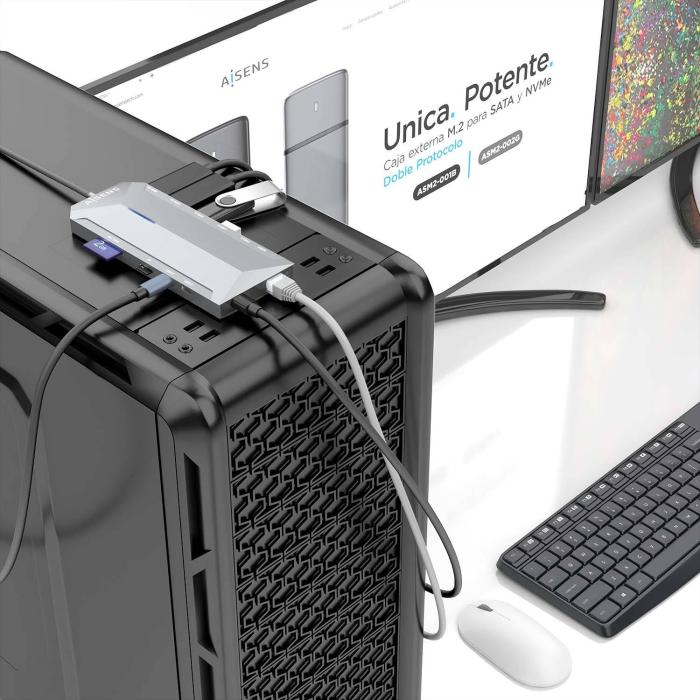

Connect your laptop to everything you need with the AISENS 12-in-1 USB-C dock, in grey. Its USB 3.2 Gen 1 Type-C host interface connects to two HDMI ports, one RJ-45 port, three USB-A ports and three USB-C ports, one of them with USB Power Delivery of up to 100 W. The Ethernet network connection reaches speeds of 10, 100 and 1000 Mbit/s, and the dock includes a card reader compatible with SD, SDHC, SDXC, MicroSD, MicroSDHC, MicroSDXC and RS-MMC. It also features a combo headphone and microphone connector for your calls or your music. Its connectivity technology is wired, with a 30 cm cable, and its dimensions are 62.6 x 15.6 x 154.2 mm (width x height x depth), a compact format that fits in any case. HDCP compatible.

Specifications

Ports & interfaces


  • Connectivity technology: Wired
  • Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 3
  • USB Power Delivery (USB PD): Yes
  • USB Power Delivery up to: 100 W
  • HDMI ports quantity: 2
  • Microphone in: Yes
  • Combo headphone/mic port: Yes
  • Headphone outputs: 1
  • HDCP: Yes
  • USB Type-C DisplayPort Alternate Mode: Yes

Network


  • Ethernet LAN: Yes
  • Ethernet LAN (RJ-45) ports: 1
  • Ethernet LAN data rates: 10, 100, 1000 Mbit/s
  • Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x

Performance


  • Card reader integrated: Yes
  • Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC, RS-MMC, SD, SDHC, SDXC
  • Data transfer rate: 5 Gbit/s
  • HD type: 4K Ultra HD
  • Maximum digital resolution: 3840 x 2160 pixels
  • Maximum refresh rate: 60 Hz
  • Product colour: Grey

Power


  • USB cable length: 0.3 m

Software


  • Windows operating systems supported: Windows 10, Windows 11
  • Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Ma
  • Linux operating systems supported: Yes
  • Mobile operating systems supported: iPadOS

Weight & dimensions


  • Width: 62.6 mm
  • Depth: 154.2 mm
  • Height: 15.6 mm

Packaging data


  • Quantity per pack: 1 pc(s)
  • Package width: 110 mm
  • Package depth: 200 mm
  • Package height: 25 mm
  • Package weight: 300 g

Packaging content


  • Manual: Yes
  • Packaging content: 1 x USB-C Dock 12 in 1 1 x Multi-language User Manual

Technical details


  • Package volume: 550 cm³
  • Master (outer) case volume: 16200 cm³
  • Compliance certificates: CE, RoHS

Logistics data


  • Master (outer) case width: 270 mm
  • Master (outer) case length: 250 mm
  • Master (outer) case height: 240 mm
  • Master (outer) case gross weight: 6 kg
  • Products per shipping (inner) case: 20 pc(s)

Other features


  • Chipset: RTL8153B
