Description

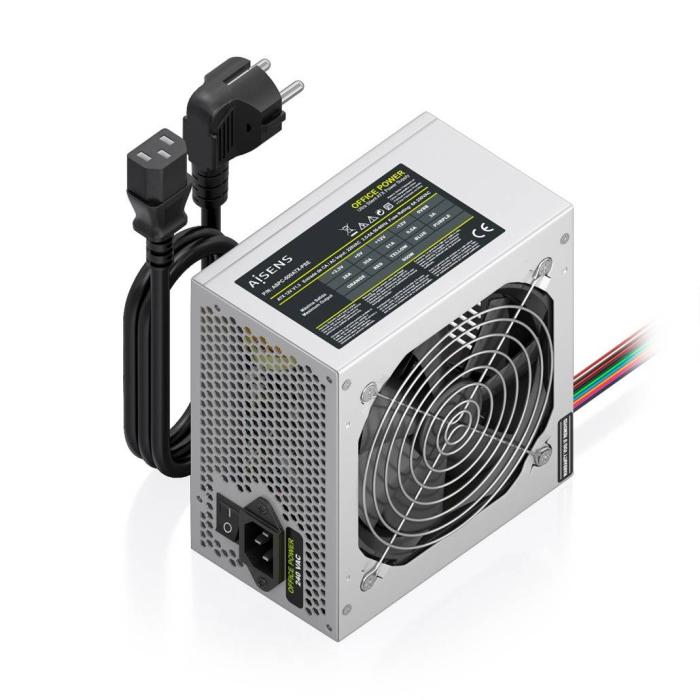

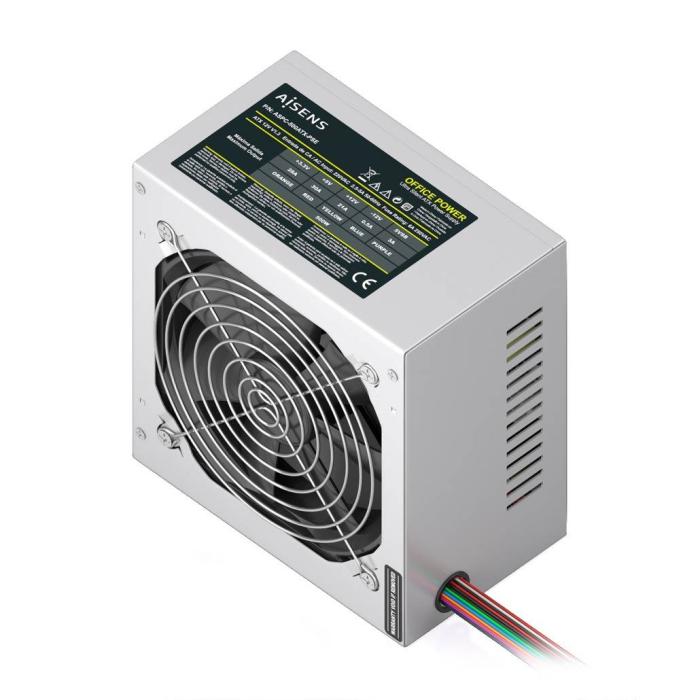

This 500 W ATX power supply unit in a silver finish is presented as an OEM solution for sober, functional PC builds. With an input voltage of 220 V and a frequency of 50/60 Hz, it manages an input current of 2.5 to 5 A and delivers a total power of 500 W, with notable outputs of 30 A on the +5 V line and 28 A on the +3.3 V line. It incorporates protection against overcurrent, overvoltage, undervoltage, short circuit, surge and overheating for safe operation. In terms of connectivity, it features a 20+4 pin ATX connector for the motherboard with a 35 cm cable, two Molex connectors and four SATA connectors with lengths of 350 and 500 mm, as well as a 35 cm CPU power cable.
Specifications
Power
- Max output current (+5V): 30 A
- Max output current (-12V): 0.5 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over current, Over voltage, Under voltage, Short circuit, Over power, Overheating
- Total power: 500 W
- AC input voltage: 220 V
- AC input frequency: 50/60 Hz
- Input current: 2.5 - 5 A
- Max output current (+3.3V): 28 A
- Max output current (+12V): 21 A

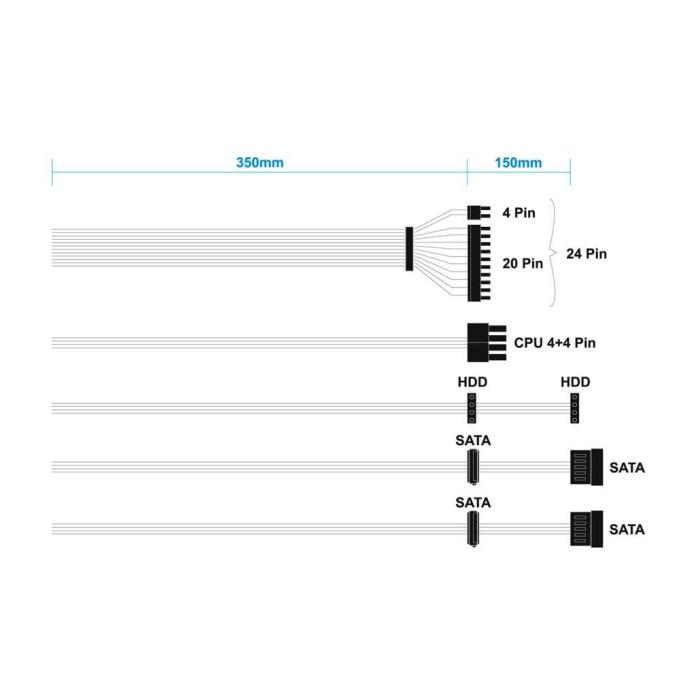

Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 35 cm
- Number of SATA power connectors: 4
- SATA power cable length: 350, 500 mm
- Peripheral (Molex) power connectors (4-pin): 2
- Peripheral (Molex) power cable length: 350, 500 mm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 35 cm
- ATX power connector (20+4 pin): Yes
Performance
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.0
Design
- Product colour: Silver
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Packaging content
- Cables included: AC
Certificates
- Compliance certificates: CE, RoHS

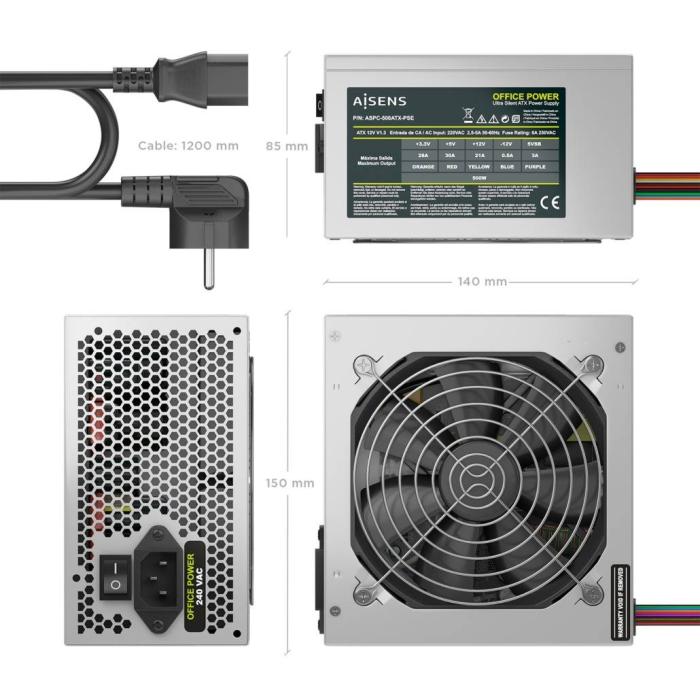

Weight & dimensions
- Width: 140 mm
- Depth: 150 mm
- Height: 85 mm
Packaging data
- Manual: Yes
- Package width: 157 mm
- Package depth: 230 mm
- Package height: 95 mm
- Package weight: 1.18 kg
- Package type: Box
Logistics data
- Master (outer) case width: 335 mm
- Master (outer) case length: 495 mm
- Master (outer) case height: 265 mm
- Master (outer) case net weight: 11.8 kg
- Master (outer) case volume: 43944 cm³
- Products per master (outer) case: 10 pc(s)
Other features
- Package volume: 3430 cm³
