Description

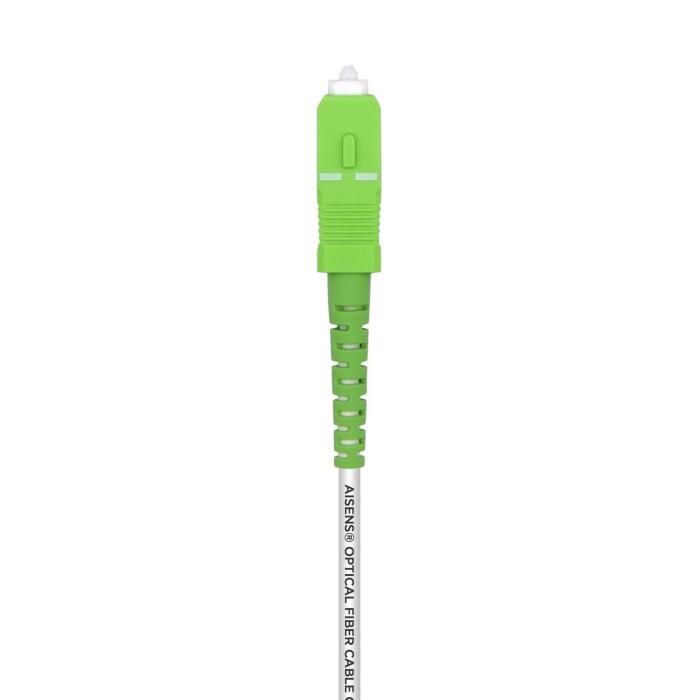

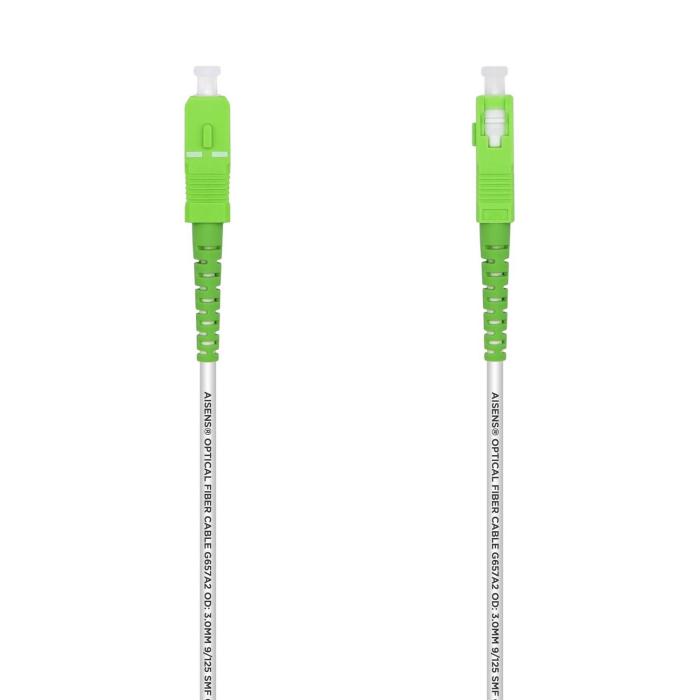

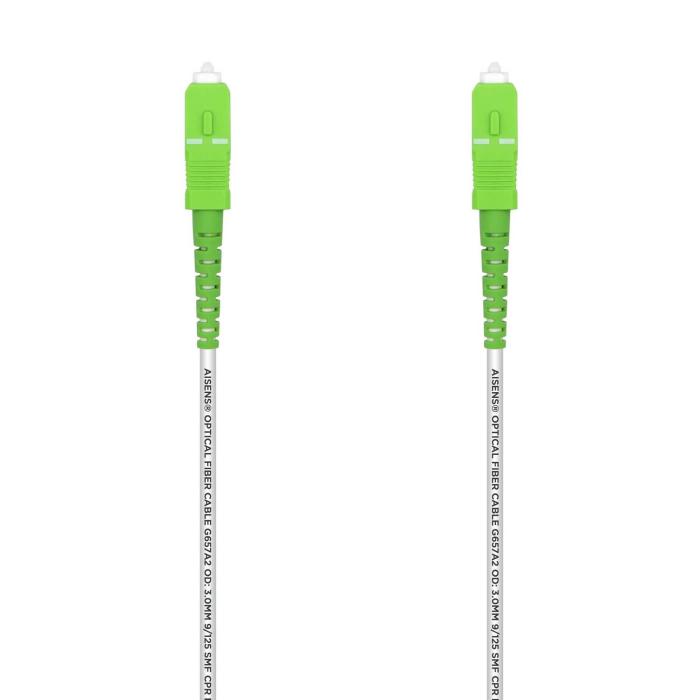

Connect equipment with the AISENS A152-0498 fibre optic cable, in white and with a cable length of 10 m, a singlemode solution designed to link devices via male SC connectors at both ends. Its G.657.A2 fibre, with a core diameter of 9 µm and a 125 µm cladding, supports wavelengths of 1310 and 1550 nm, making it suitable for Gigabit Ethernet, 10 Gigabit, 40 Gigabit and 100 Gigabit interfaces. The APC polishing of the connectors contributes to careful optical performance, with an insertion loss of 0.3 dB and a return loss of 50 dB. The jacket combines Kevlar and halogen-free material (LSZH), and the cable is CPR Dca certified. It is a suitable option for network installations requiring ten-metre runs with SC connectivity.
Specifications
Features
- Cable length: 10 m
- Fibre optic type: G.657.A2
- Connector 1: SC
- Connector 2: SC
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector polish type: APC
- Product colour: White
- Core diameter: 9 µm
- Cladding diameter: 125 µm
- Fiber mode structure: Single-mode
- Wavelengths supported: 1310,1550 nm
- Ethernet interface type: 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, Gigabit Ethernet
- Insertion loss: 0.3 dB
- Return loss: 50 dB
- Jacket material: Kevlar, Low smoke zero halogen (LSZH)
Sustainability
- Doesn't contain: Halogen
Certificates
- Compliance certificates: RoHS
- Certification: CPR Dca
Operational conditions
- Operating temperature (T-T): -20 - 70 °C
Weight & dimensions
- Cable diameter: 3 mm
- Bending radius: 7.5 mm
Packaging data
- Package width: 200 mm
- Package depth: 250 mm
- Package height: 10 mm
- Package volume: 500 cm³
- Package weight: 89 g
Packaging content
- Quantity per pack: 1 pc(s)
Other features
- Attenuation (max): 0.4 dB/km
Logistics data
- Master (outer) case width: 350 mm
- Master (outer) case length: 410 mm
- Master (outer) case height: 300 mm
- Master (outer) case gross weight: 8.9 kg
- Master (outer) case volume: 43050 cm³
- Products per master (outer) case: 100 pc(s)
