Zyxel USG Flex 500 hardware firewall 1U 2.3 Gbit/s

Data transmission

Performance

• Heat dissipation: 82.23 BTU/h
• Noise level: 41.5 dB
• Mean time between failures (MTBF): 529688 h

Network

• Number of VPN connections: 500
• Concurrent SSL/VPN connections (maximum): 150
• VPN tunnels quantity: 300
• Number of VLANs: 64

Security

• Security algorithms: IPSEC, SSL/TLS
• VPN support: IKEv2, IPSec, SSL, L2TP/IPSec

Management features

• URL filtering: Yes

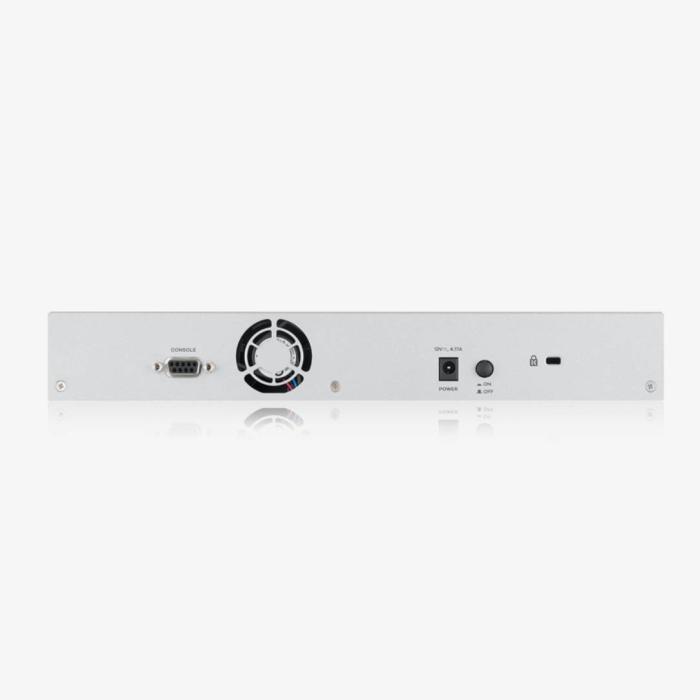

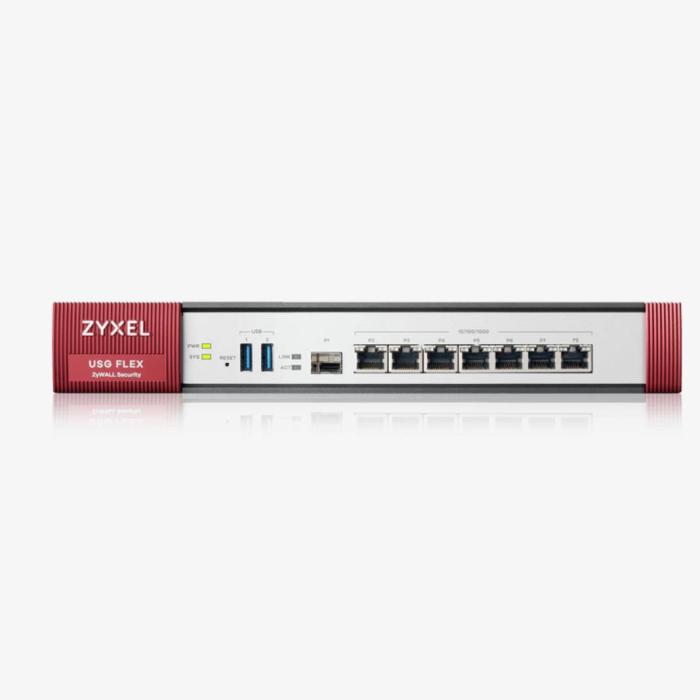

Ports & interfaces

• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• Ethernet LAN (RJ-45) ports: 7
• Number of console ports: 1
• SFP module slots quantity: 1

Design

• Rack mounting: Yes
• Form factor: 1U
• Built-in fan: Yes

Power

• Input current: 4.17 A
• Power consumption (max): 24.1 W

Certificates

• Certification: DCC, CE, C-Tick, LVD

Operational conditions

• Operating temperature (T-T): 0 - 40 °C
• Storage temperature (T-T): -30 - 70 °C
• Operating relative humidity (H-H): 10 - 90%
• Storage relative humidity (H-H): 10 - 90%

Weight & dimensions

• Width: 300 mm
• Depth: 188 mm
• Height: 44 mm
• Weight: 1.65 kg

Packaging data

• Package width: 351 mm
• Package height: 152 mm
• Package depth: 245 mm
• Package weight: 2.83 kg

Packaging content

• Rack mount kit: Yes
• Bundled software: 1 year UTM

Other features

• Firewall throughput: 2300 Mbit/s
• VPN throughput: 810 Mbit/s

Logistics data

• Harmonized System (HS) code: 85176990
