Description

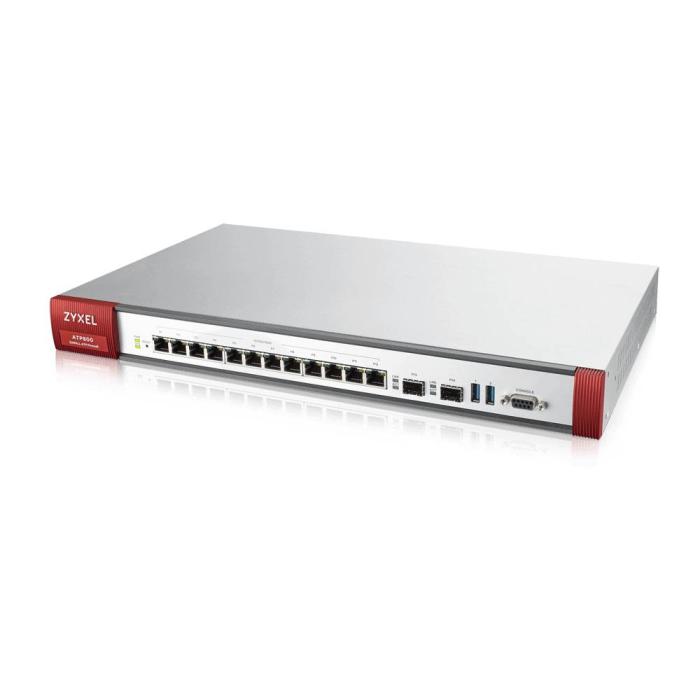

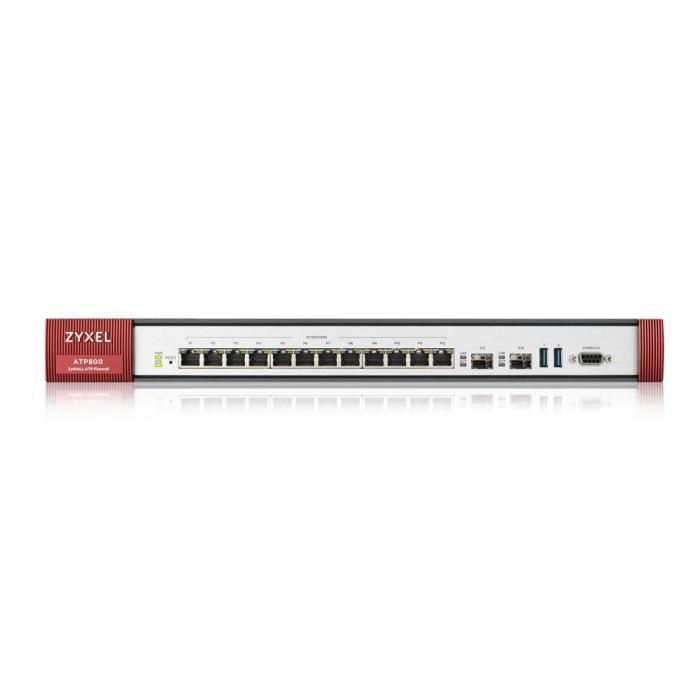

Zyxel ATP800 hardware firewall with 1U form factor and rack mounting, designed for environments requiring centralised network traffic management with firewall performance of 8 Gbit/s and up to 2,000,000 simultaneous connections. It includes 12 Ethernet LAN RJ-45 ports at 10/100/1000 Mbit/s, two SFP slots for fibre links, one console port and two USB 3.2 Gen 1 ports for configuration or external storage. Its VPN performance reaches 1.5 Gbit/s with support for IPSec and SSL/TLS algorithms, while the mean time between failures of 947,736 hours backs its reliability in continuous operation.
Specifications
Data transmission
- Maximum firewall connections: 2000000
Performance
- Heat dissipation: 120.1 BTU/h
- Mean time between failures (MTBF): 947736 h
Security
- Security algorithms: IPSec, SSL/TLS
Management features
- LED indicators: Yes
Ports & interfaces
- Connectivity technology: Wired
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 12
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Number of console ports: 1
- SFP module slots quantity: 2
Design
- Rack mounting: Yes
- Form factor: 1U
- Built-in display: No
- Number of fans: 4 fan(s)
Power
- AC input voltage: 100-240 V
- AC input frequency: 50 - 60 Hz
- Input current: 2.5 A
- Power consumption (max): 46 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -30 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 90%
Weight & dimensions
- Dimensions (WxDxH): 430 x 250 x 44 mm
- Weight: 3.3 kg
Packaging data
- Package width: 519 mm
- Package height: 163 mm
- Package depth: 392 mm
- Package weight: 4.8 kg
Packaging content
- Cables included: AC
- Rack mount kit: Yes
Other features
- Firewall throughput: 8000 Mbit/s
- VPN throughput: 1500 Mbit/s
Logistics data
- Harmonized System (HS) code: 85176990
