Description

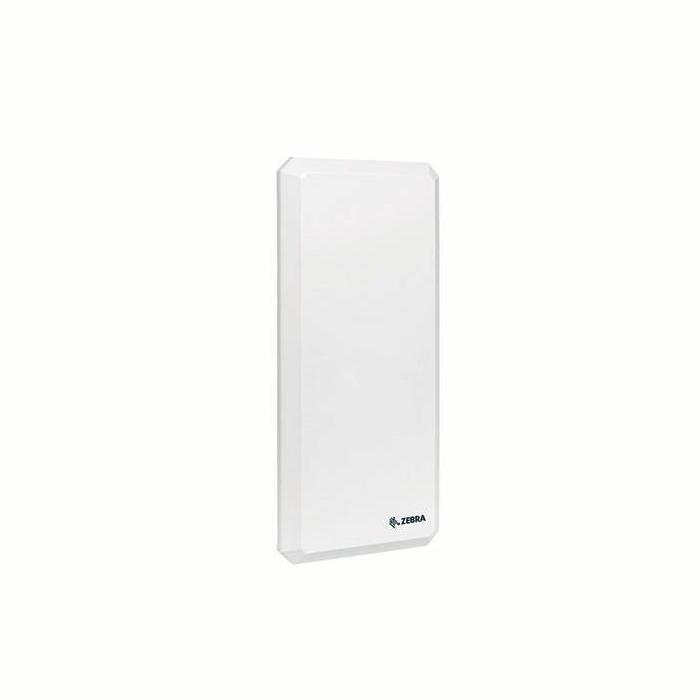

Zebra AN440 white omnidirectional antenna with 6 dBi gain, operating in the 0.865-0.868 and 0.902-0.928 GHz bands, fitted with a female N-type connector. Its UV-resistant ASA housing and IP67 rating make it suitable for both indoor and outdoor installation, with ceiling or wall mounting. It provides circular polarisation, 38 dB isolation, and a 1.4:1 voltage standing wave ratio, supporting a maximum power of 10 W and operating temperatures between -30 and 70 °C.
Specifications
Performance
- Frequency band: 0.865 - 0.868, 0.902 - 0.928 GHz
- Antenna gain level (max): 6 dBi
Features
- Antenna type: Omni-directional antenna
- Antenna connector type: N-type
- Connector gender: Female
- Polarization: Circular polarization
- Voltage Standing Wave Ratio (VSWR): 1.4:1
- Product colour: White
- Housing material: Acrylonitrile styrene acrylate (ASA)
- International Protection (IP) code: IP67
- Ultraviolet (UV) resistant: Yes
- Mounting: Ceiling/wall
- Purpose: Indoor & outdoor
- Front to back ratio: 20 dB
- Isolation: 38 dB
Power
- Power consumption (max): 10 W
Operational conditions
- Operating temperature (T-T): -30 - 70 °C
- Storage temperature (T-T): -40 - 85 °C
Weight & dimensions
- Width: 259.1 mm
- Depth: 33.5 mm
- Height: 575.1 mm
- Weight: 1.9 kg
Packaging content
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 85177100
