Description

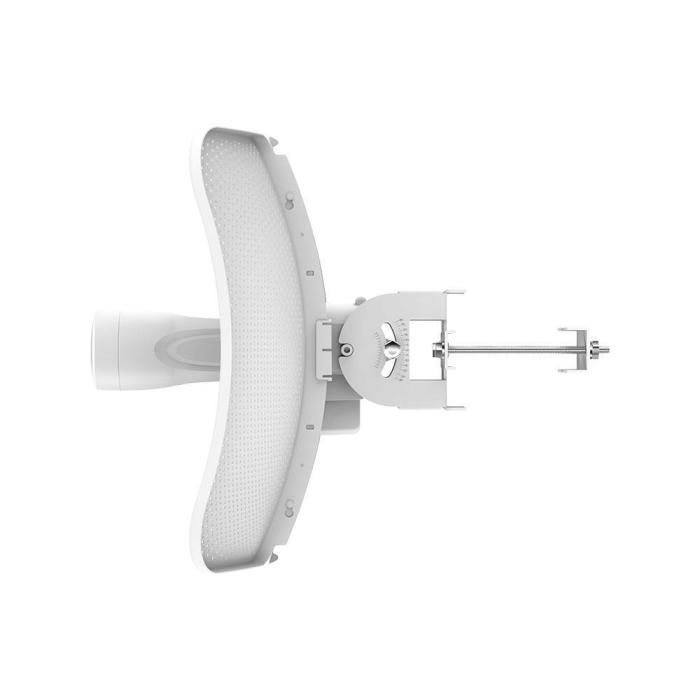

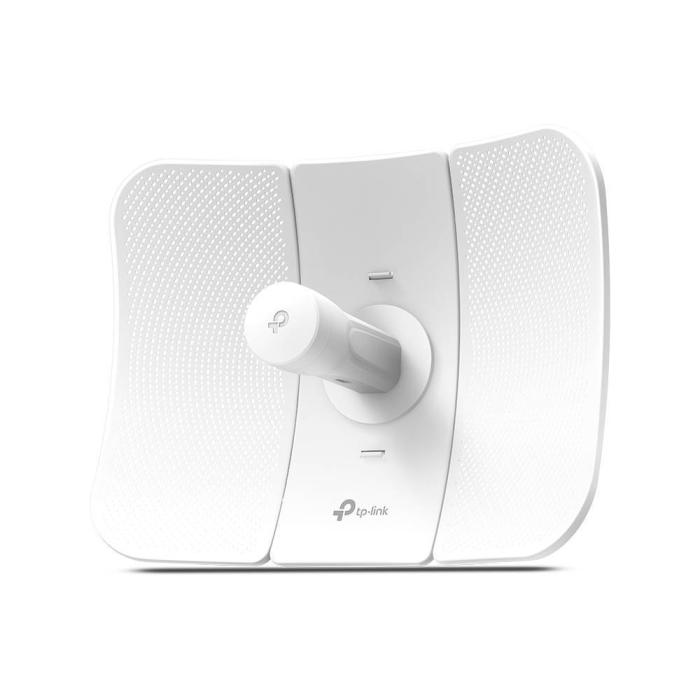

The white TP-Link CPE610 directional antenna operates in the 5.15 to 5.85 GHz frequency band and offers a maximum gain of 27 dBi, with 23 dBi at 5 GHz. Its 9° horizontal and 7° vertical beam makes it suitable for long-distance point-to-point links. It incorporates a 560 MHz processor, 64 MB of internal DDR2 memory, 8 MB of Flash memory and a 10/100Base-T(X) connection. It is compatible with the IEEE 802.11a and IEEE 802.11n standards. Its plastic casing with IP65 protection resists the weather, and it is powered by PoE with an input voltage of 24 V.
Specifications
Performance
- Frequency band: 5.15 - 5.85 GHz
- Networking standards: IEEE 802.11a, IEEE 802.11n
- Cabling technology: 10/100Base-T(X)
- Antenna gain (5 GHz): 23 dBi
- Horizontal beam width: 9°
- Vertical beam width: 7°
- Built-in processor: Yes
- Processor frequency: 560 MHz
- Internal memory: 64 MB
- Internal memory type: DDR2
- Flash memory: 8 MB
- Antenna gain level (max): 27 dBi
Features
- Antenna type: Directional antenna
- Product colour: White
- Housing material: Plastic
- International Protection (IP) code: IP65
Power
- Power source type: PoE
- Input voltage: 24 V
Certificates
- Compliance certificates: RoHS
- Certification: CE, FCC
Operational conditions
- Operating temperature (T-T): -40 - 70 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 95%
Packaging data
- Package type: Box
Packaging content
- Quantity per pack: 1 pc(s)
- Cables included: AC
