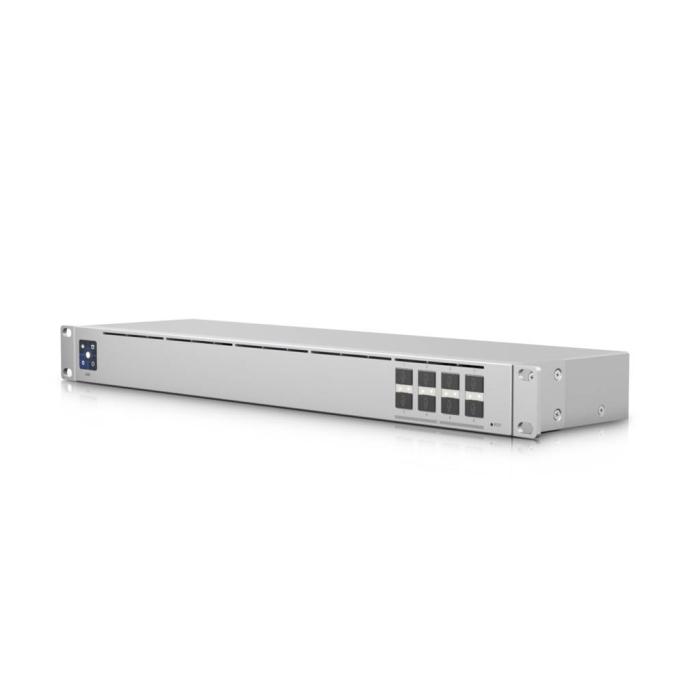

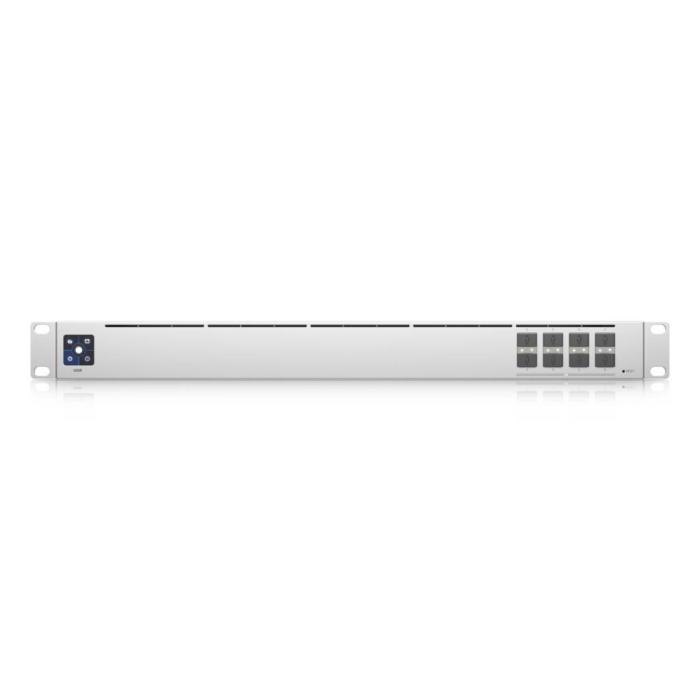

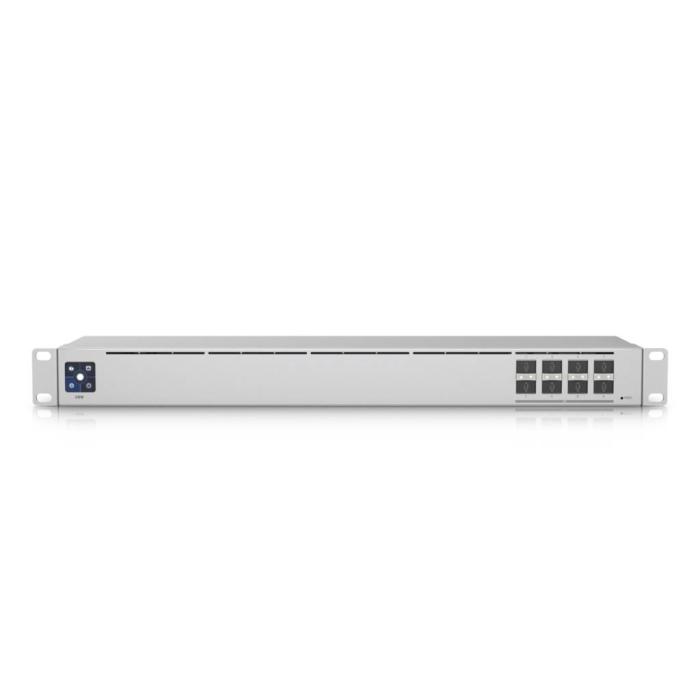

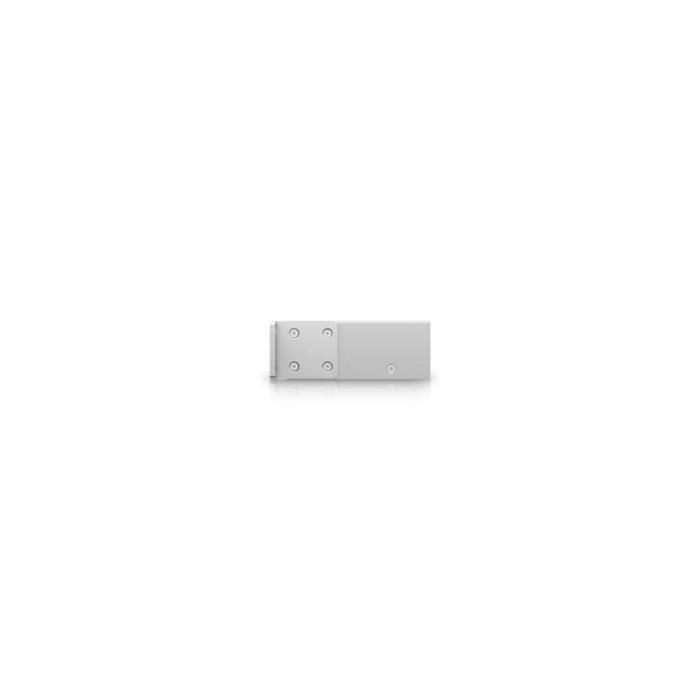

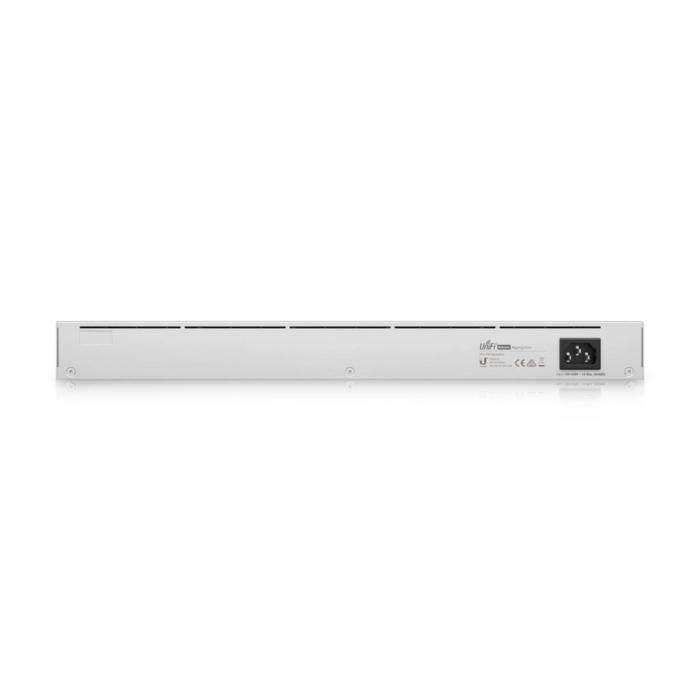

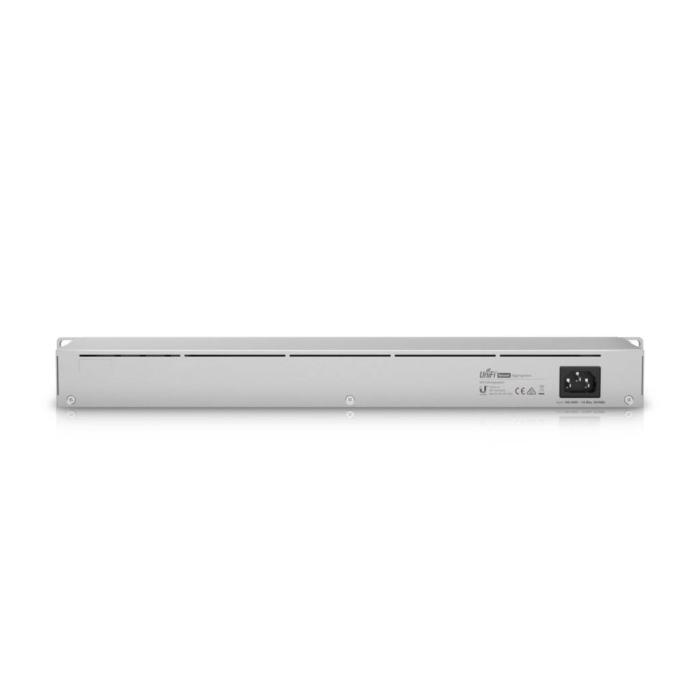

Ubiquiti USW-AGGREGATION network switch Managed L2 1U Silver
More info
Brand: UBIQUITI NETWORKS
313.60 €
259.17 €
without VAT
Stock available: 2 units.
Get it
on the
September 15
/
September 16
SKU:
88528
PRC:
327164
EAN:
810010074331
PN:
usw-aggregation
Description
Managed Layer 2 switch with a 1U form factor in silver, the Ubiquiti Networks USW-AGGREGATION model concentrates eight SFP+ slots for 10G links. Its switching capacity reaches 160 Gbit/s and offers a throughput of 80 Gbit/s with a forwarding rate of 119.04 Mpps, all within a galvanised steel chassis with rack mounting. The housing operates fanless, minimising noise, and includes system and power supply LED indicators. Its maximum power consumption is 30 W and it operates with an AC input of 100-240 V at 50-60 Hz, ready to integrate into networks requiring high-speed traffic aggregation.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
Ports & interfaces
- Basic switching RJ-45 Ethernet ports type: No
- SFP+ module slots quantity: 8
Network
- 10G support: Yes
Data transmission
- Switching capacity: 160 Gbit/s
- Throughput: 80 Gbit/s
- Forwarding rate: 119.04 Mpps
Design
- Rack mounting: Yes
- Form factor: 1U
- Product colour: Silver
- Housing material: Galvanized steel
- LED indicators: System
Performance
- Fanless: Yes
Power
- Power supply included: Yes
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 30 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): -5 - 40 °C
- Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 442.4 mm
- Depth: 120 mm
- Height: 43.7 mm
- Weight: 2.65 kg
Packaging content
- Cables included: AC
- Rack mount kit: Yes
Certificates
- Certification: CE, FCC, IC
Logistics data
- Harmonized System (HS) code: 85176990
