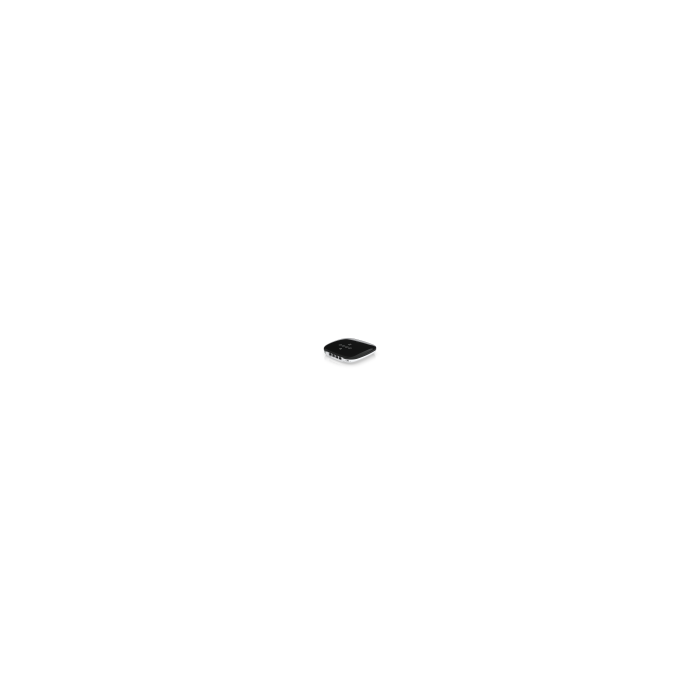

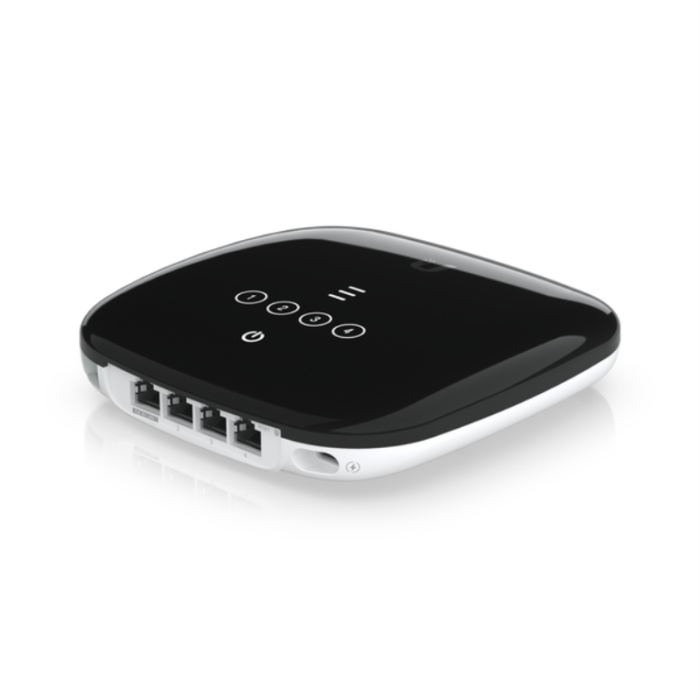

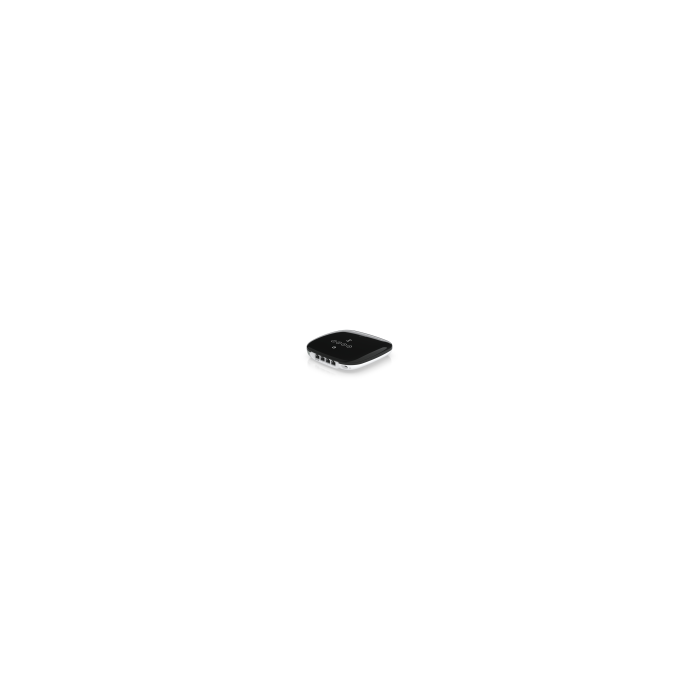

Ubiquiti UFiber WiFi6 GPON CPE Optical network unit (ONU)
More info
Brand: UBIQUITI NETWORKS
109.76 €
90.71 €
without VAT
Stock available: 2 units.
Get it
on the
September 15
/
September 16
SKU:
98146
PRC:
425083
EAN:
810010078384
PN:
UF-WIFI6
Description
Optical network unit (ONU) from the brand Ubiquiti Networks in black, with LED indicators for LAN and power, designed to manage the fibre connection in your network. It offers upload speeds of 2488 Mbit/s and download speeds of 1244 Mbit/s, with a maximum transmission distance of 20 km and VLAN support, complying with ITU G.984 recommendations. It includes Wi-Fi standards ranging from 802.11b to Wi-Fi 6 (802.11ax), with an internal antenna of 3 dBi gain, and one Ethernet LAN port at 1000 Mbit/s with 10/100/1000Base-T(X) technology. Its L2+/L3 switching layer facilitates integration into advanced management environments, while transmission and reception bandwidth is optimised at 1310 nm and 1490 nm respectively.
Specifications
Design
- Product type: Optical network unit (ONU)
- Product colour: Black
- LED indicators: LAN, Power
Network
- Networking standards: IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- ITU standards: G.984
- Ethernet LAN data rates: 1000 Mbit/s
- Cabling technology: 10/100/1000Base-T(X)
- Switch layer: L2+/L3
- Upstream data rate: 2488 Mbit/s
- Downstream data rate: 1244 Mbit/s
- Transmission distance (max): 20 km
- Tx wavelength (max): 1310 nm
- Rx wavelength (max): 1490 nm
- VLAN support: Yes
Wireless LAN features
- Wi-Fi: Yes
- Wi-Fi standards: 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Antenna type: Internal
- Antenna gain level (max): 3 dBi
Management features
- Reset button: Yes
Security
- Security algorithms: AES, TKIP, WEP, WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3
Ports & interfaces
- Fiber ports quantity: 1
- Fiber optic connector: SC
- Ethernet LAN (RJ-45) ports: 4
- USB ports quantity: 1
- DC-in jack: Yes
Power
- Output voltage: 5 V
- Output current: 3 A
- Power consumption (max): 11 W
Certificates
- Compliance certificates: CE
Operational conditions
- Operating temperature (T-T): -15 - 45 °C
- Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
- Width: 141.5 mm
- Depth: 140.8 mm
- Height: 31.6 mm
- Weight: 415 g
Packaging content
- AC adapter included: Yes
- Quantity per pack: 1 pc(s)
