Description

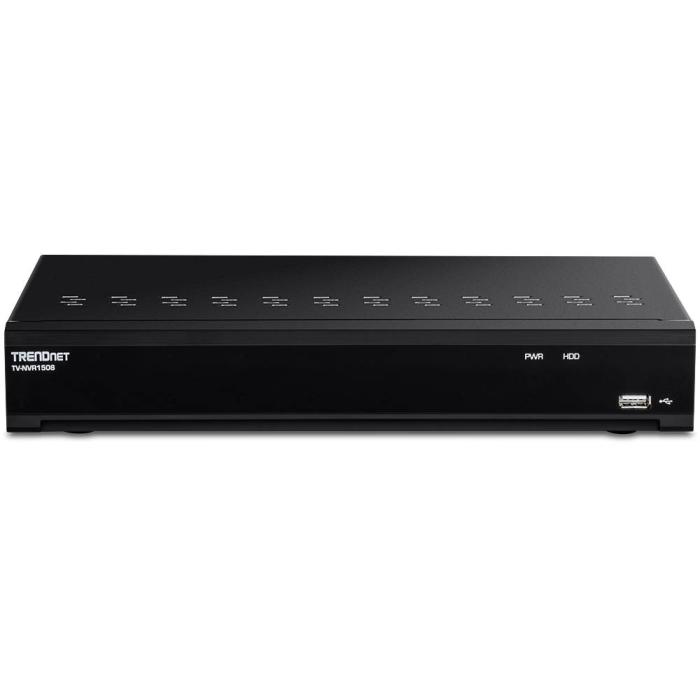

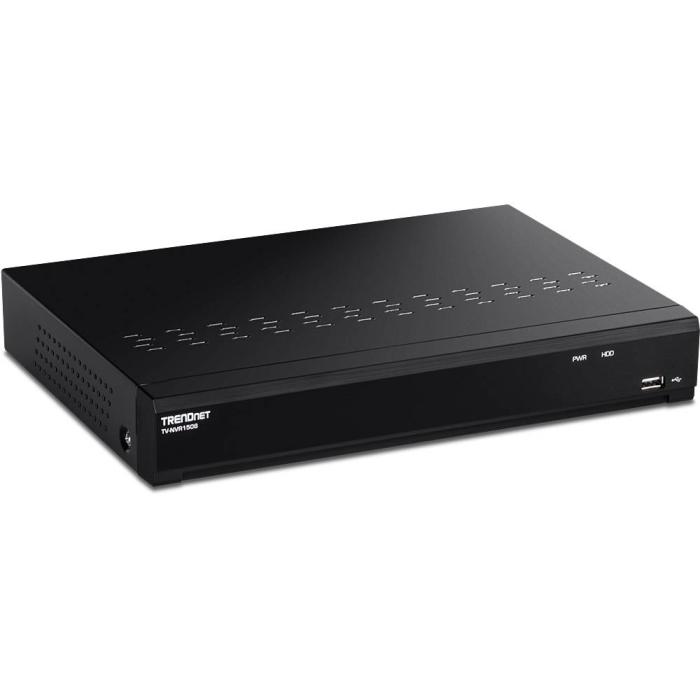

Network video recorder Trendnet TV-NVR1508 in black, designed to manage up to 8 video input channels with a maximum resolution of 3840 x 2160 pixels and a transmission speed of 64 Mbit/s. It offers continuous, event, manual, and scheduled recording modes, as well as live viewing and playback, with a maximum frame rate of 240 pps and support for 16 simultaneous viewers. It includes 8 Power over Ethernet (PoE) ports, 2 USB 2.0 ports, and a VGA output, along with a 3.5" SATA hard drive compatible with up to 12 TB of storage in a single bay. It supports H.264 and H.265 video formats, as well as AAC and G.711 μ-law audio, with on-screen display (OSD) for 15 registered users.
Specifications
Performance
- Video input channels: 8 channels
- Maximum resolution: 3840 x 2160 pixels
- Number of users: 15 user(s)
- On Screen Display (OSD): Yes
- Audio formats supported: AAC, G.711 μ-law
- Video formats supported: H.264, H.265
- Number of simultaneous viewers: 16
- Throughput data rate: 64 Mbit/s
- Maximum frame rate: 240 fps
- Recording modes: Continuous, Event, Manual, Schedule
- Display modes: Live view, Playback
Hard drive
- Number of HDDs supported: 1
- Maximum storage capacity: 12 TB
- HDD interface: SATA
- HDD size: 3.5"

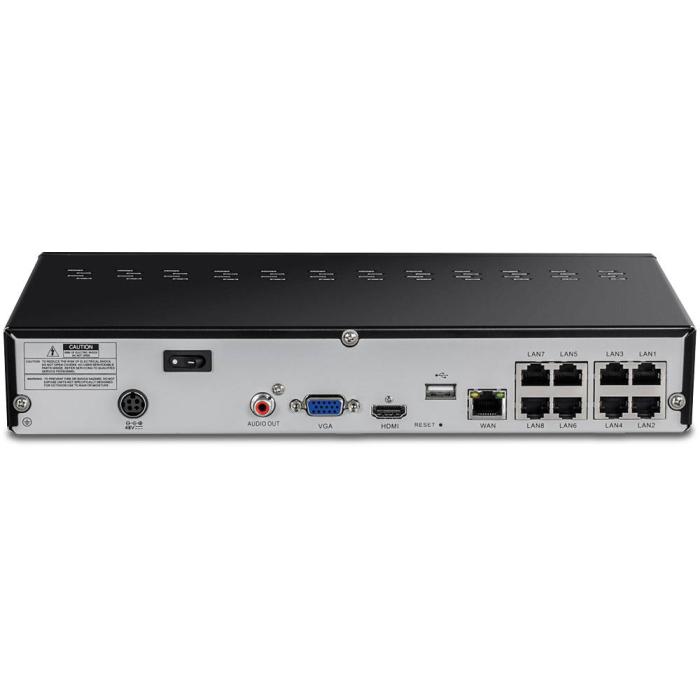

Ports & interfaces
- Ethernet LAN (RJ-45) ports: 8
- Power over Ethernet (PoE): Yes
- Power over Ethernet (PoE) ports quantity: 8
- Ethernet WAN: Yes
- HDMI output: Yes
- HDMI ports quantity: 1
- VGA (D-Sub) output ports: 1
- USB 2.0 ports quantity: 2
- Audio RCA outputs: 1
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
- Supported network protocols: IPv4, UDP, TCP, ONVIF, v2.2 DHCP, NTP, DDNS, SMTP, FTP, SNMP, v2 HTTP, UPnP, RTSP, RTP, RTCP
Features
- Rack mounting: Yes
- On/off switch: Yes
- Product colour: Black
- Certification: CE, FCC
Power
- Power consumption (max): 6 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Output current: 1.5 A
- Output voltage: 48 V
- Power over Ethernet (PoE) power per port: 7 W
- Total Power over Ethernet (PoE) budget: 56 W
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 0 - 80%
Technical details
- Warranty period: 2 year(s)
Weight & dimensions
- Width: 300 mm
- Depth: 227 mm
- Height: 53 mm
- Weight: 1 kg

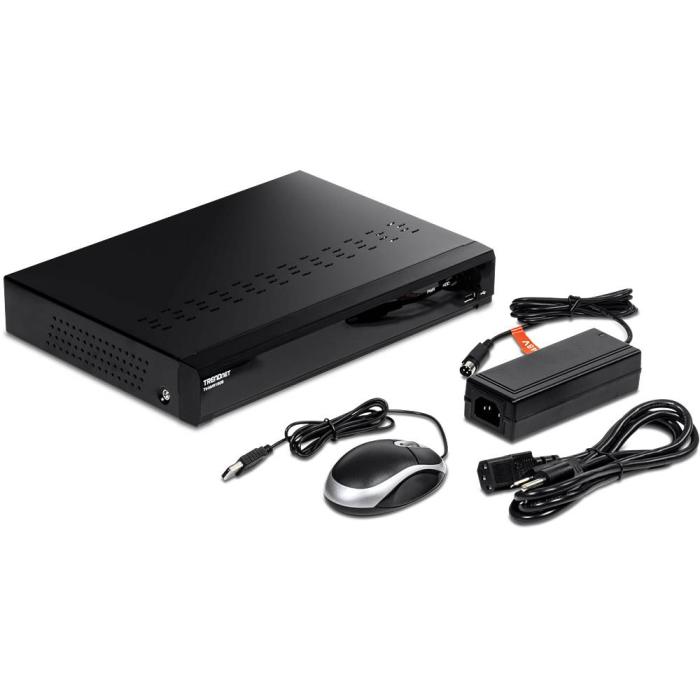

Packaging content
- AC adapter included: Yes
- Quick installation guide: Yes
