Description

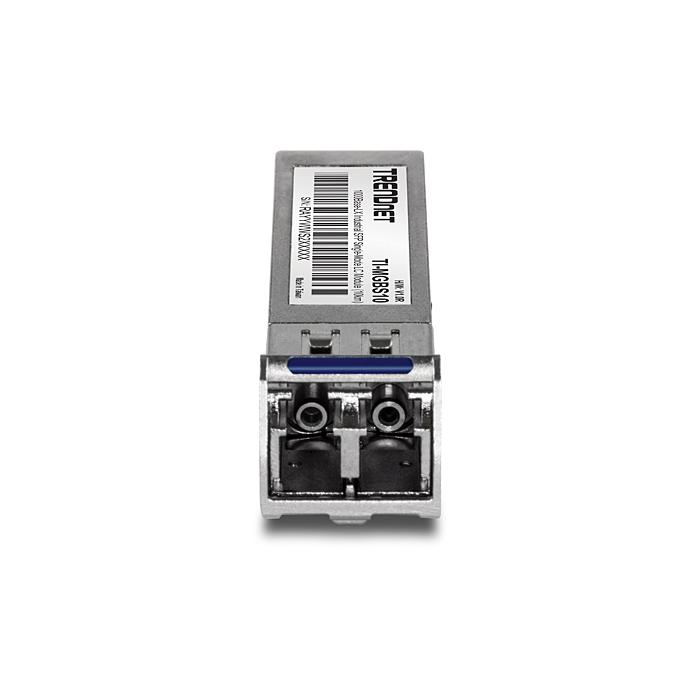

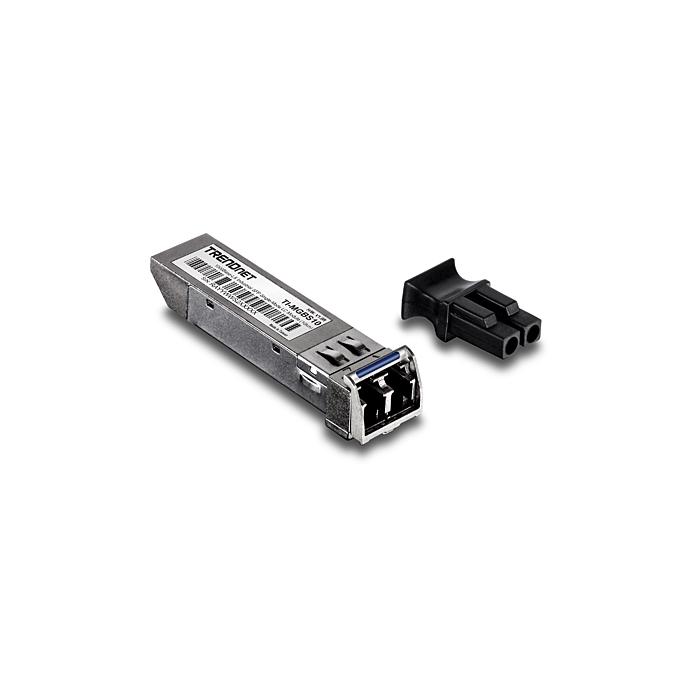

Trendnet TI-MGBS10 network transceiver module, in its grey finish with metal housing, allows you to add single-mode fibre optic connectivity to your network equipment. With an SFP LX interface and LC connector, this transceiver achieves a data transfer rate of 1250 Mbit/s in full-duplex mode, covering distances of up to 10 kilometres thanks to its 1310 nm wavelength. Compatible with IEEE 802.3, 802.3u and 802.3z standards, it features one fibre port and one Ethernet RJ-45 port, and supports hot plugging for easy installation. Its power consumption is only 1 W and it operates over a wide temperature range, from -40 to 85 °C, with MSA, FCC and CE certifications.
Specifications
Performance
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 1250 Mbit/s
- Interface type: SFP
- Single-mode fiber (SMF) supported: Yes
- Fiber optic connector: LC
- SFP transceiver standard: LX
- Maximum transfer distance: 10000 m
- Wavelength: 1310 nm
- Networking standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z
- Ethernet LAN (RJ-45) ports: 1
- Duplex system: Full
- Fiber ports quantity: 1
Features
- Product colour: Grey
- Housing material: Metal
- Hot-Plug support: Yes
Power
- Power consumption (typical): 1 W
Certificates
- Certification: MSA FCC CE
Operational conditions
- Operating temperature (T-T): -40 - 85 °C
Weight & dimensions
- Width: 13 mm
- Depth: 57 mm
- Height: 8.5 mm
- Weight: 19 g
Packaging content
- Quantity per pack: 1 pc(s)
Other features
- RX sensitivity: -23 dB
Logistics data
- Harmonized System (HS) code: 85369010
