Description

5 GHz / 867 Mbps, 3x Gigabit LAN, 12V DC / 24V Passive PoE, 224 x 79 x 60 mm

Specifications

Features


  • 2.4 GHz: No
  • 5 GHz: Yes
  • 6 GHz: No
  • Maximum data transfer rate: 867 Mbit/s
  • Maximum data transfer rate (5 GHz): 867 Mbit/s
  • Ethernet LAN data rates: 10, 100, 1000 Mbit/s
  • Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n
  • Cabling technology: 10/100/1000Base-T(X)
  • MIMO: Yes
  • MIMO type: Multi User MIMO
  • VLAN support: Yes
  • Rate limiting: Yes
  • Quality of Service (QoS) support: Yes
  • BeamForming: Yes
  • Transmitting power (CE): <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz band3, EIRP)
  • Transmitting power (FCC): <22dBm (5 GHz band1/4)

Security


  • Security algorithms: SNMP, SNMPv2, SNMPv3, SSH
  • MAC address filtering: Yes
  • Remote Authentication Dial-In User Service (RADIUS): Yes
  • Access Control List (ACL): Yes

Management features


  • Web-based management: Yes
  • Syslog: Yes

Ports & interfaces

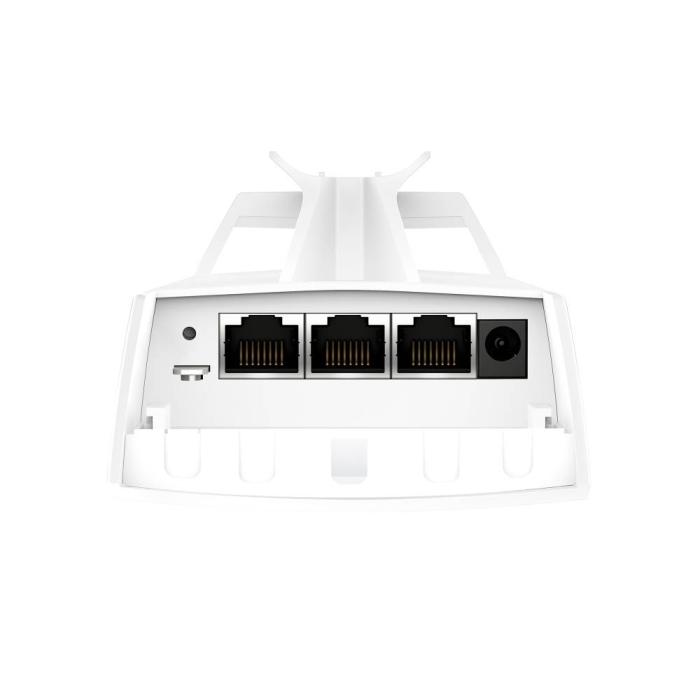

  • Ethernet LAN (RJ-45) ports: 3

Power


  • Power over Ethernet (PoE): Yes
  • Power over Ethernet (PoE) type supported: Passive PoE
  • DC voltage range: 12 V

Design


  • Placement: Pole
  • Product colour: White
  • Reset button: Yes
  • LED indicators: Yes

Antenna


  • Antenna type: Internal
  • Antenna direction type: Directional
  • Antenna features: Integrated antenna
  • Antenna gain level (max): 11 dBi
  • Polarization: Dual polarization

Certificates


  • Certification: CE, FCC, RoHS

Weight & dimensions


  • Width: 224 mm
  • Depth: 79 mm
  • Height: 60 mm
  • Weight: 330.9 g

Packaging content


  • Quick start guide: Yes

Operational conditions


  • Operating relative humidity (H-H): 10 - 90%
  • Operating temperature (T-T): -40 - 70 °C
  • Storage temperature (T-T): -40 - 70 °C
  • Storage relative humidity (H-H): 5 - 90%
