Description

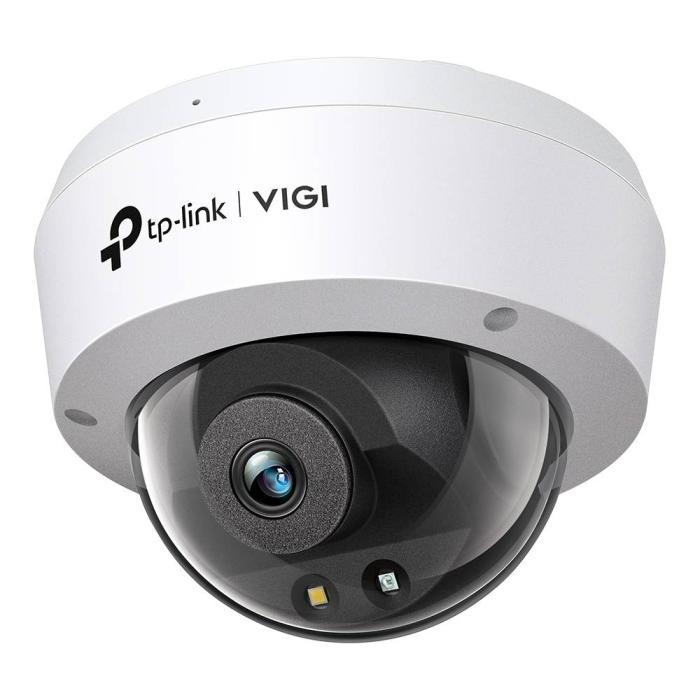

The TP-Link VIGI C230 camera, in a white dome format for ceiling mounting, offers a resolution of 2304 x 1296 pixels for indoor and outdoor surveillance. Its plastic housing with IP67 certification and IK10 code makes it resistant to water and impacts, while the day/night mode and wide dynamic range (WDR) improve capture in difficult lighting conditions. With wired connectivity and a diagonal field of view of 106.9°, the lens allows a pan range of 0 to 360° to cover wide areas. This model complies with CE, BSMI, VCCI and ONVIF certifications, and operates with a minimum illumination of 0.005 lx.
Specifications
Performance
- Type: IP security camera
- Placement supported: Indoor & outdoor
- Connectivity technology: Wired
- Wide Dynamic Range (WDR): Yes
- Day/night mode: Yes
- Certification: CE/BSMI/VCCI/ONVIF
Design
- Form factor: Dome
- Mounting type: Ceiling
- Product colour: White
- Housing material: Plastic
- Protection features: Waterproof
- International Protection (IP) code: IP67
- IK code: IK10
Camera
- Camera pan control: Yes
- Minimum illumination: 0.005 lx
- Lens viewing angle, horizontal: 89.1°
- Lens viewing angle, vertical: 45.1°
- Lens viewing angle, diagonal: 106.9°
- Pan range: 0 - 360°
Image sensor
- Number of sensors: 1
- Optical sensor size: 25.4 / 2.8 mm (1 / 2.8")
- Progressive scan: Yes
- Sensor type: CMOS
Panoramic camera
- Digital Wide Dynamic Range (DWDR) (panoramic camera): Yes
Lens system
- Number of lenses: 1
- Lens diameter: 4 mm
- Maximum aperture number: 1.6
Night vision
- Night vision: Yes
- Night vision distance: 30 m
- B/W night vision distance: 30 m
- LED type: IR
- Infra-red wavelength: 850 nm
Video
- Maximum resolution: 2304 x 1296 pixels
- Total megapixels: 3 MP
- Video compression formats: H.264, H.264+, H.265, H.265+
- Video streaming: Yes
- Noise reduction: Yes
- Noise reduction technology: 3D noise reduction
- Image quality adjustment: Brightness, Contrast, Mirror, Saturation
- Privacy masking: Yes
- Bit rate: 64 Kbps to 4 Mbps
- Back Light Compensation (BLC): Yes
- Highlight Compensation (HLC): Yes
- Smart IR: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet
- Networking standards: IEEE 802.3af, IEEE 802.3at
- Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Storage
- Built-in HDD: No
Security
- Password protection: Yes
- Mirror: Yes
- Password reset via email: Yes
- Digest authentication: Yes
Power
- Power source type: DC, PoE
- DC output voltage: 12
Operational conditions
- Operating temperature (T-T): -30 - 60 °C
Weight & dimensions
- Width: 115 mm
- Depth: 86 mm
- Height: 115 mm
Features
- Basic event: Motion Detection, Camera Tampering Detection, Exception (Illegal Login)
Packaging content
- Number of cameras: 1
