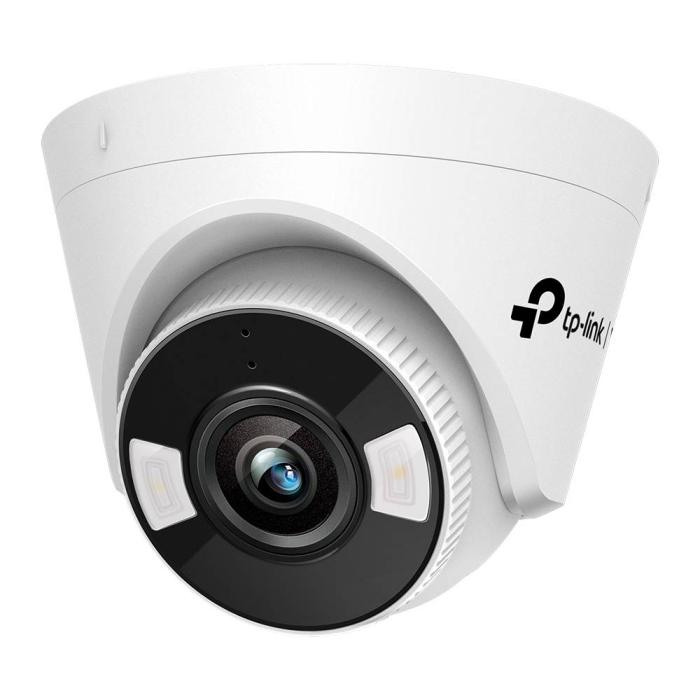

Name: TP-Link VIGI 5MP Full-Color Turret Network Camera
Brand: TP-LINK
Availability: OutOfStock

TP-Link VIGI 5MP Full-Color Turret Network Camera

Not avaliable

TP-Link VIGI 5MP Full-Color Turret Network Camera. More info

Amount

Brand: TP-LINK

SKU: 102462 PRC: 460236 EAN: 4895252503036 PN: VIGI C450(2.8MM)

Description

1/2.7” Progressive Scan CMOS, 2.8 mm: F1.6, 2880 x 1620 px, IR LED 30m 850nm, 1x RJ45 10/100M, D123x84 mm

Specifications

Performance

Type: IP security camera
Placement supported: Indoor
Connectivity technology: Wired
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Built-in light: Yes
Dynamic range: 120 dB
Certification: CE, NTRA, VCCI, KC, BSMI, FCC, IC

Design

Form factor: Dome
Mounting type: Ceiling
Product colour: Black, White
Housing material: Plastic

Camera

Minimum illumination: 0.005 lx
Field of view (FOV) angle: 128°
Lens viewing angle, horizontal: 109°
Lens viewing angle, vertical: 57°
Lens viewing angle, diagonal: 128°
Tilt angle range: 0 - 85°
Pan range: 0 - 360°
Camera shutter speed: 1/3 - 1/10000 s
Number of Privacy masking areas: 4

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 2.7 mm (1 / 2.7")
Progressive scan: Yes
Sensor type: CMOS

Panoramic camera

Digital Wide Dynamic Range (DWDR) (panoramic camera): Yes

Lens system

Number of lenses: 1
Detect distance: 64 m
Observe distance: 27 m
Recognize distance: 13 m
Maximum aperture number: 1.6
Identify distance: 6 m
Fixed focal length: 2.8 mm

Night vision

Night vision: Yes
Night vision distance: 30 m
Infra-red wavelength: 850 nm

Video

Maximum resolution: 2880 x 1620 pixels
Total megapixels: 5 MP
Video formats supported: H.264, H.264+, H.265, H.265+
Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2688 x 1520, 2880 x 1620
Supported video modes: 720p, 1080p, 2560p, 2880p
Video recording: Yes
Frame rate: 30 fps
Video streaming: Yes
Noise reduction: Yes
Bit rate control: Variable Bit Rate (VBR)
Bit rate: 256 Kbps - 6 Mbps
Back Light Compensation (BLC): Yes
Highlight Compensation (HLC): Yes
Region of Interest (ROI) encoding: Yes
Smart IR: Yes

Audio

Sample rate: 8 kHz
Signal-to-Noise Ratio (SNR): 52 dB
Built-in microphone: Yes
Voice codecs: G.711

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Supported network protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
Wi-Fi: No
Bluetooth: No

Storage

Built-in HDD: No
Compatible memory cards: MicroSD (TransFlash)
Maximum memory card size: 256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
DC-in jack: Yes

Management features

Reset button: Yes

Power

Power source type: DC
Power consumption (max): 9 W

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -40 - 60 °C
Operating relative humidity (H-H): 0 - 95%
Storage relative humidity (H-H): 0 - 95%

Weight & dimensions

Height: 84 mm
Diameter: 12.3 cm
Weight: 240 g

Packaging data

Package weight: 400 g
Package type: Box

Packaging content

Number of cameras: 1
