Description

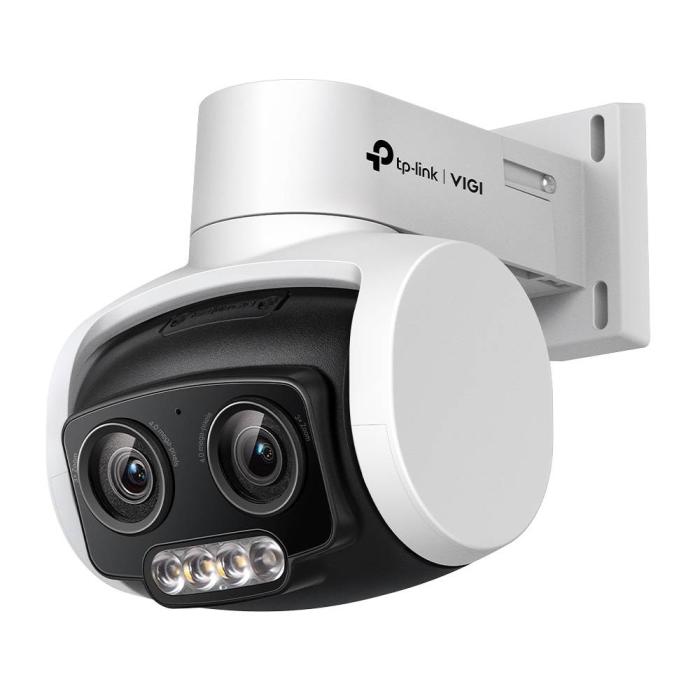

The TP-Link VIGI C540V is an IP security camera with 2560 x 1440 pixel resolution, designed for ceiling mounting and suitable for both indoor and outdoor use thanks to its white and black plastic housing with IP66 certification. It features PTZ control with a pan range of 0 to 332 degrees and a tilt angle of 0 to 120 degrees, with speeds of 55 and 40 degrees per second respectively, enabling versatile tracking. Its CMOS sensor offers a diagonal field of view of 100 degrees, horizontal of 84, and vertical of 46, covering wide surveillance areas. Additionally, it comes with wired connectivity and pan/tilt control for precise handling from the interface.
Specifications
Performance
- Type: IP security camera
- Placement supported: Indoor & outdoor
- Connectivity technology: Wired
- PTZ control: Yes
- Certification: CE, EAC, UKCA, RCM, Triman, BSMI, VCCI, FCC, IC
Design
- Mounting type: Ceiling
- Product colour: White, Black
- Housing material: Plastic
- International Protection (IP) code: IP66
Camera
- Camera pan control: Yes
- Camera tilt control: Yes
- Lens viewing angle, horizontal: 84°
- Lens viewing angle, vertical: 46°
- Lens viewing angle, diagonal: 100°
- Tilt angle range: 0 - 120°
- Tilt speed: 40 °/sec
- Pan range: 0 - 332°
- Pan speed: 55 °/sec
Image sensor
- Number of sensors: 1
- Optical sensor size: 25.4 / 3 mm (1 / 3")
- Sensor type: CMOS
Lens system
- Zoom capability: Yes
- Digital zoom: 3x
- Number of lenses: 1
- Focal length range: 4 - 12 mm
- Maximum aperture number: 1.6
Night vision
- Night vision: Yes
- Night vision distance: 30 m
- LED type: IR
- Number of illumination LEDs: 1
- Infra-red wavelength: 850 nm
Video
- Maximum resolution: 2560 x 1440 pixels
- Total megapixels: 4 MP
- Video formats supported: H.264, H.264+, H.265, H.265+
- Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1280, 2304 x 1296, 2560 x 1440
- Supported video modes: 720p, 1080p, 1440p
- Video recording: Yes
- Frame rate: 30 fps
- Bit rate control: Constant Bit Rate (CBR), Variable Bit Rate (VBR)
- Bit rate: 256 Kbps - 4 Mbps
Network
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet
- Wi-Fi: No
- Bluetooth: No
Storage
- Built-in HDD: No
- Card reader integrated: Yes
- Compatible memory cards: MicroSD (TransFlash)
- Maximum memory card size: 256 GB
Ports & interfaces
- Ethernet LAN (RJ-45) ports: 1
Power
- Power source type: PoE
- Power consumption (typical): 2.9 W
- Power consumption (max): 14 W
- DC output voltage: 12
Operational conditions
- Operating temperature (T-T): -30 - 60 °C
- Storage temperature (T-T): -40 - 60 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 136 mm
- Depth: 139 mm
- Height: 107 mm
- Weight: 430 g
Packaging data
- Package weight: 660 g
- Package type: Box
Packaging content
- Number of cameras: 1
- Manual: Yes
