Description

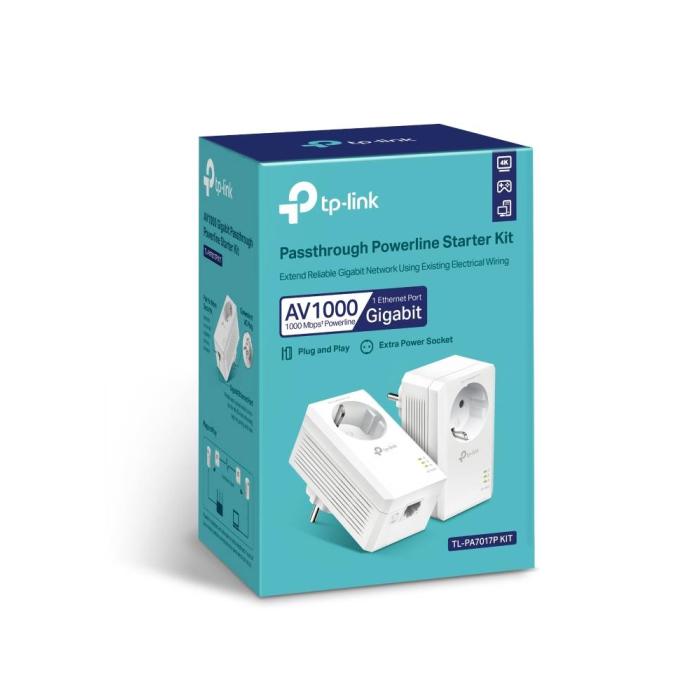

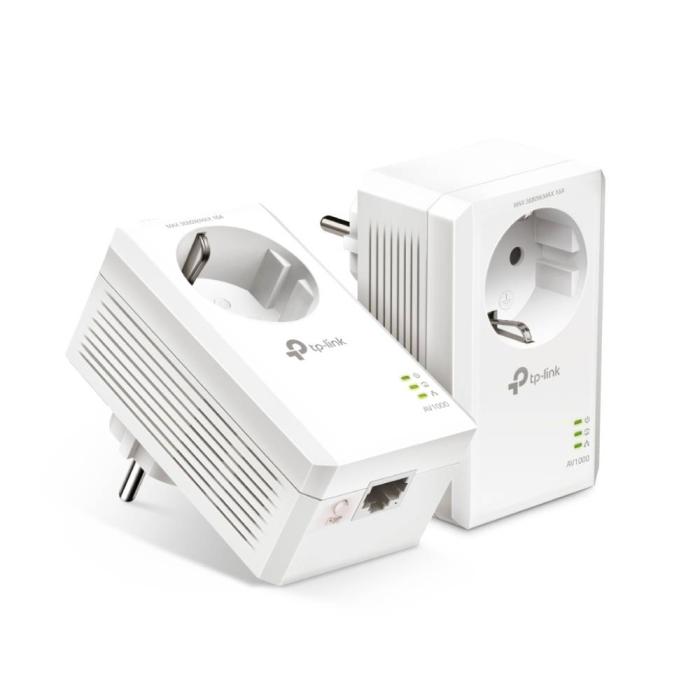

Connect your devices to the mains with the TP-Link TL-PA7017P KIT PowerLine adapter, presented in white and in a pack of 2 units. This network adapter reaches a maximum data transfer speed of 1000 Mbit/s and follows the HomePlug AV2 standard along with the IEEE 1901, IEEE 802.3, IEEE 802.3ab and IEEE 802.3u standards. It incorporates an RJ-45 Ethernet LAN port with Gigabit Ethernet interface and speeds of 10, 100 and 1000 Mbit/s, as well as an integrated socket with Type E / F connector. Its Plug and Play operation allows it to be connected and used, and OFDM modulation together with 128-bit AES encryption protect the transmission. It has an encryption button to reinforce network security. It reaches a maximum operating distance of 300 m and consumes 2.3 W, with a consumption of 0.5 W when idle. Its dimensions are 58 x 95 x 42 mm (width x height x depth) and it has CE certification.
Specifications
Performance
- Maximum data transfer rate: 1000 Mbit/s
- Ethernet LAN: Yes
- Ethernet LAN interface type: Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
- Ethernet LAN (RJ-45) ports: 1
- Wi-Fi: No
- Networking standards: IEEE 1901, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
- Power plug: Type E / F
- Built-in power socket: Yes
- PowerLine standard: HomePlug AV2
- Modulation: OFDM
- Security algorithms: 128-bit AES
- Maximum operating distance: 300 m
- Encryption button: Yes
- Plug and Play: Yes
Power
- Power consumption (typical): 2.3 W
- Power consumption (standby): 0.5 W
Design
- LED indicators: LAN, PLC, Power
- Product colour: White
- Certification: CE
System requirements
- Windows operating systems supported: Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
- Linux operating systems supported: Yes
- Mac compatibility: Yes
- Mac operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 58 mm
- Depth: 42 mm
- Height: 95 mm
Certificates
- Compliance certificates: RoHS
Packaging data
- Package width: 190 mm
- Package depth: 136 mm
- Package height: 100 mm
- Package weight: 580 g
Packaging content
- Quantity per pack: 2 pc(s)
- Quick installation guide: Yes
- Cables included: LAN (RJ-45)
Logistics data
- Harmonized System (HS) code: 85171800
