Description

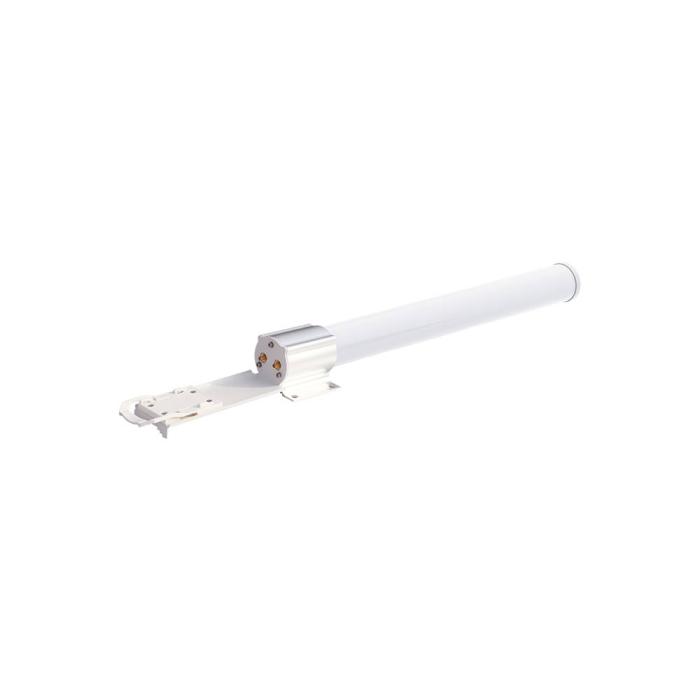

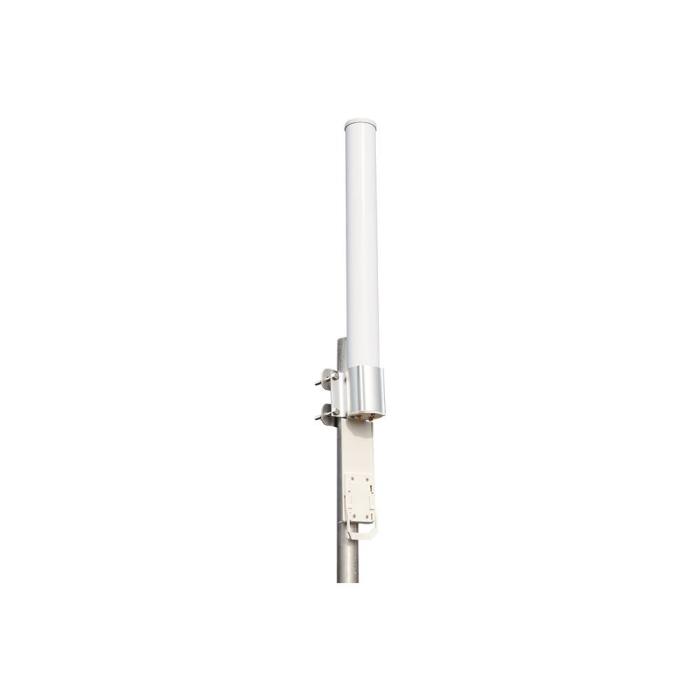

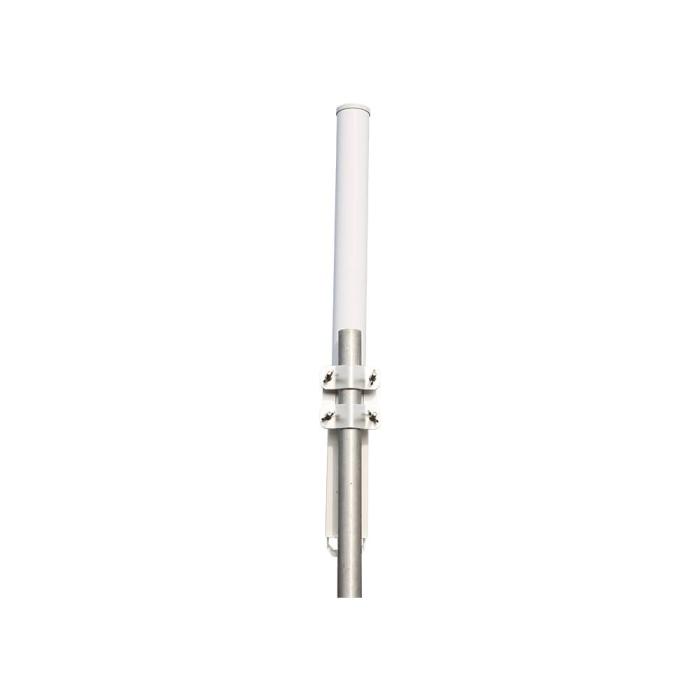

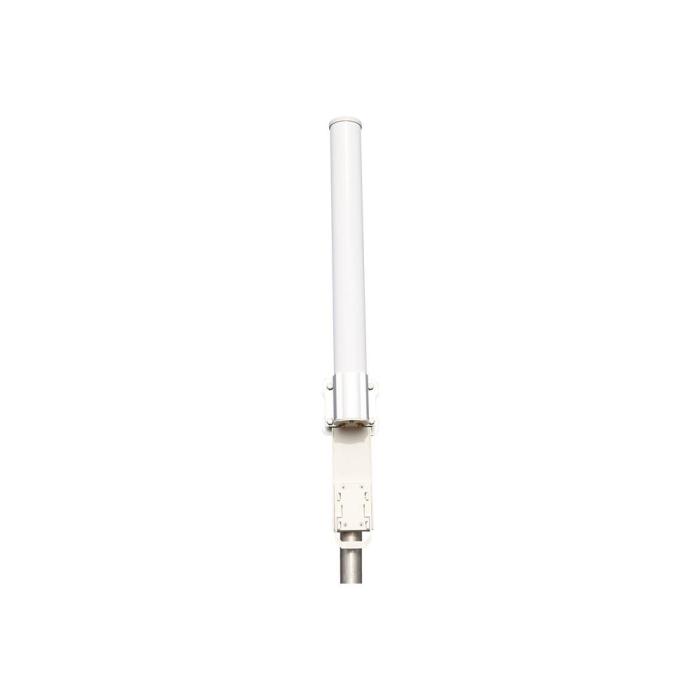

Omnidirectional Tenda ANT12-5G360 antenna with a maximum gain of 12 dBi, designed to operate in the 5.1 to 5.85 GHz band with a horizontal and vertical beamwidth of 360°. Mast-mounted, it features vertical polarisation, RP-SMA connector and an impedance of 50 Ω, withstanding wind speeds of up to 200 km/h and offering a maximum operating distance of 1000 metres. Its 25 dB isolation and VSWR ≤ 2.0 ensure stable performance in relative humidity conditions from 10% to 90%, with a maximum power consumption of 20 W. The white finish facilitates outdoor integration, with a fixed vertical tilt of 0°.
Specifications
Performance
- Frequency band: 5.1 - 5.85 GHz
- Gain: 11 / 12 dBi
- Impedance: 50 Ω
- Horizontal beam width: 360°
- Vertical beam width: 360°
- Antenna gain level (max): 12 dBi
Features
- Antenna type: Omni-directional antenna
- Antenna connector type: RP-SMA
- Polarization: Vertical polarization
- Voltage Standing Wave Ratio (VSWR): ≤ 2.0
- Product colour: White
- Survival wind speed: 200 km/h
- Maximum operating distance: 1000 m
- Mounting: Pole
- Downtilt: 0°
- Isolation: 25 dB
Power
- Power consumption (max): 20 W
Operational conditions
- Operating temperature (T-T): -55 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
Weight & dimensions
- Height: 870 mm
- Diameter: 7 cm
