StarTech.com U.3 to PCIe Adapter Card, PCIe 4.0 x4 Adapter For 2.5'' U.3 NVMe SSDs, SFF-TA-1001 PCI Express Add-in Card for Desktops/Servers, TAA Compliant - OS Independent
More info
Brand: STARTECH.COM
49.00 €
40.50 €
without VAT
Stock available: 8 units.
Get it
on the
September 8
/
September 9
SKU:
101743
PRC:
452239
EAN:
65030899000
PN:
PEX4SFF8639U3
Description

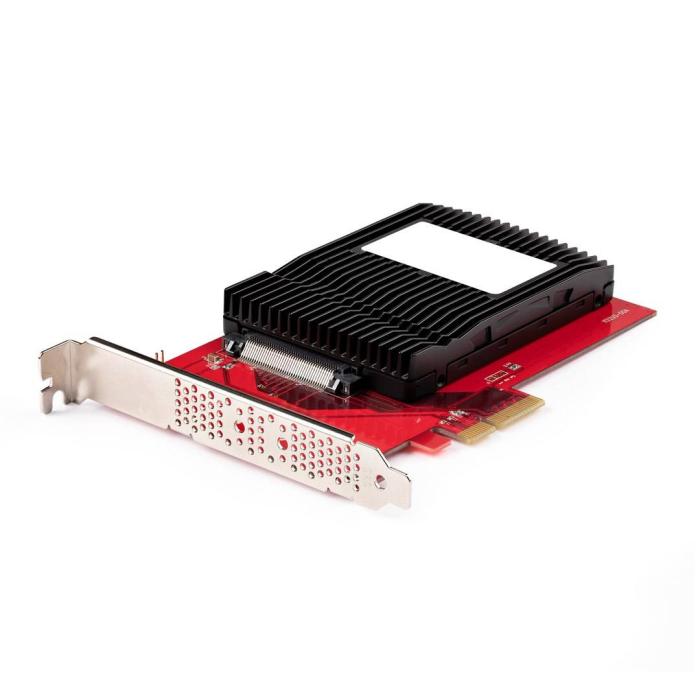

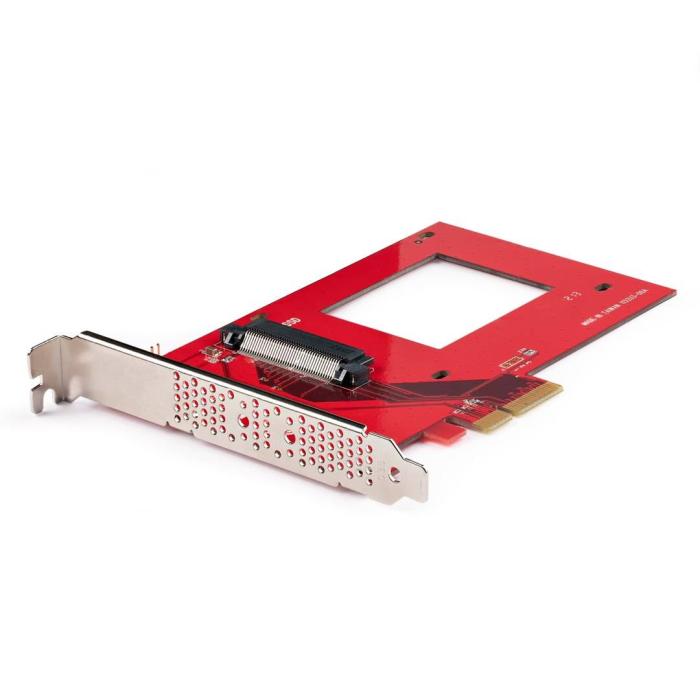

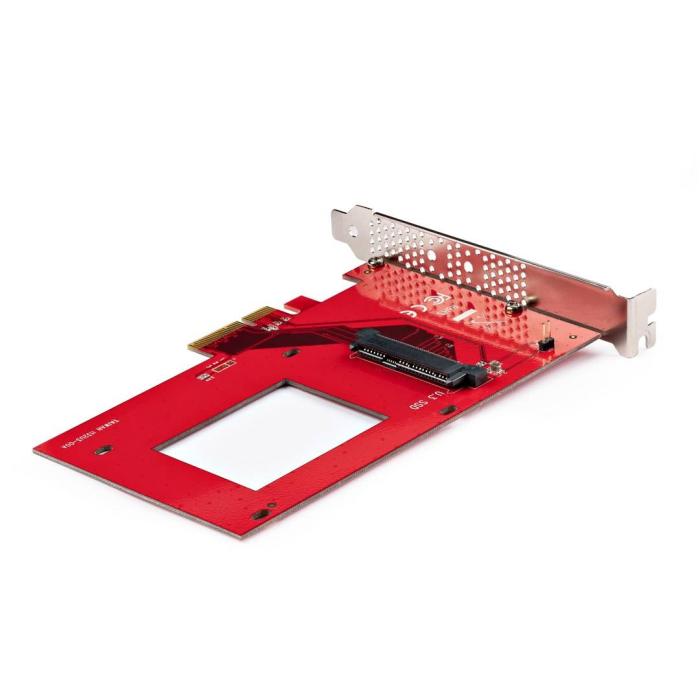

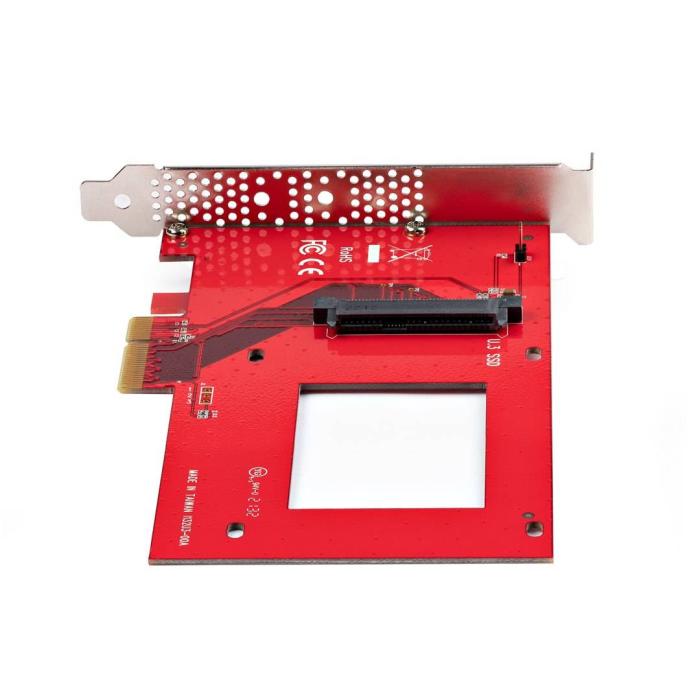

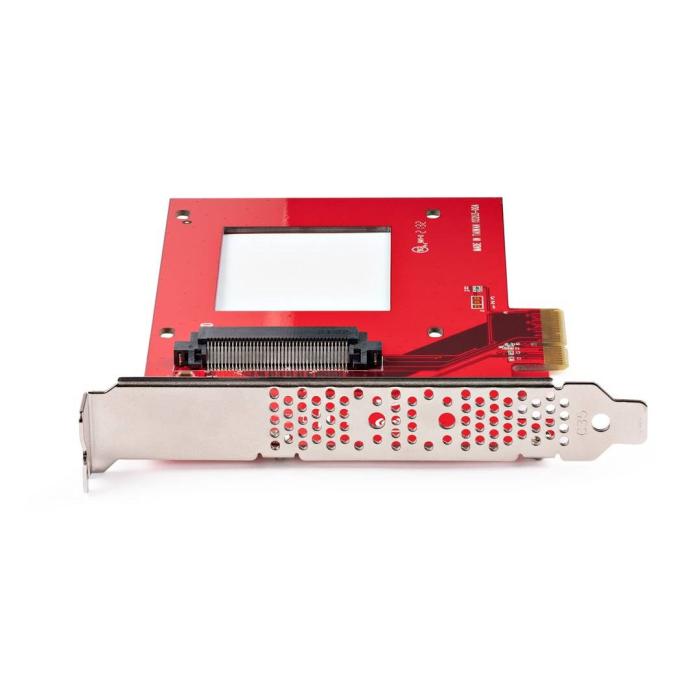

The StarTech.com U.3 to PCIe adapter card, in red, allows you to connect 2.5-inch U.3 NVMe SSDs to a PCIe 4.0 x4 slot via a U.3 output interface and PCIe host. It is an internal expansion card with activity and power LED indicators, compatible with Plug and Play technology for hassle-free installation. Its design supports storage drives with heights of 5, 7, 9.5, 12.5 and 15 mm, and it features a mean time between failures of over 21 million hours. Operating conditions include temperatures from 0 to 60 °C and relative humidity from 20 to 80 percent, ensuring reliable performance.
Specifications
Ports & interfaces
- Host interface: PCIe
- Output interface: U.3
Design
- Internal: Yes
- Product colour: Red
- LED indicators: Activity, Power
- Mean time between failures (MTBF): 21693912 h
- Hot-swap: No
Features
- Plug and Play: Yes
Operational conditions
- Operating temperature (T-T): 0 - 60 °C
- Storage temperature (T-T): -40 - 80 °C
- Operating relative humidity (H-H): 20 - 80%
System requirements
- Supported storage drive heights: 5, 7, 9.5, 12.5, 15 mm
Weight & dimensions
- Width: 90 mm
- Depth: 154 mm
- Height: 1.5 mm
- Weight: 62 g
Packaging data

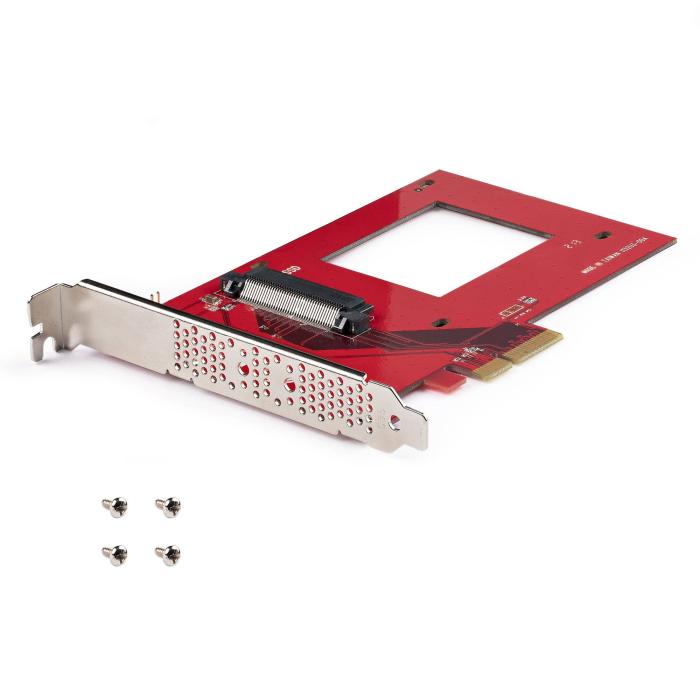

- Screws included: Yes
- Quick installation guide: Yes
- Package width: 215 mm
- Package depth: 155 mm
- Package height: 30 mm
- Package weight: 130 g
Logistics data
- Products per master (outer) case: 60 pc(s)
- Master (outer) case width: 460 mm
- Master (outer) case length: 340 mm
- Master (outer) case height: 490 mm
