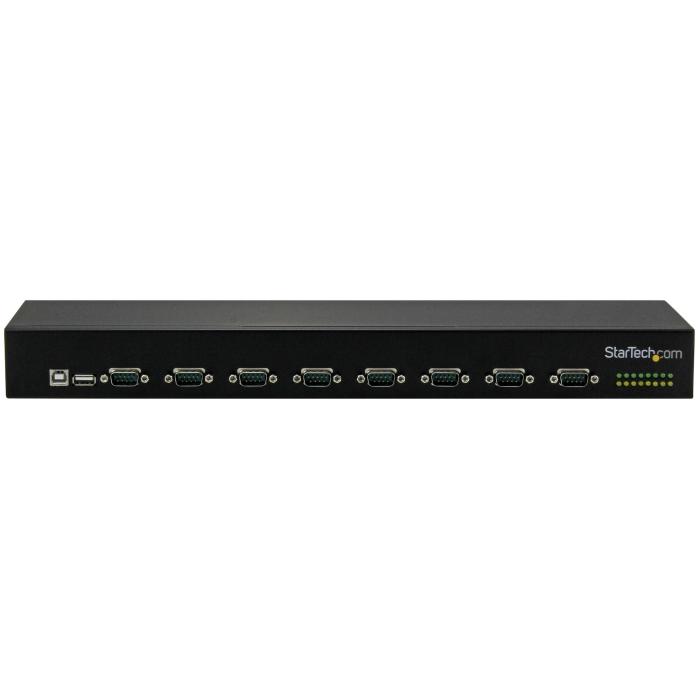

StarTech.com 8-Port USB-to-Serial Adapter Hub
More info
Brand: STARTECH.COM
307,00 €Stock available: 0 units.
Unavailable
SKU:
77462
PRC:
137056
EAN:
65030866705
PN:
ICUSB23208FD
Description
StarTech.com 8-Port USB-to-Serial Adapter Hub, USB 2.0, Serial, Black, Aluminium, 36 W, 100 - 240 V
Specifications
Ports & interfaces
- Host interface: USB 2.0
- Hub interfaces: Serial
- USB 2.0 ports quantity: 1
- Ports quantity: 8
- RS-232 ports: 8
- Terminal block port: Yes
- DC-in jack: Yes
Features
- Product colour: Black
- Housing material: Aluminium
- LED indicators: Yes
Power
- Power consumption (max): 36 W
- Input voltage: 100 - 240 V
- Input current: 1.5 A
- Output voltage: 12 V
- Output current: 3 A
- Power plug type: Type B
System requirements
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Ma
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
- Other operating systems supported: Windows XP Embedded
Weight & dimensions
- Width: 120 mm
- Depth: 430 mm
- Height: 45 mm
- Weight: 1.36 kg
Packaging data
- Package width: 449 mm
- Package depth: 217 mm
- Package height: 64 mm
- Package weight: 2.1 kg

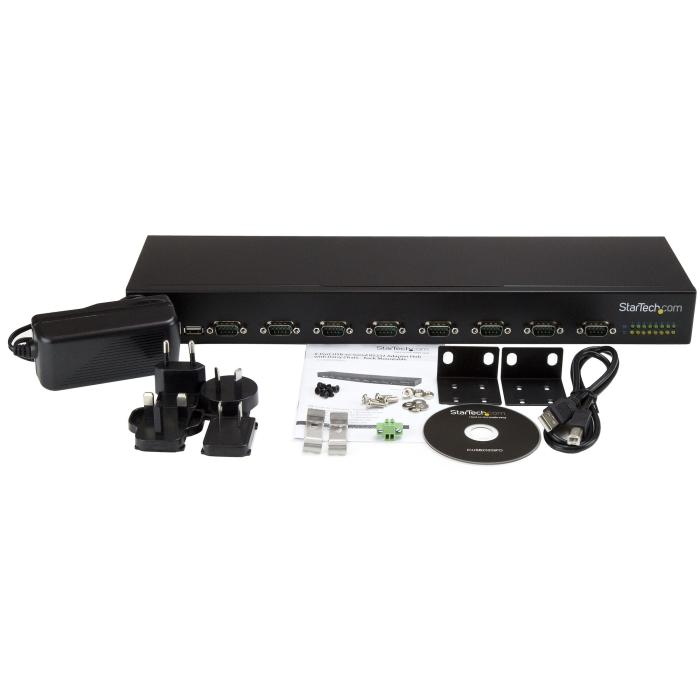

Packaging content
- Included power plug types: AU, EU, NA, UK
- Cables included: USB
- Terminal block included: Yes
- Quick installation guide: Yes
- DIN rail kit included: Yes
- Drivers included: Yes
Operational conditions
- Operating temperature (T-T): -40 - 85 °C
- Storage temperature (T-T): -65 - 150 °C
- Operating relative humidity (H-H): 20 - 80%
Performance
- Data bits: 7, 8
- Stop bits: 1, 2
- Parity bit: Even, Mark, No, Odd, Space
- FIFO (First In, First Out): 256 B
- Baud rate: 921.6 Kbit/s
- Mean time between failures (MTBF): 67114 h
Logistics data
- Master (outer) case width: 472 mm
- Master (outer) case length: 344 mm
- Master (outer) case height: 236 mm
- Products per master (outer) case: 5 pc(s)
- Harmonized System (HS) code: 84719000
Technical details
- Compliance certificates: CE, RoHS
Other features
- Chipset: FTDI - FT4232
