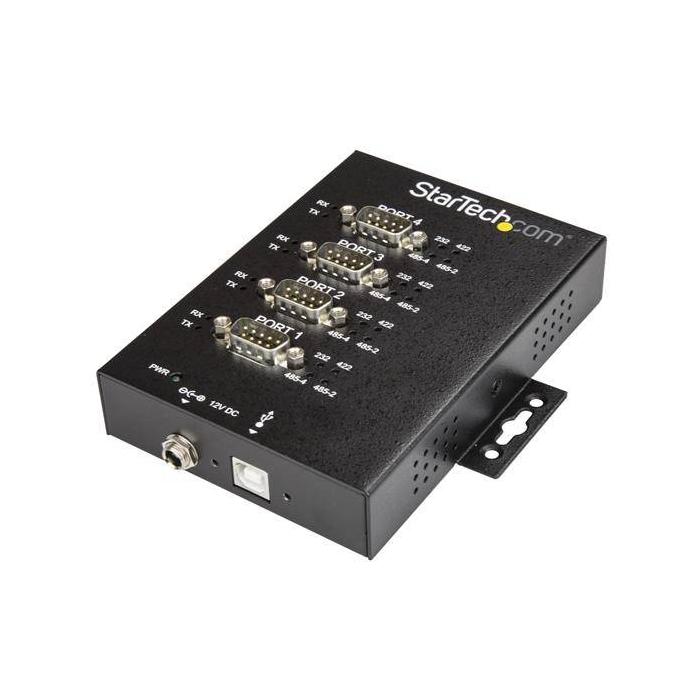

StarTech.com 4 Port Serial Hub USB to RS232/RS485/RS422 Adapter - Industrial USB 2.0 to DB9 Serial Converter Hub - IP30 Rated - Din Rail Mountable Metal Serial Hub - 15kV ESD Protection
More info
Brand: STARTECH.COM
308.70 €
255.12 €
without VAT
incl. 21 % VAT
Stock available: 9 units.
Get it
on the
October 20
/
October 21
SKU:
80670
PRC:
209596
EAN:
65030878562
PN:
ICUSB234854I
Description
Connect serial devices to your computer with the StarTech.com USB hub, a USB 2.0 to serial converter with four RS-232 ports. Its host interface is USB 2.0 Type-B and it offers four ports for linking serial devices. The housing is black steel and its dimensions are 116 x 25 x 128 mm (width x height x depth), with a weight of 382 g, so you can mount it on a DIN rail in industrial environments. It includes overload protection and 15 kV ESD protection, as well as power LED indicators to check the status of the device. The output current is 1 A with an output voltage of 12 V and N type plug. It is compatible with Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016 and Windows Server 2019, and also with Linux. Thanks to its Plug and Play function, you just need to connect it to start working.
Specifications
Ports & interfaces
- Host interface: USB 2.0 Type-B
- Hub interfaces: Serial
- Ports quantity: 4
- RS-232 ports: 4
Features
- Product colour: Black
- Housing material: Steel
- Surge protection: Yes
- LED indicators: Power
- Plug and Play: Yes
Power
- Output voltage: 12 V
- Output current: 1 A
- Power plug type: Type N
System requirements
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Ma
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Weight & dimensions
- Width: 116 mm
- Depth: 128 mm
- Height: 25 mm
- Weight: 382 g
Packaging data
- Package width: 165 mm
- Package depth: 240 mm
- Package height: 55 mm
- Package weight: 598 g
Packaging content
- Cables included: USB
- Manual: Yes
- DIN rail kit included: Yes
Operational conditions
- Operating temperature (T-T): 0 - 55 °C
- Storage temperature (T-T): -20 - 85 °C
- Operating relative humidity (H-H): 5 - 95%
Performance
- Data bits: 7, 8
- Stop bits: 1, 2
- Parity bit: Even, Mark, No, Odd, Space
- Baud rate: 921.6 Kbit/s
Sustainability
- Sustainability compliance: Yes
Logistics data
- Master (outer) case width: 410 mm
- Master (outer) case length: 420 mm
- Master (outer) case height: 280 mm
- Products per master (outer) case: 15 pc(s)
- Harmonized System (HS) code: 84719000
Technical details
- Compliance certificates: CE, RoHS
Other features
- Chipset: FTDI - FT4232H
