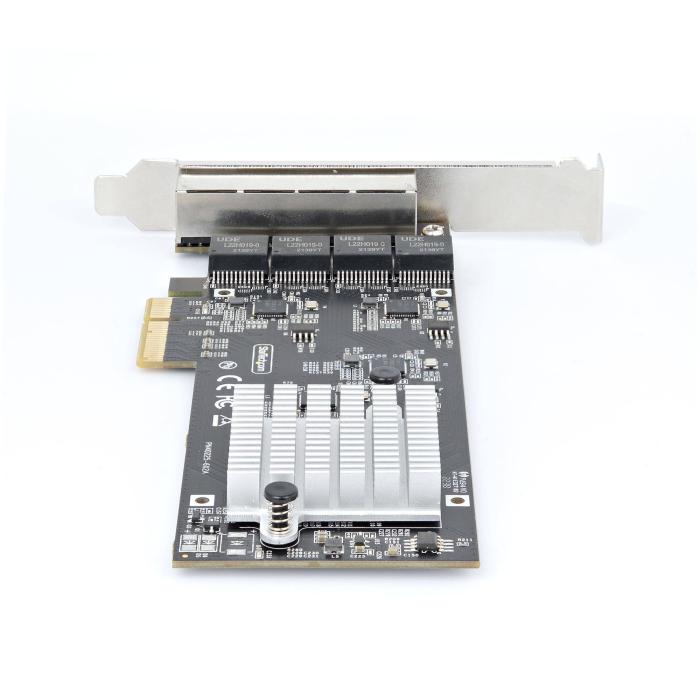

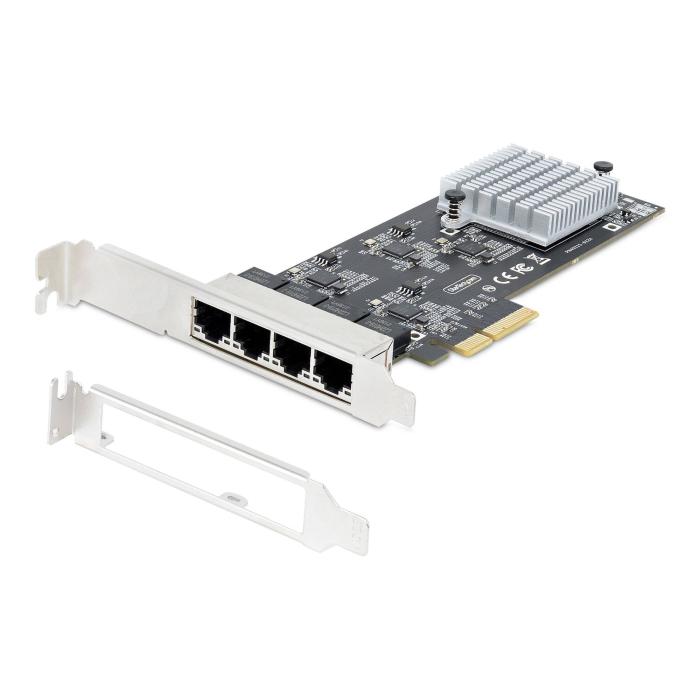

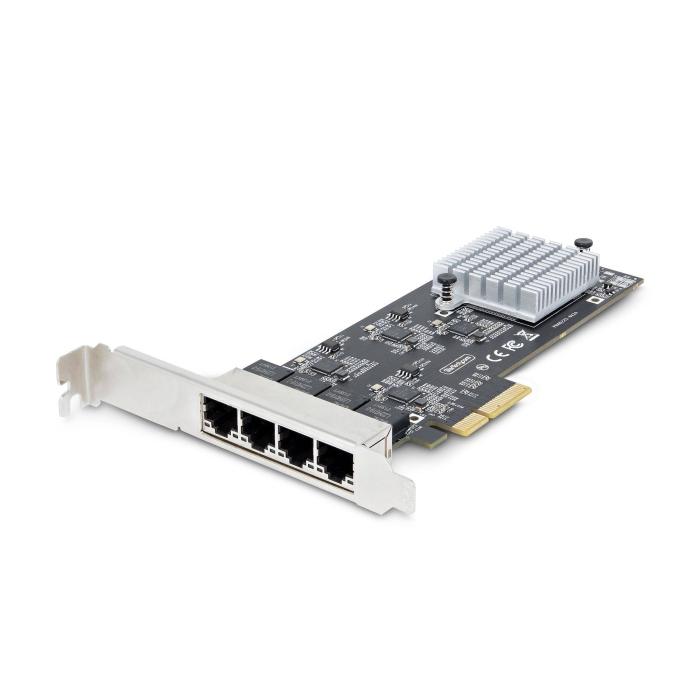

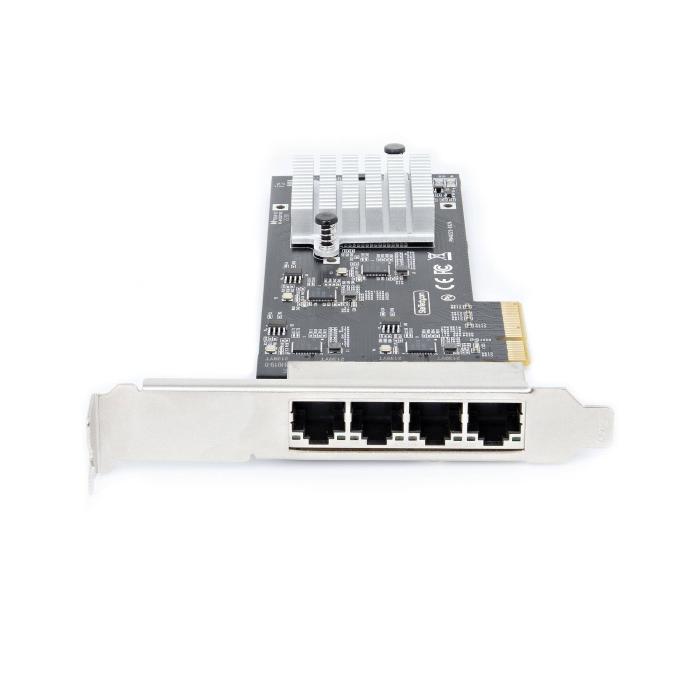

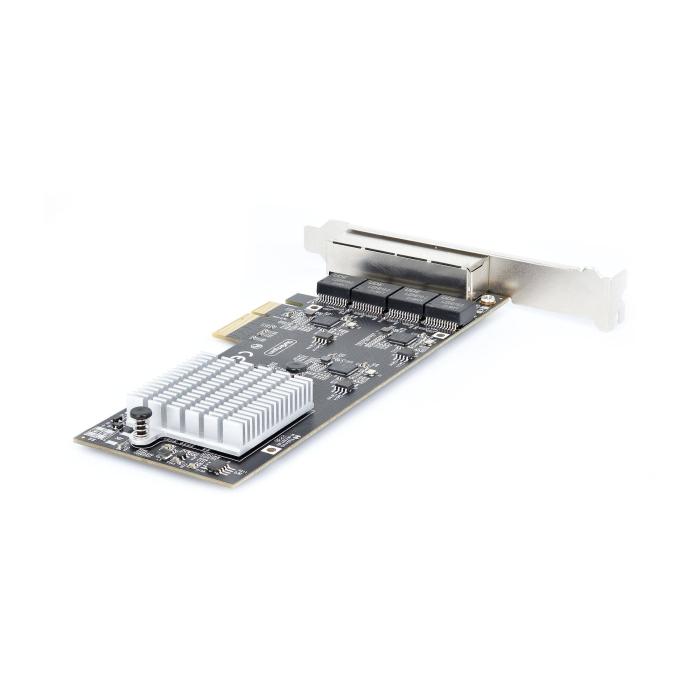

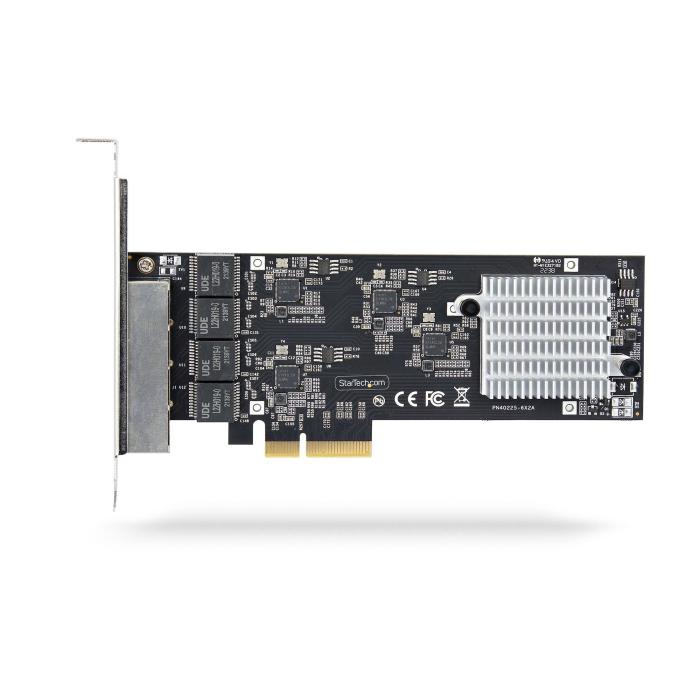

StarTech.com 4-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Quad-Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Ethernet Interface
More info
Brand: STARTECH.COM
225.40 €
186.28 €
without VAT
Stock available: 12 units.
Get it
on the
September 1
/
September 2
SKU:
100888
PRC:
443922
EAN:
65030898157
PN:
PR42GI-NETWORK-CARD
Description
Connect your desktop computer to high-speed networks with this StarTech.com PCI Express card, a four-port Ethernet LAN RJ-45 networking solution that achieves transfer speeds of 10, 100, 1000, 2000 and up to 2500 Mbit/s. This black network card incorporates the I225-V NIC controller and integrates via a PCI Express host interface with version 2.0, offering support for 9000 Jumbo Frames, VLAN tagging, quality of service (QoS) and full-duplex operation. The compatible copper Ethernet cabling technology is 10BASE-TX, 100BASE-TX, 1000BASE-T and 2500BASE-T, and includes the IEEE Auto MDIX function to simplify connection.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Ethernet
- Ethernet LAN (RJ-45) ports: 4
- PCI version: 2.0
Network
- Maximum data transfer rate: 2500 Mbit/s
- Networking standards: IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
- Ethernet LAN data rates: 10, 100, 1000, 2000, 2500 Mbit/s
- Copper ethernet cabling technology: 10BASE-TX, 100BASE-TX, 1000BASE-T, 2500BASE-T
- Wake-on-LAN ready: Yes
- Auto MDIX IEEE: Yes
- Full duplex: Yes
- Jumbo frames support: Yes
- Jumbo frames: 9000
- Quality of Service (QoS) support: Yes
- VLAN tagging: Yes
Design
- Component for: PC/Server
- Product colour: Black
- Internal: Yes
- Chipset: Intel I225-V
- LED indicators: Activity, Link
System requirements
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2019, Windows Server 2022
Operational conditions
- Operating temperature (T-T): 0 - 55 °C
- Storage temperature (T-T): -10 - 70 °C
- Operating relative humidity (H-H): 5 - 90%
Weight & dimensions
- Width: 180 mm
- Depth: 120 mm
- Height: 22 mm
- Weight: 100 g
Packaging data
- Low-profile bracket: Yes
- Package width: 170 mm
- Package depth: 142 mm
- Package height: 30 mm
- Package weight: 130 g
Packaging content
- Quick installation guide: Yes
Logistics data
- Master (outer) case width: 605 mm
- Master (outer) case length: 325 mm
- Master (outer) case height: 385 mm
- Products per master (outer) case: 80 pc(s)
