Ports & interfaces


  • Connectivity technology: Wired

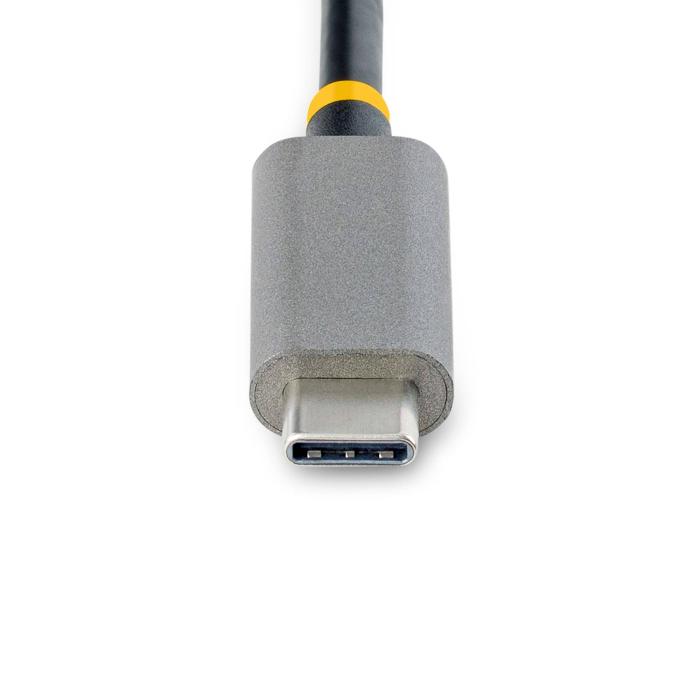

  • Host interface: USB 3.2 Gen 1 (3.1 Gen 1) Type-C
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
  • Microphone in: No

Network


  • Ethernet LAN: Yes
  • Ethernet LAN (RJ-45) ports: 1
  • Ethernet LAN data rates: 10, 100, 1000 Mbit/s
  • Networking standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Flow control support: Yes
  • Auto MDI/MDI-X: Yes
  • Full duplex: Yes
  • VLAN tagging: Yes

Performance


  • Card reader integrated: No
  • Product colour: Grey

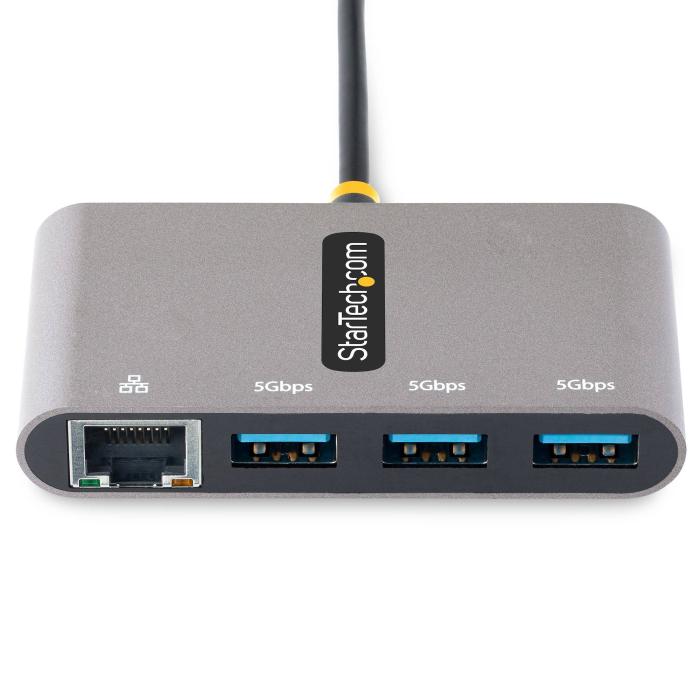

  • Hub interfaces: RJ-45, USB 3.2 Gen 1 (3.1 Gen 1) Type-A
  • LED indicators: Activity, Link
  • UASP support: Yes
  • Housing material: Plastic

Power


  • Power source type: USB

Software


  • Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
  • Mac operating systems supported: Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Ma
  • Linux operating systems supported: Yes
  • Other operating systems supported: Android

Operational conditions


  • Operating temperature (T-T): 0 - 45 °C
  • Storage temperature (T-T): -10 - 70 °C
  • Operating relative humidity (H-H): 10 - 85%

Sustainability


  • Sustainability compliance: Yes

Weight & dimensions


  • Width: 80 mm
  • Depth: 40 mm
  • Height: 14 mm
  • Weight: 37 g

Packaging data


  • Package width: 170 mm
  • Package depth: 142 mm
  • Package height: 30 mm
  • Package weight: 104 g

Technical details


  • Compliance certificates: CE, RoHS

Logistics data


  • Products per master (outer) case: 60 pc(s)
  • Master (outer) case width: 530 mm
  • Master (outer) case length: 335 mm
  • Master (outer) case height: 315 mm

Other features


  • Cable length: 0.3 m
  • Chipset: VIA/VLI - VL817, ASIX - AX88179A
