StarTech.com 3 Port 2b 1a Low Profile 1394 PCI Express FireWire Card Adapter
More info
Brand: STARTECH.COM
73.50 €
60.74 €
without VAT
incl. 21 % VAT
Stock available: 3 units.
Get it
on the
October 19
/
October 20
SKU:
72824
PRC:
45054
EAN:
65030837897
PN:
PEX1394B3LP
Description

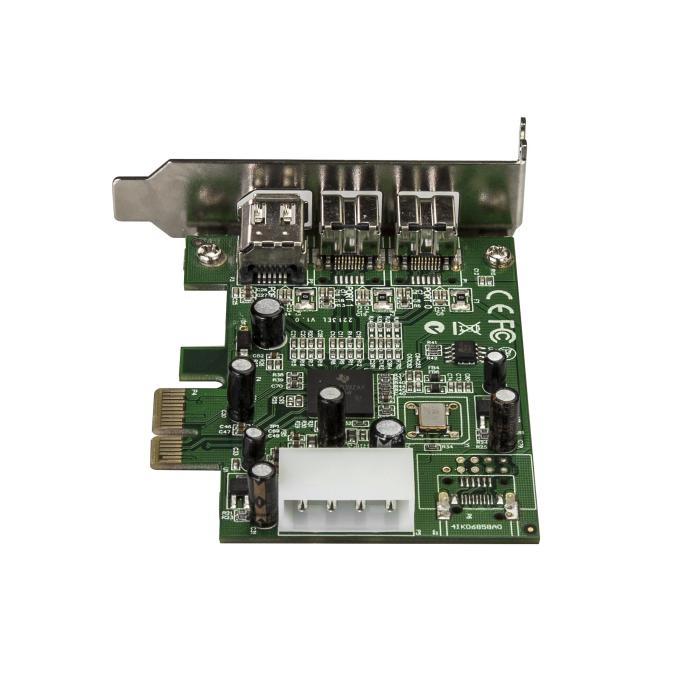

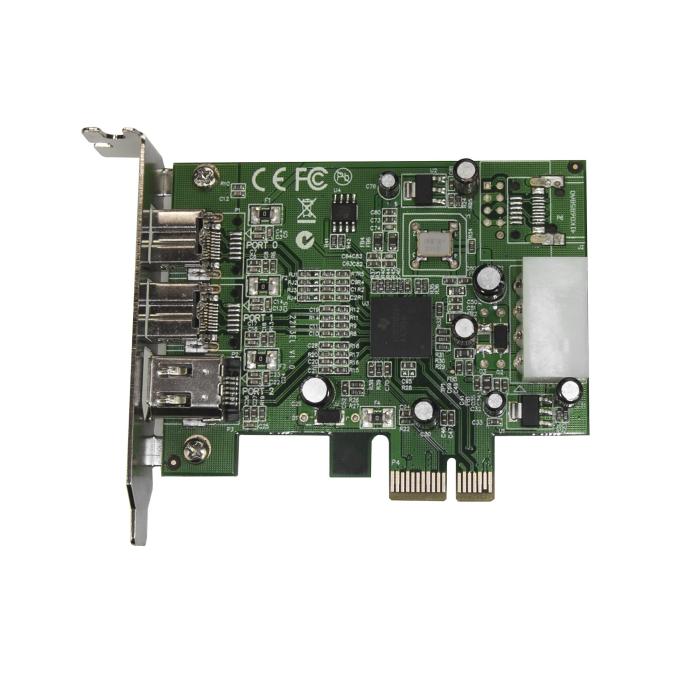

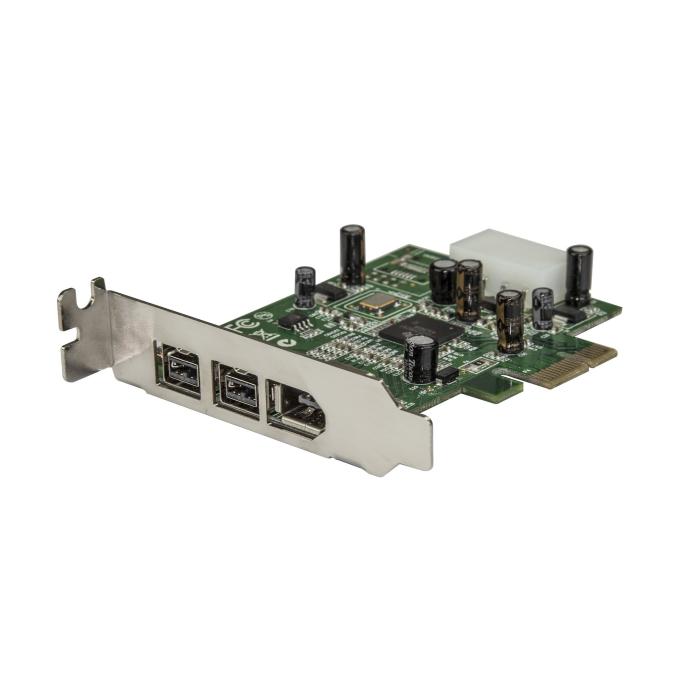

The low profile StarTech.com PCI-Express card adds three FireWire ports to your computer. It offers two FireWire 800 ports and one FireWire 400 port, with a PCIe host interface. It reaches a maximum data transfer rate of 0.8 Gbit/s and uses the Texas Instruments XIO2213B chipset. It is Plug and Play compatible and supports hot-swap. Its low profile internal format makes it suitable for compact cases, with dimensions of 58 x 20 x 90 mm and a weight of 43 g. Its green colour and its mean time between failures of 149905 h complete a solution designed to provide FireWire support for computers with a PCIe 1.1 slot. It operates within an operating temperature range of 0 to 70 °C and a relative humidity of 0 to 90%.
Specifications
Ports & interfaces
- Host interface: PCIe
- Output interface: IEEE 1394/Firewire
- Expansion card standard: PCIe 1.1
- Firewire (IEEE 1394) ports: 3
- FireWire 400 ports quantity: 1
- FireWire 800 ports quantity: 2
Design
- Internal: Yes
- Product colour: Green
- Mean time between failures (MTBF): 149905 h
- Hot-swap: Yes
Features
- Chipset: Texas Instruments - XIO2213B
- Data transfer rate (max): 0.8 Gbit/s
- Plug and Play: Yes
Operational conditions
- Operating temperature (T-T): 0 - 70 °C
- Storage temperature (T-T): -20 - 90 °C
- Operating relative humidity (H-H): 0 - 90%
System requirements
- Windows operating systems supported: Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Ho
- Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac O
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2019
Technical details
- Sustainability compliance: Yes
- Compliance certificates: CE, RoHS
Weight & dimensions
- Width: 58 mm
- Depth: 90 mm
- Height: 20 mm
- Weight: 43 g
Packaging data

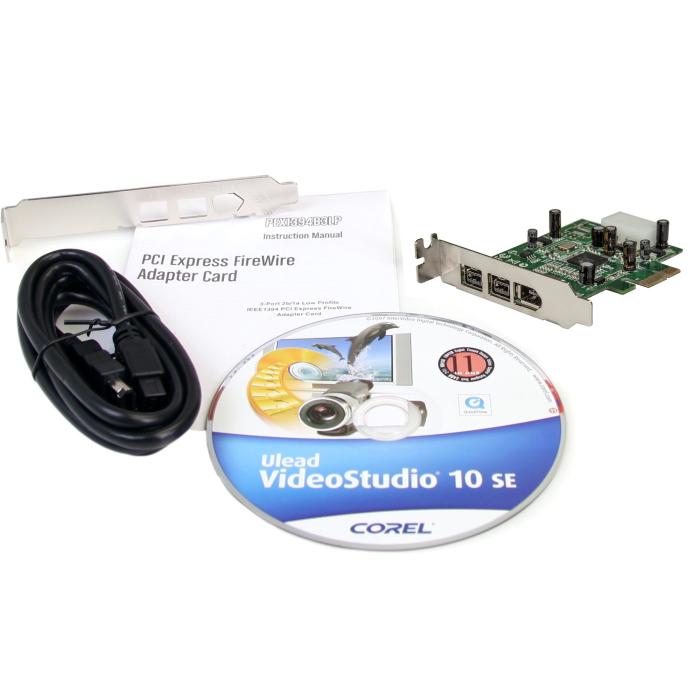

- Cables included: FireWire
- Mounting brackets included: Yes
- Manual: Yes
- Package width: 175 mm
- Package depth: 144 mm
- Package height: 32 mm
- Package weight: 200 g
Logistics data
- Harmonized System (HS) code: 84733020
- Products per master (outer) case: 28 pc(s)
- Master (outer) case width: 331 mm
- Master (outer) case length: 504 mm
- Master (outer) case height: 237 mm
