StarTech.com 2x2 HDMI Video Wall Controller - 4K 60Hz HDMI 2.0 Video Input to 4x 1080p Output - Video Wall Processor for Multi Screen Display - Video Wall Splitter - RS232/Ethernet Control
More info
Brand: STARTECH.COM
978.04 €
808.30 €
without VAT
incl. 21 % VAT
Stock available: 3 units.
Get it
on the
October 13
/
October 14
SKU:
84781
PRC:
289884
EAN:
65030883603
PN:
ST124HDVW
Description

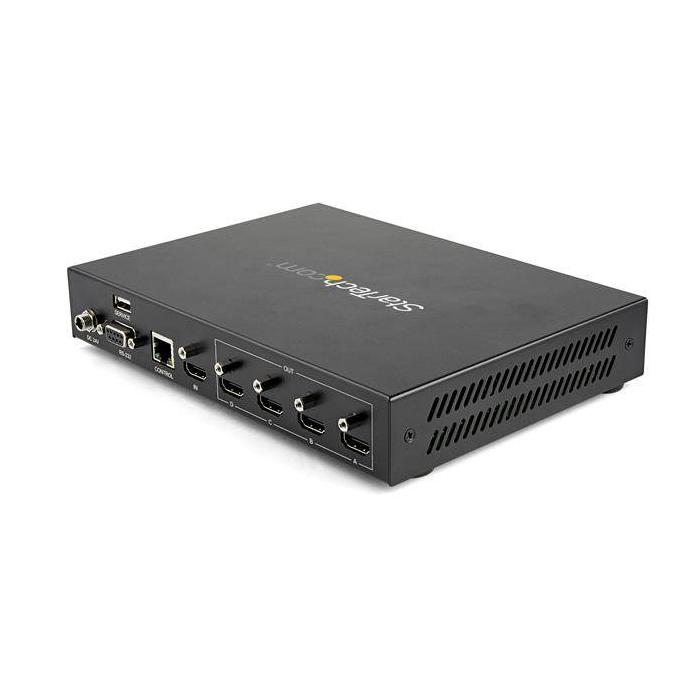

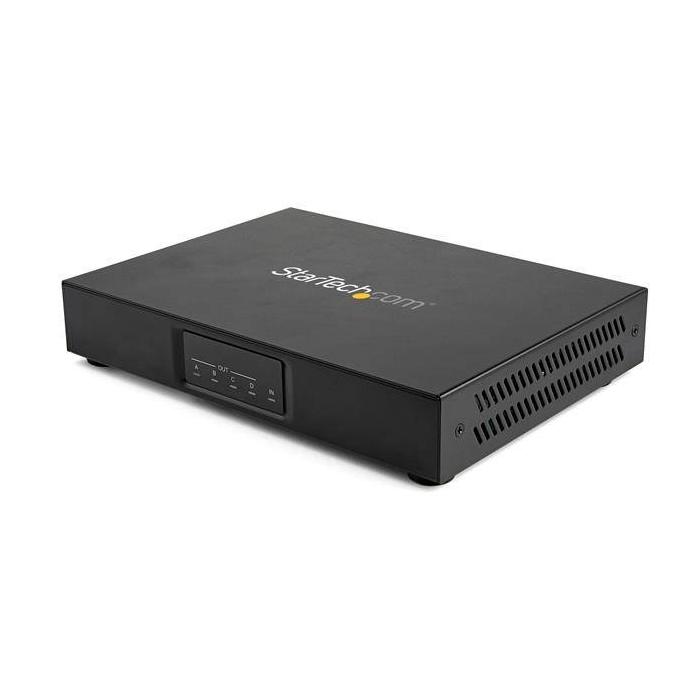

StarTech.com 2x2 video wall controller splits one HDMI signal across four screens to build two-by-two video walls. Its black colour and metal casing give it a understated look, and its dimensions of 165 x 45 x 230 mm (width x height x depth) with a weight of 1 kg allow it to be installed in racks or on fixed surfaces. It supports HDMI 2.0 inputs with a resolution of 4096 x 2160 and a refresh rate of 60 Hz, as well as HDCP 2.2 protection. It features one HDMI input port, four HDMI outputs, one RJ-45 port, one RS-232 port and one USB Type-A port, and includes a DC input jack with a voltage of 100 to 240 V. It offers EDID support and LED indicators to monitor the status of the equipment, and handles 7.1 channel audio.
Specifications

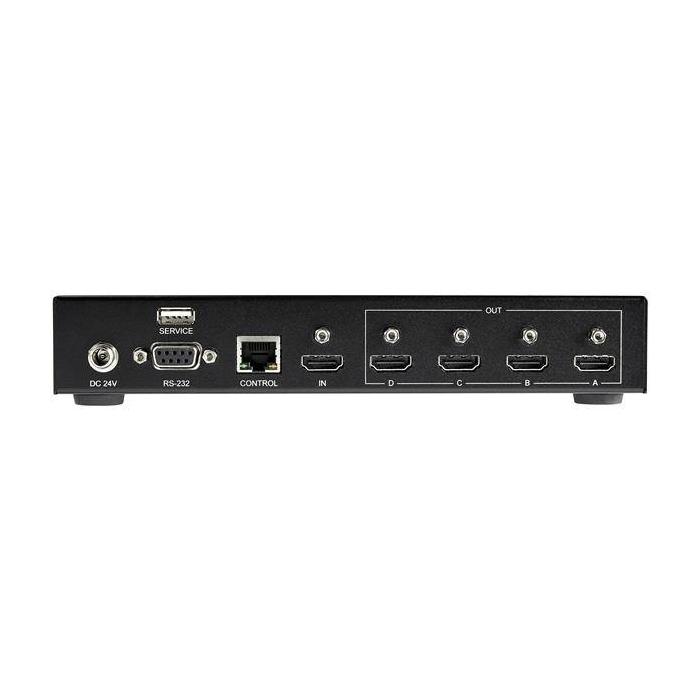

Ports & interfaces
- Video port type: HDMI
- HDMI version: 2.0
- HDMI in: 1
- Number of HDMI outputs: 4
- USB port type: USB Type-A
- RJ-45 input ports: 1
- RS-232 ports: 1
- DC-in jack: Yes
Features
- Material: Metal
- Product colour: Black
- Extended display identification data (EDID): Yes
- HDCP: Yes
- Maximum refresh rate: 60 Hz
- Supported graphics resolutions: 4096 x 2160

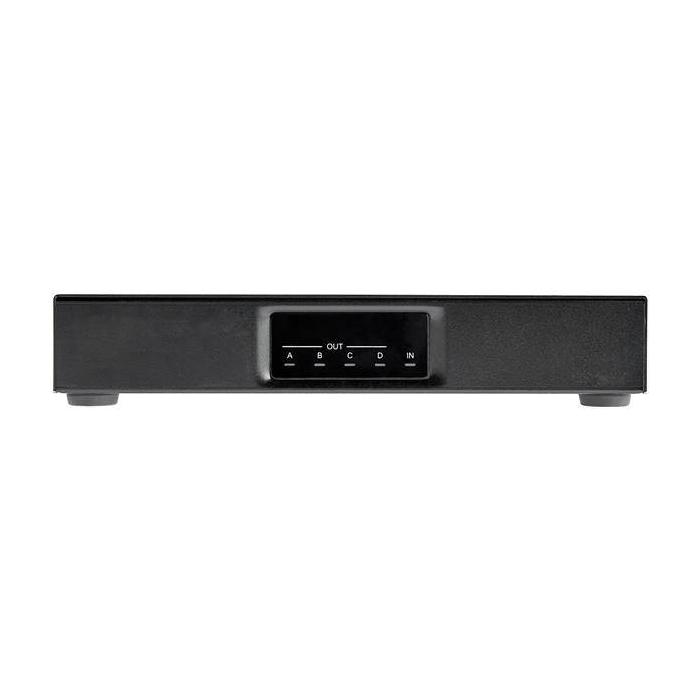

- LED indicators: Yes
- Audio output channels: 7.1 channels
- HDCP version: 2.2
Power
- AC input voltage: 100 - 240 V
- AC adapter input current: 1 A
- AC adapter output voltage: 24 V
- AC adapter output current: 1.25 A
Certificates
- Certification: CE, FCC, REACH
Weight & dimensions
- Width: 165 mm
- Depth: 230 mm
- Height: 45 mm
- Weight: 1 kg
Packaging data
- Package width: 260 mm
- Package depth: 300 mm
- Package height: 70 mm
- Package weight: 1.6 kg

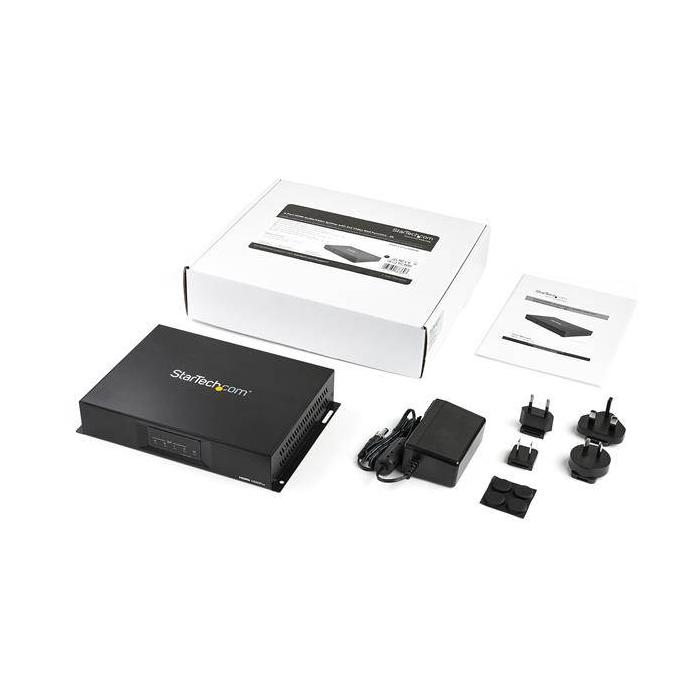

Packaging content
- Manual: Yes
- AC adapter included: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 20 - 90%
Technical details
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 85176990
- Master (outer) case width: 315 mm
- Master (outer) case length: 545 mm
- Master (outer) case height: 380 mm
- Products per master (outer) case: 10 pc(s)
