StarTech.com 2X2 HDMI Matrix Switch w/ Automatic and Priority Switching – 1080p
More info
Brand: STARTECH.COM
116.62 €
96.38 €
without VAT
incl. 21 % VAT
Stock available: 12 units.
Get it
on the
October 12
/
October 13
SKU:
75630
PRC:
83623
EAN:
65030855044
PN:
VS222HDQ
Description

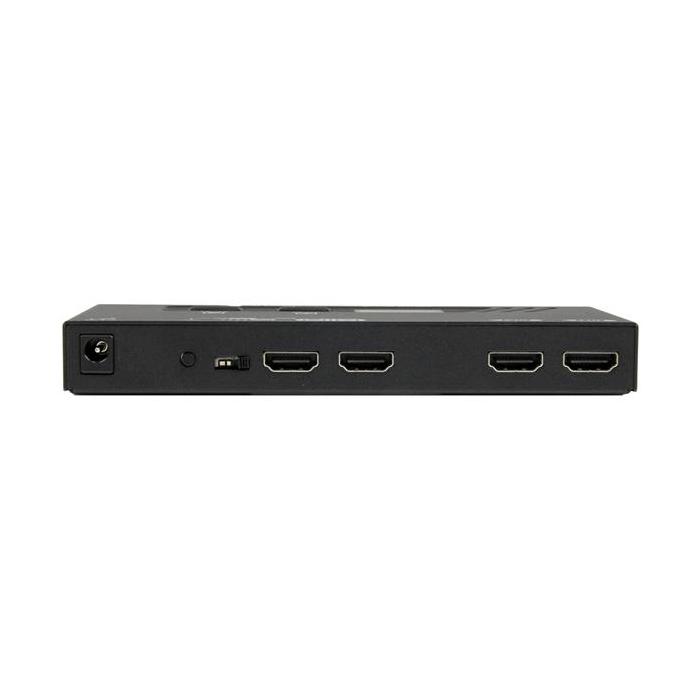

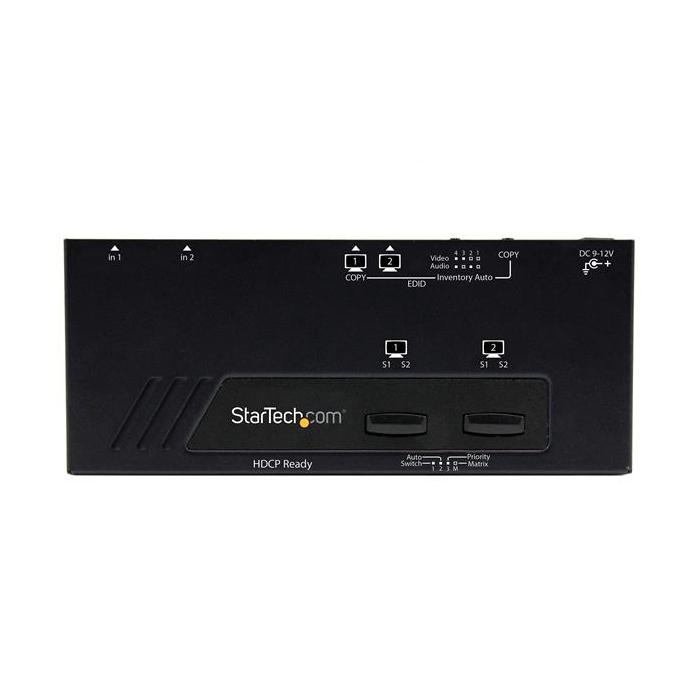

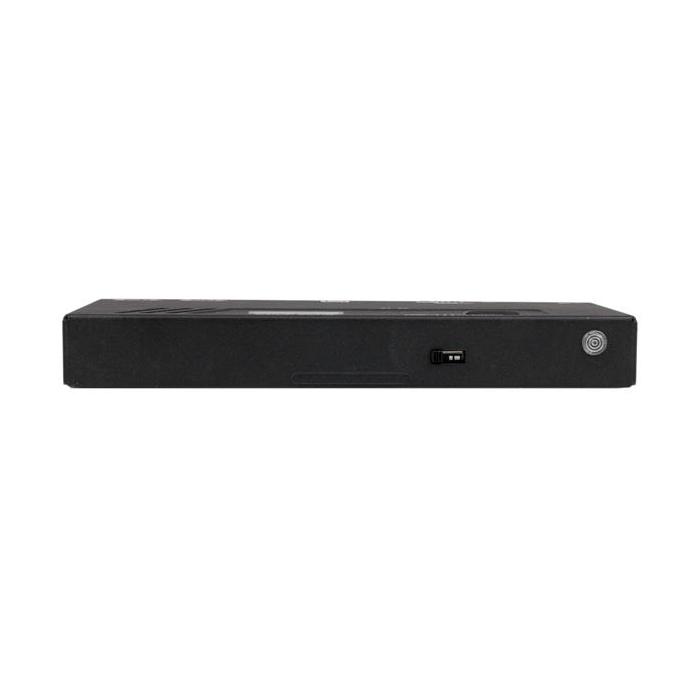

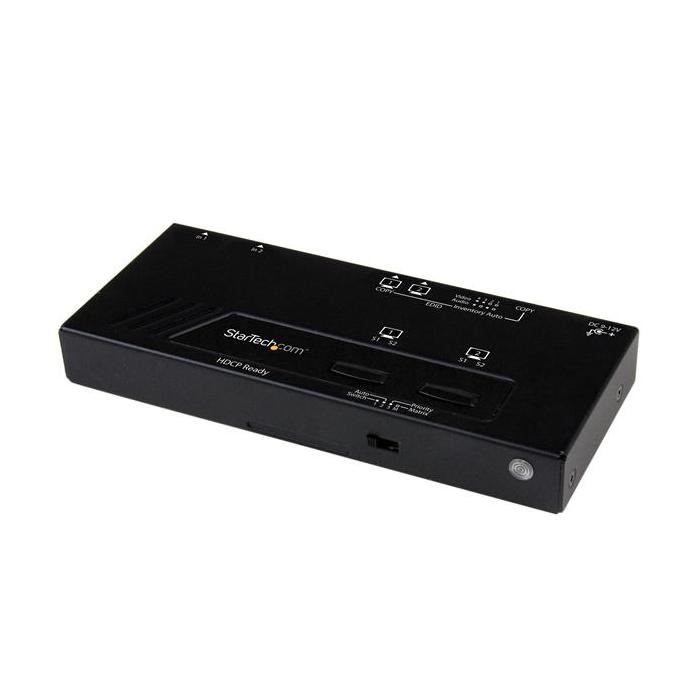

The StarTech.com 2x2 HDMI Matrix Switch with Automatic and Priority Switching is a 1080p matrix switcher in black, measuring 65 x 20 x 157 mm (width x height x depth) and weighing 290 g. It features two HDMI inputs and two HDMI outputs, with four HDMI ports in total, to route two sources to two displays. It switches automatically and with priority, and supports 1080p and 720p video modes along with resolutions of 1280 x 720, 1920 x 1080 and 1920 x 1200. It is HDCP compliant and offers 7.1 channel audio output channels. Its maximum operating distance reaches 10 m, and its LED indicators show activity. The Plug and Play function simplifies setup. Its housing combines aluminium and plastic, supports rack mounting and its adapter works with an input voltage of 100 to 240 V and an output of 12 V, with a maximum power consumption of 18 W and an input current of 0.6 A.
Specifications
Ports & interfaces
- Video port type: HDMI
- HDMI ports quantity: 4
- HDMI in: 2
- Number of HDMI outputs: 2
Features
- Material: Aluminium, Plastic
- Product colour: Black
- Plug and Play: Yes
- HDCP: Yes
- Maximum operating distance: 10 m
- Rack mounting: Yes
- Supported graphics resolutions: 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA)
- Supported video modes: 1080p, 720p
- LED indicators: Activity
- Audio output channels: 7.1 channels
Power
- AC adapter input voltage: 100 - 240 V
- AC adapter input current: 0.6 A
- AC adapter output voltage: 12 V
- AC adapter output current: 1.5 A
- Power consumption (max): 18 W
- Power plug type: Type M
Certificates
- Certification: CE, FCC, TAA, REACH
Weight & dimensions
- Width: 65 mm
- Depth: 157 mm
- Height: 20 mm
- Weight: 290 g
Packaging data
- Package width: 195 mm
- Package depth: 292 mm
- Package height: 72 mm
- Package weight: 545 g

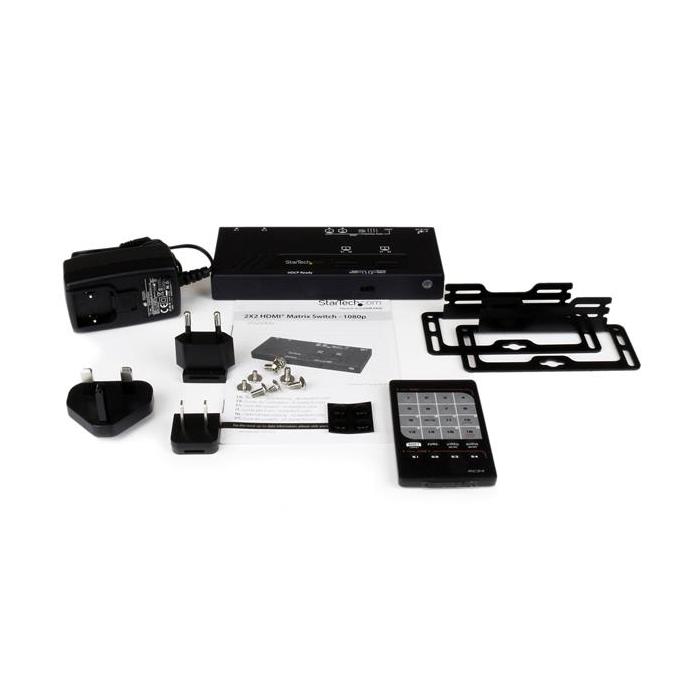

Packaging content
- Remote control included: Yes
- Manual: Yes
- AC adapter included: Yes
- Plug adapter type: NA, EU, UK, AU
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Technical details
- Compliance certificates: RoHS
Logistics data
- Harmonized System (HS) code: 85176990
