Specifications

Ports & interfaces


  • Connectivity technology: Wired
  • Host interface: PCI Express
  • Interface: Ethernet
  • Ethernet LAN (RJ-45) ports: 1

Network


  • Maximum data transfer rate: 1000 Mbit/s
  • Networking standards: IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x
  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • Ethernet LAN data rates: 10, 100, 1000 Mbit/s
  • Cabling technology: 10/100/1000BaseT(X)
  • Wi-Fi: No
  • Wake-on-LAN ready: Yes
  • Auto MDIX IEEE: Yes
  • Full duplex: Yes
  • Jumbo frames support: Yes
  • Jumbo frames: 9000
  • Supported network protocols: CSMA/CD

Design


  • Internal: Yes
  • Chipset: Realtek RTL8111E
  • LED indicators: Activity, Link
  • Mean time between failures (MTBF): 376212 h
  • Certification: CE, FCC

System requirements


  • Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
  • Mac operating systems supported: Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard
  • Linux operating systems supported: Yes
  • Server operating systems supported: Windows Server 2003, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 20

Operational conditions


  • Operating temperature (T-T): 0 - 70 °C
  • Storage temperature (T-T): 0 - 100 °C
  • Operating relative humidity (H-H): 10 - 90%

Weight & dimensions


  • Width: 120.3 mm
  • Depth: 67.9 mm
  • Height: 18 mm
  • Weight: 40 g

Packaging data


  • Drivers included: Yes
  • Low-profile bracket: Yes
  • Package width: 142 mm
  • Package depth: 171 mm
  • Package height: 32 mm
  • Package weight: 126 g

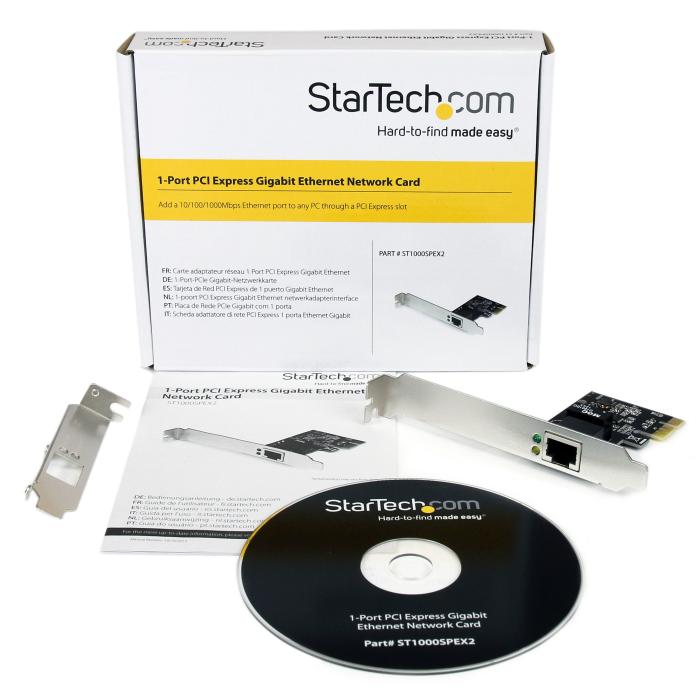

Packaging content


  • Manual: Yes

Technical details


  • Compliance certificates: RoHS

Logistics data


  • Harmonized System (HS) code: 85176990

Other features


  • Supported data transfer rates: 10/100/1000 Mbit/s
