Description

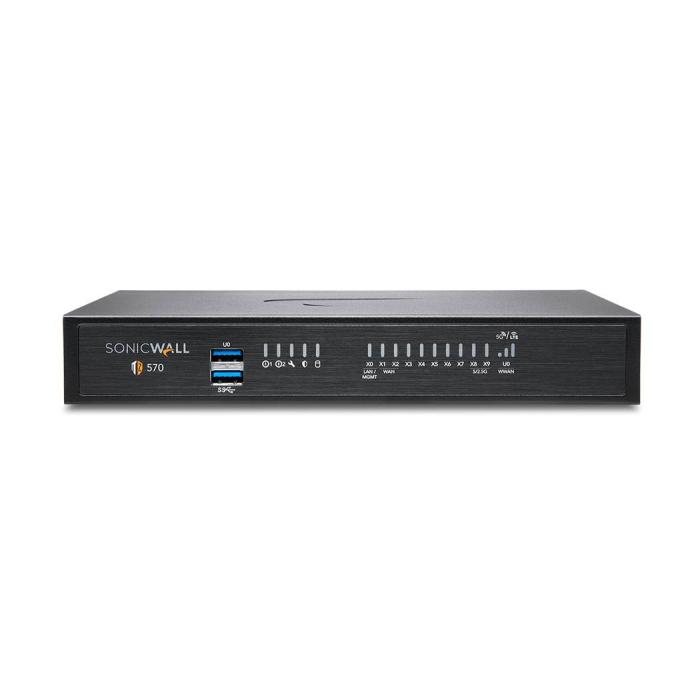

The SonicWall TZ570 desktop firewall provides a firewall throughput of 4 Gbit/s, designed to manage demanding network traffic with up to 1,250,000 SPI connections and 400,000 connections with deep packet inspection (DPI). It offers an IPSec VPN transfer rate of 1.8 Gbit/s and an SSL inspection performance of 750 Mbit/s, ensuring smooth encrypted communications. Equipped with support for 200 VPN tunnels, 256 VLANs, up to 32 LAN access points, and routing protocols such as BGP, OSPF, and RIP, it facilitates advanced and flexible network management. Its DHCP functionality, QoS support, and local database for 250 users make it a solid choice for corporate environments seeking control and security.
Specifications
Data transmission
- IPSec VPN throughput: 1.8 Gbit/s
- IPS/IDS throughput: 2500 Mbit/s
- SSL inspection throughput: 750 Mbit/s
- Maximum connections (DPI): 400000
- Maximum connections (SPI): 1250000
- Maximum firewall connections per second: 16000
Performance
- Heat dissipation: 44.7 BTU/h
Network
- Wi-Fi: No
- VPN tunnels quantity: 200
- Local user database: 250
- Number of VLANs: 256
- DHCP server: Yes
- Quality of Service (QoS) support: Yes
- Point-to-point protocol over Ethernet (PPPoE): Yes
- Number of LAN Access Points (max): 32
Protocols
- Routing protocols: BGP, OSPF, RIP-1, RIP-2
Management features
- LED indicators: Yes
Ports & interfaces
- Connectivity technology: Wired
- Gigabit Ethernet (copper) ports quantity: 8
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 8
- Ethernet LAN data rates: 1000, 5000 Mbit/s
- Console port: RJ-45
- Number of console ports: 1
- WAN connection: Mobile network (USB)
- Installed SFP+ modules quantity: 2
Storage
- Total storage capacity: 32 GB
Design
- Form factor: Desktop
- Built-in display: No
Power
- AC input voltage: 100-240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 13.4 W
- Power supply: 60 W
- Redundant power supply (RPS) support: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 225 mm
- Depth: 150 mm
- Height: 35 mm
- Weight: 970 g
Other features
- Firewall throughput: 4000 Mbit/s
Logistics data
- Harmonized System (HS) code: 85176990
