Description

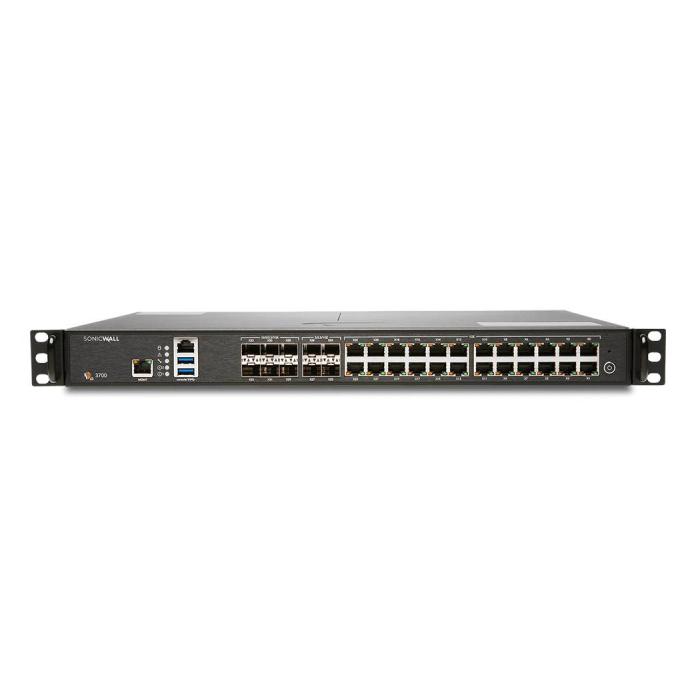

SonicWall NSA 3700 hardware firewall in 1U format with a firewall throughput of 5.5 Gbit/s, designed to protect networks of up to 50 users and 512 LAN access points. It offers SSL inspection of 4200 Mbit/s, threat protection of 3500 Mbit/s and an IPS/IDS performance of 3800 Mbit/s, with support for 2,000,000 SPI connections and 750,000 in DPI mode. The IPSec VPN achieves a transfer rate of 2.2 Gbit/s and supports up to 3000 tunnels, while TLS interception reaches 850 MB/s. It includes support for VoIP, QoS and 256 VLANs, with security algorithms such as AES 128, 192 and 256-bit, 3DES and FIPS 140-2, as well as a local database of 1000 users. Its heat dissipation is 123.78 BTU/h, and it manages up to 22,000 new connections per second.
Specifications
Data transmission
- IPSec VPN throughput: 2.2 Gbit/s
- IPS/IDS throughput: 3800 Mbit/s
- Threat protection throughput: 3500 Mbit/s
- SSL inspection throughput: 4200 Mbit/s
- Maximum connections (DPI): 750000
- Maximum connections (SPI): 2000000
- Maximum firewall connections per second: 22000
- VoIP: Yes
Performance
- TLS interception: 850 MB/s
- Heat dissipation: 123.78 BTU/h
Network
- VPN tunnels quantity: 3000
- Number of users: 50 user(s)
- Local user database: 1000
- Number of VLANs: 256
- Quality of Service (QoS) support: Yes
- Number of LAN Access Points (max): 512
Security
- Security algorithms: 3DES, MD5, DES, 128-bit AES, 192-bit AES, SHA-1, 256-bit AES, FIPS 140-2
Protocols
- Routing protocols: BGP, RIP, OSPF
Ports & interfaces
- Connectivity technology: Wired
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 24
- Ethernet LAN data rates: 1000 Mbit/s
- Number of console ports: 1
- SFP+ module slots quantity: 10
Storage
- Total storage capacity: 128 GB
Design
- Rack mounting: Yes
- Form factor: 1U
- Built-in fan: Yes
- Number of fans: 2 fan(s)
Power
- AC input voltage: 100-240 V
- AC input frequency: 50/60 Hz
- Power consumption (max): 36.3 W
- Power supply: 90 W
Certificates
- Certification: FCC Class A, CE (EMC, LVD, RoHS), C-Tick, VCCI Class A, MSIP/KCC Class A, UL, cUL, TUV/GS, CB, Mexico CoC by UL, WEEE , REACH, A
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
Weight & dimensions
- Width: 430 mm
- Depth: 325 mm
- Height: 45 mm
- Weight: 4.6 kg
Other features
- Firewall throughput: 5500 Mbit/s
