Description

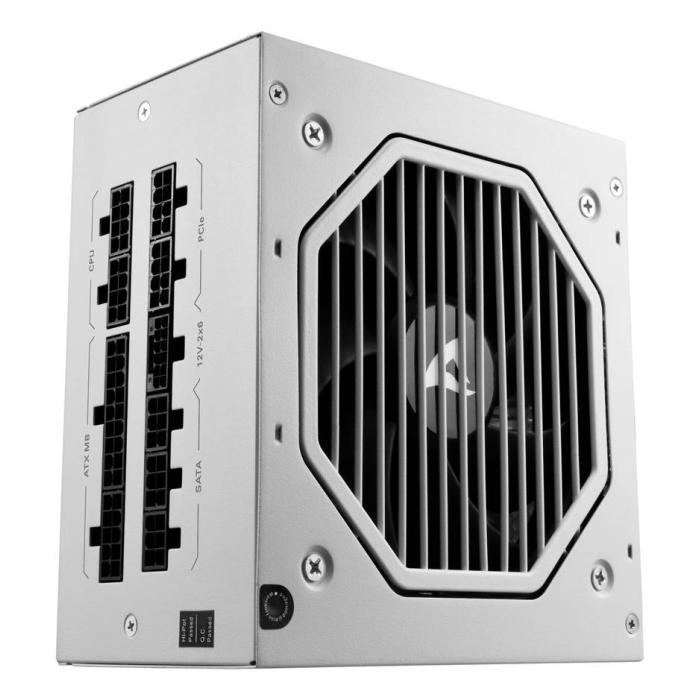

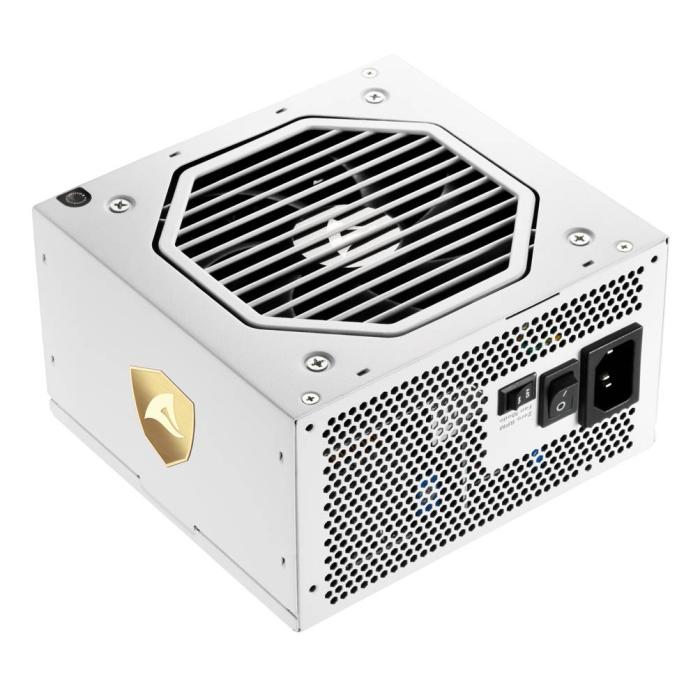

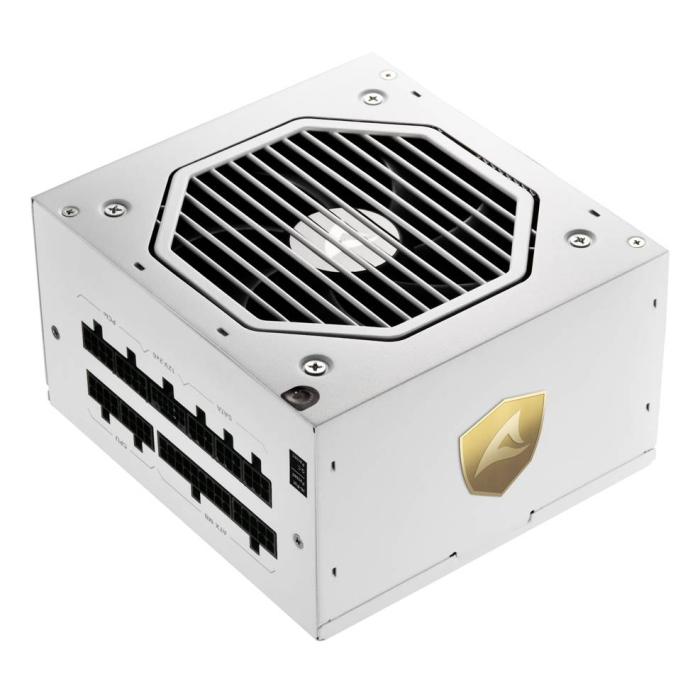

The Sharkoon Rebel P20 850 W power supply in a white finish offers a fully modular solution for ATX builds, with a 24-pin main connector and +12 V outputs capable of delivering up to 70.8 A. It incorporates protections against overcurrent, overvoltage, overvoltage, overheating, short circuit, and undervoltage, as well as a 4+4-pin EPS connector and PCI Express support. Its AC input range covers 100 to 240 V with a frequency of 50/60 Hz, and the combined power of 100 W on the 3.3 V and 5 V lines complements the 850 W total. Designed for a clean installation, this unit features modular cabling that allows you to connect only what is needed, maintaining airflow within the chassis.
Specifications
Power
- Total power: 850 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 10 / 5 A
- Combined power (+3.3V): 100 W
- Combined power (+12V): 850 W
- Combined power (+5V): 100 W
- Max output current (+3.3V): 20 A
- Max output current (+12V1): 70.8 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage

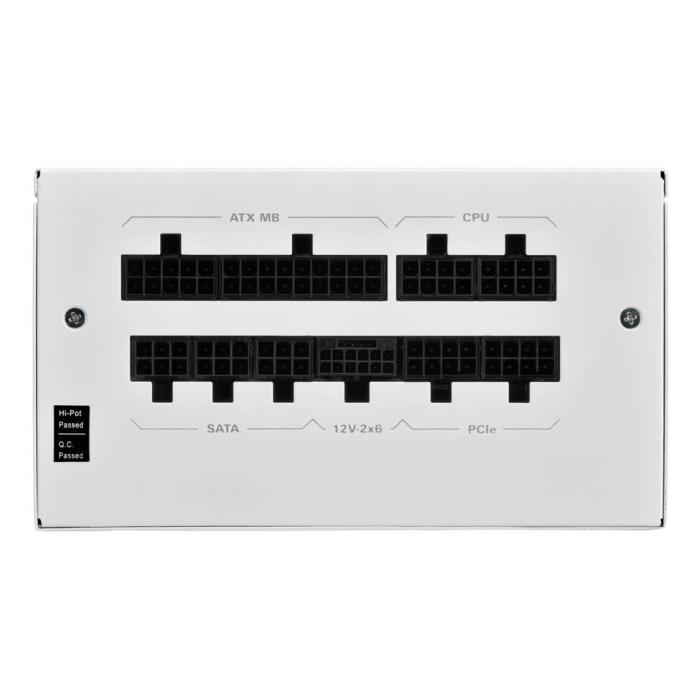

Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 11
- Peripheral (Molex) power connectors (4-pin): 1
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 4
- PCI Express power cable length: 70 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 70 cm
- ATX Power connector (24-pin): Yes
- PCI Express connector: Yes

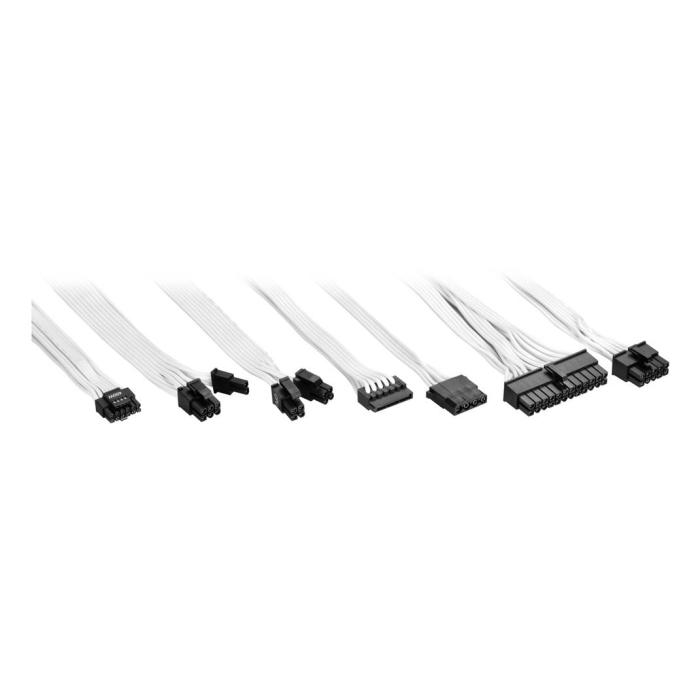

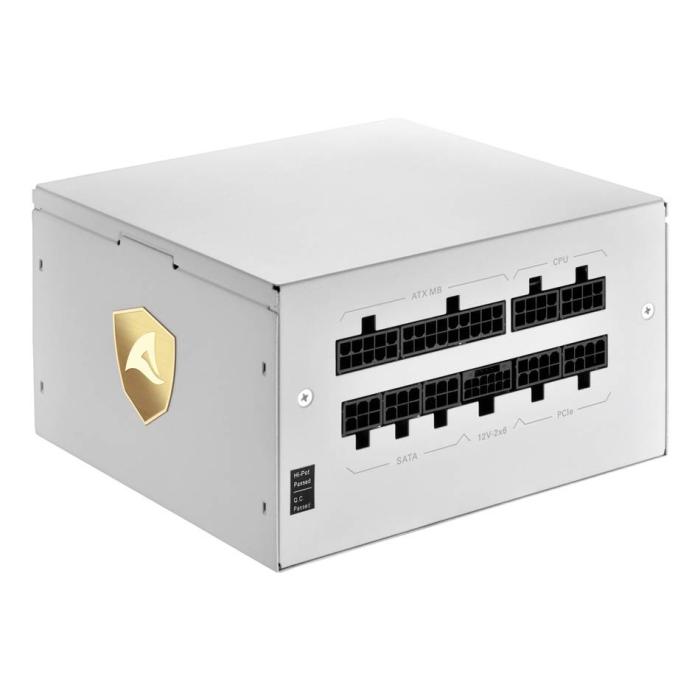

- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: No
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- Bearing technology: FDB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: White
- Cooling type: Active

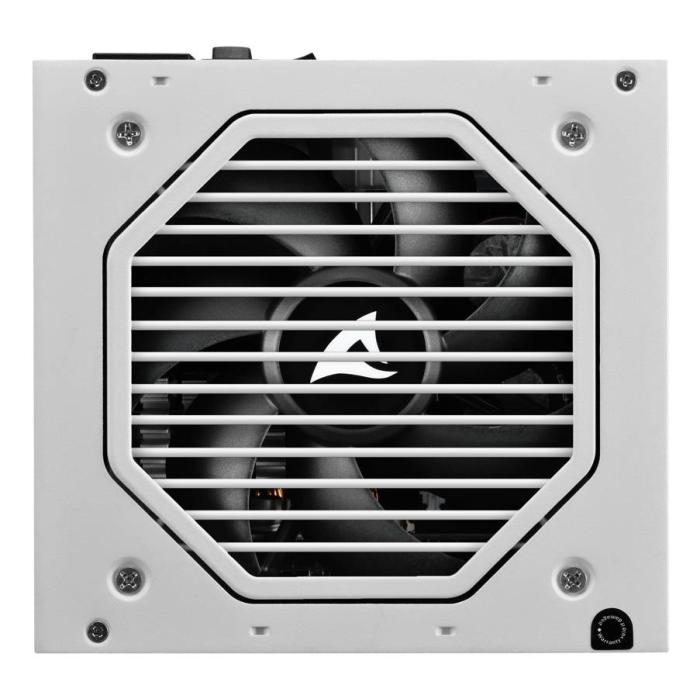

- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan location: Top

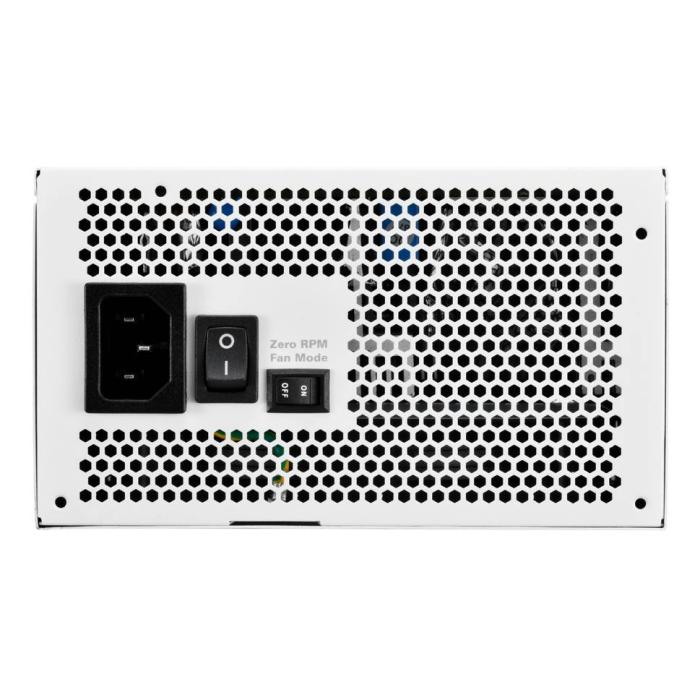

- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Packaging content
- Cables included: AC
Certificates
- Compliance certificates: CB, CE, Federal Communications Commission (FCC)
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
- Weight: 1.6 kg
Technical details
- Sustainability certificates: ErP
