Description

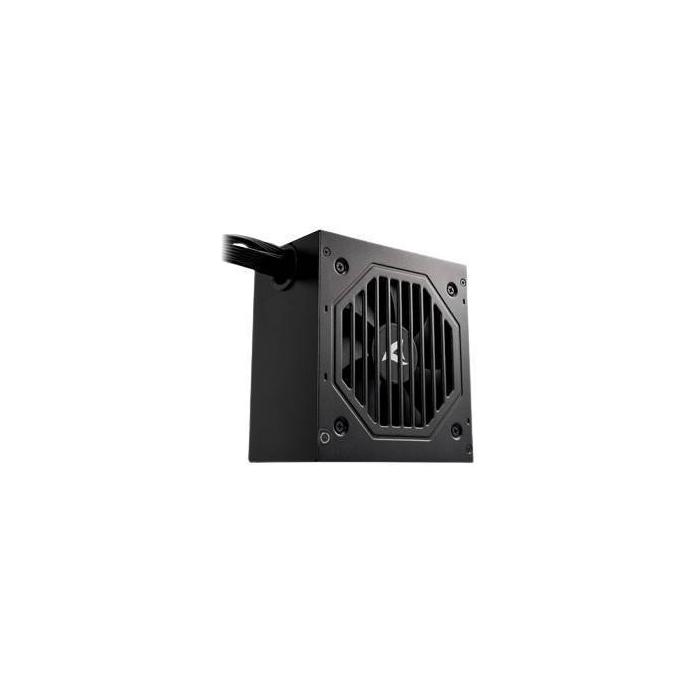

SHARKOON Rebel P10 power supply unit in ATX format with black finish, offering a total power of 850 W and fully modular cabling so you only connect the cables you need. Its electrical protections include safeguards against overcurrent, overvoltage, overheating, overload, short circuit, and undervoltage, with active power factor correction and an input current of 10 A or 5 A depending on the mains voltage (100-240 V). The 24-pin ATX connector is present, as well as the PCI Express connector, and its CPU power cable reaches 62 cm, making internal case management easier.
Specifications
Power
- Total power: 850 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 10 / 5 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 849.6 W
- Combined power (+5V): 100 W
- Max output current (+3.3V): 18 A
- Max output current (+12V1): 70.8 A
- Max output current (+5V): 18 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 55 cm
- Number of SATA power connectors: 5
- Peripheral (Molex) power cable length: 480 mm
- PCI Express power connectors (6+2 pin): 4
- PCI Express power cable length: 56 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 62 cm
- ATX Power connector (24-pin): Yes
- PCI Express connector: Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: No
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- Bearing technology: Sleeve
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Packaging content
- Cables included: AC
Certificates
- Certification: CE, FCC, CB
Weight & dimensions
- Width: 140 mm
- Depth: 150 mm
- Height: 86 mm
- Weight: 1.74 kg
Technical details
- Sustainability certificates: ErP
