Description
The Sharkoon Rebel P10 power supply unit, in its black variant and with 650 W total power, offers fully modular cabling to simplify the internal management of your system. It is designed with a 24-pin ATX connector, 4+4-pin CPU connector, and PCI Express connector, covering the basic connection needs. It incorporates active PFC and supports an input voltage of 100 to 230 V with a frequency of 50/60 Hz, adapting to different electrical environments. Additionally, it includes protections against overcurrent, overvoltage, overheating, overload, short circuit, and undervoltage to safeguard connected components.
Specifications
Power
- Total power: 650 W
- AC input voltage: 100 - 230 V
- AC input frequency: 50/60 Hz
- Input current: 8 / 4 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 549.6 W
- Combined power (+5V): 100 W
- Max output current (+3.3V): 18 A
- Max output current (+12V1): 45.8 A
- Max output current (+5V): 18 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Ports & interfaces

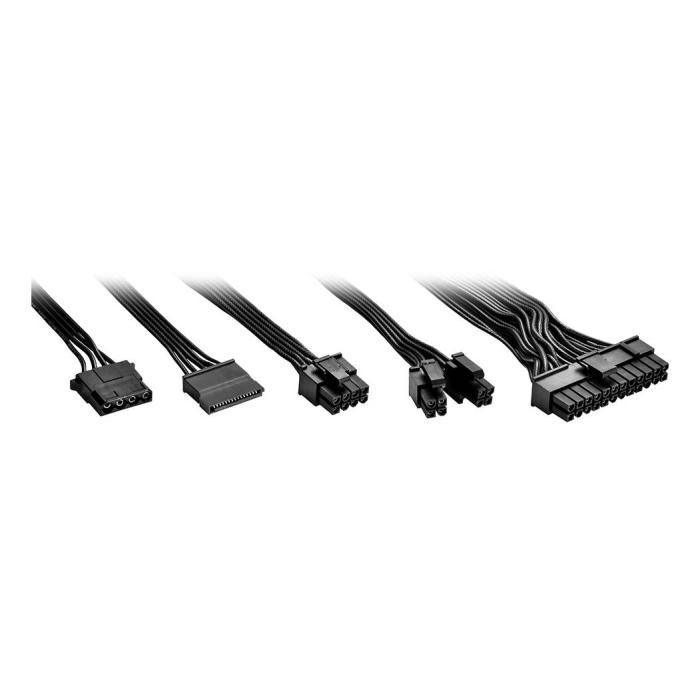

- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 55 cm
- Number of SATA power connectors: 5
- Peripheral (Molex) power cable length: 480 mm
- PCI Express power connectors (6+2 pin): 2
- PCI Express power cable length: 56 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 62 cm
- ATX Power connector (24-pin): Yes
- PCI Express connector: Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: No
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- Bearing technology: Sleeve
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Packaging content
- Cables included: AC
Certificates
- Certification: CE, FCC, CB
Weight & dimensions
- Width: 140 mm
- Depth: 150 mm
- Height: 86 mm
- Weight: 1.47 kg
Technical details
- Sustainability certificates: ErP
