Description

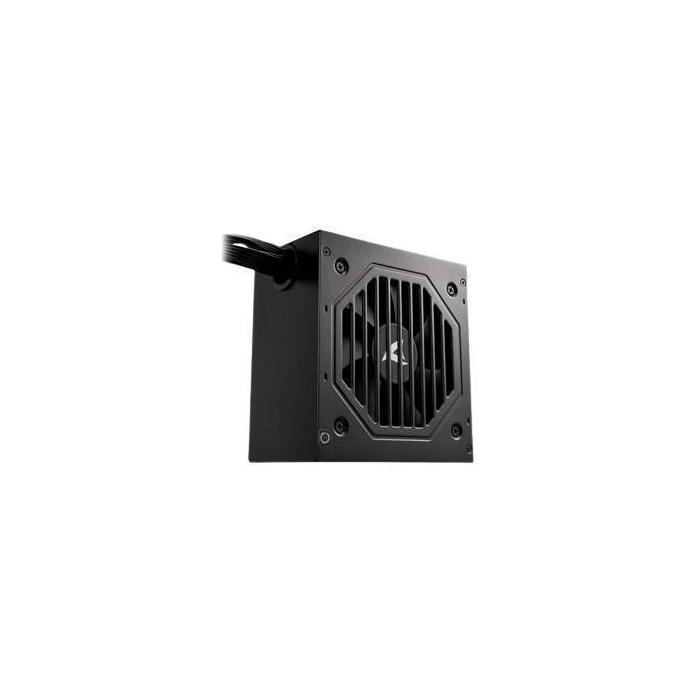

Sharkoon Rebel P10 650 W power supply in black, ATX form factor and fully modular cabling for a clean and tidy installation. It offers a 24-pin connector, PCI Express output and a maximum current of 54.1 A on the +12 V rail, with a combined power of 649.2 W. Includes protection against overcurrent, overvoltage, overheating, overload, short circuit and undervoltage, as well as active power factor correction. Its input accepts between 100 and 230 V with a frequency of 50/60 Hz, and the CPU power cable reaches 62 cm to facilitate routing in spacious towers.
Specifications
Power
- Total power: 650 W
- AC input voltage: 100 - 230 V
- AC input frequency: 50/60 Hz
- Input current: 8 / 4 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 100 W
- Combined power (+12V): 649.2 W
- Combined power (+5V): 100 W
- Max output current (+3.3V): 18 A
- Max output current (+12V1): 54.1 A
- Max output current (+5V): 18 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Power protection features: Over current, Over voltage, Overheating, Overload, Short circuit, Under voltage
Ports & interfaces
- Number of SATA power connectors: 5
- Peripheral (Molex) power cable length: 480 mm
- PCI Express power connectors (6+2 pin): 2
- PCI Express power cable length: 56 cm
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 62 cm
- ATX Power connector (24-pin): Yes
- PCI Express connector: Yes
- Cabling type: Fully-Modular
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 55 cm
Performance
- 80 PLUS certification: No
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- Bearing technology: Sleeve
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Packaging content
- Cables included: AC
Certificates
- Certification: CE, FCC, CB
Weight & dimensions
- Width: 140 mm
- Depth: 150 mm
- Height: 86 mm
- Weight: 1.5 kg
Technical details
- Sustainability certificates: ErP
