Description
Specifications
Features
- Output power capacity (max): 2.2 kVA
- Output operation voltage (min): 195.5 V
- Output operation voltage (max): 253 V
- Output frequency: 50/60 Hz
- MPP voltage range: 80 - 450 V
- Maximum input power (DC): 2600 W
- Maximum power: 2000 W
- Output current: 8.7 A
- Power consumption (idle): 1 W
- Pollution degree: 2/3
- Starting voltage: 60 V
- DC input voltage: 500 V
- Isolation type: Transformerless
- Network voltage: 230 V
- Short-circuit current per MPPT (max): 15 A
- DC disconnector: Yes
- Number of power levels: 7
- Number of maximum power point tracking (MPPT): 1
- Product type: On-grid inverter
- Number of strings per MPPT: 1
- Maximum input current per MPPT: 12.5 A
- Total Harmonic Distortion (THD): 3%
- Power factor: 0.8
- Noise level: 25 dB
- Efficiency: 97.5%
- Efficiency (MPPT): 99.9%
- Efficiency (EU): 97%
- Photovoltaic (PV) charging supported: Yes
- Material: Silicon carbide (SiC)
- Certification: Certificate EN 61000-6-2/3, IEC 62109-1/2 / EN 61000-6-2/3, IEC EN UNE 61683, IEC EN UNE 60068-2-1/2/14/30, UNE EN 62116:2014, I
Design
- Product colour: Black, White
- Housing material: Aluminium
- Cooling type: Passive
- International Protection (IP) code: IP65
- Power protection features: Over voltage
- Overvoltage category: CAT II
- Wall mountable: Yes
- Easy to install: Yes
- Suitable for indoor use: Yes
- Suitable for outdoor use: Yes
Display
- Built-in display: Yes
- Display technology: OLED
Operational conditions
- Operating temperature (T-T): 30 - 60 °C
- Operating relative humidity (H-H): 0 - 100%
- Operating altitude: 0 - 4000 m
Weight & dimensions
- Width: 327 mm
- Depth: 114 mm
- Height: 297 mm
- Weight: 6.5 kg
Charger
- Charger type: MPPT

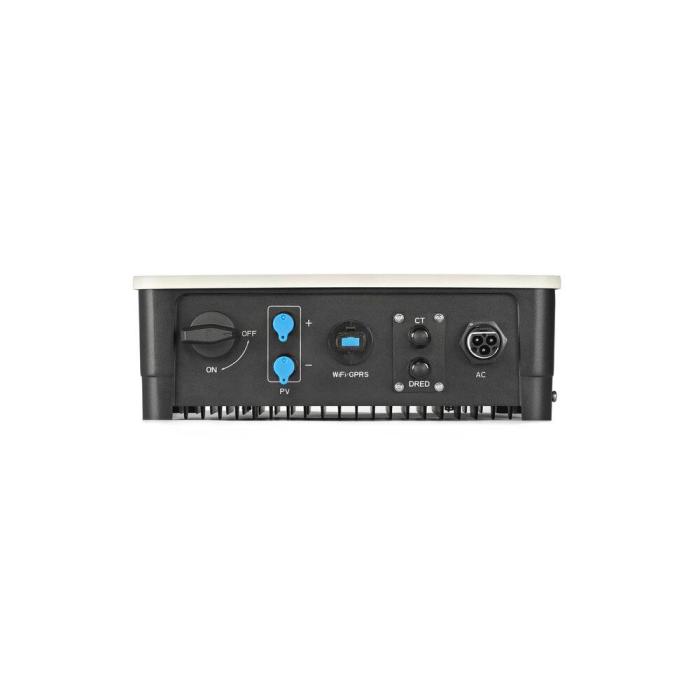

Ports & interfaces
- Interface type: MC4
- Photovoltaic (PV) input: 2
- RS-485 ports: 1
