Description

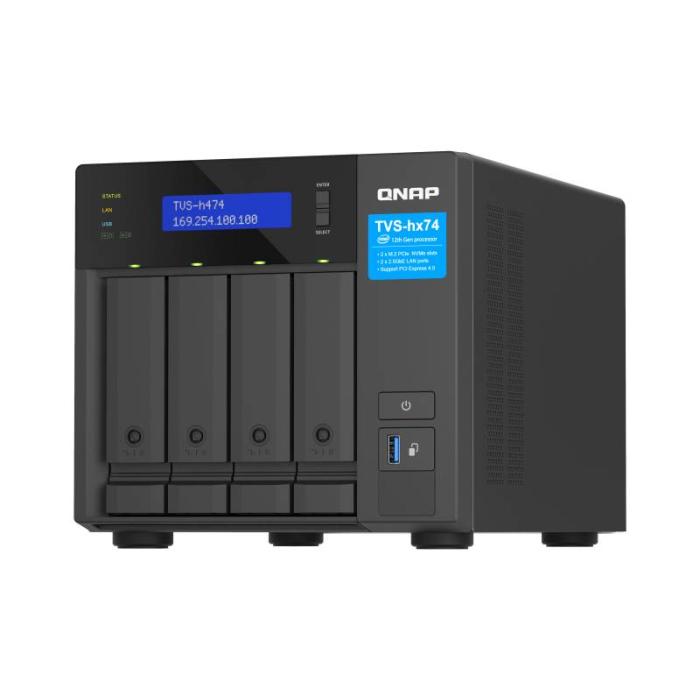

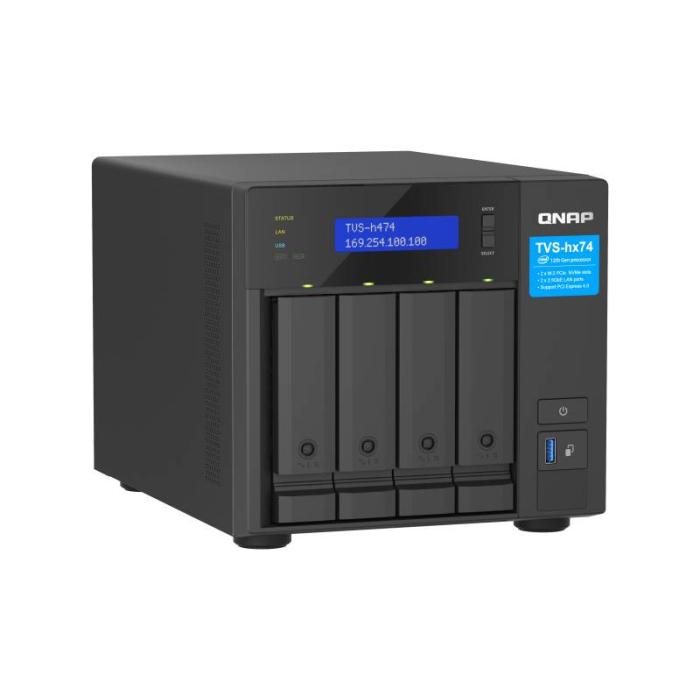

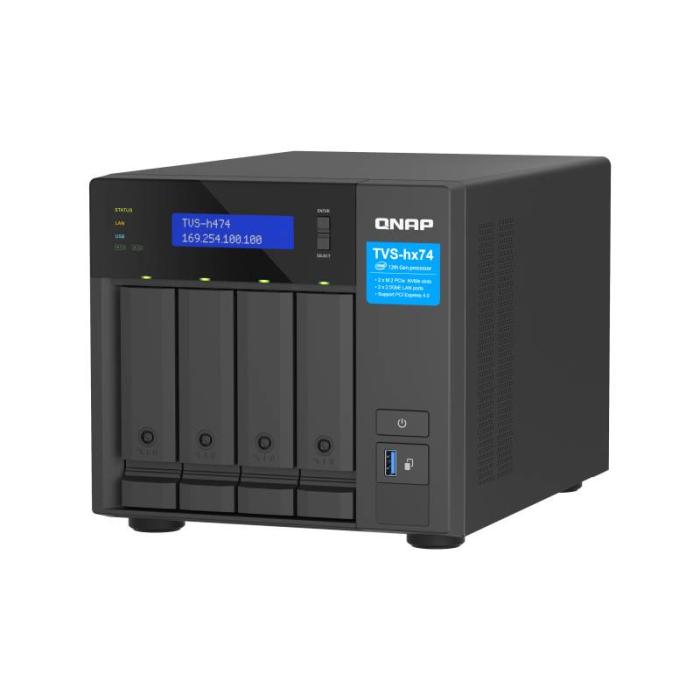

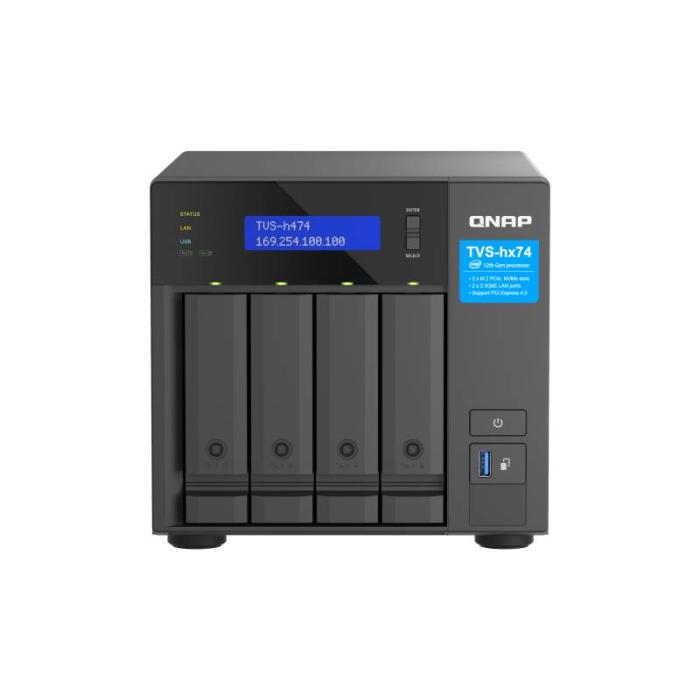

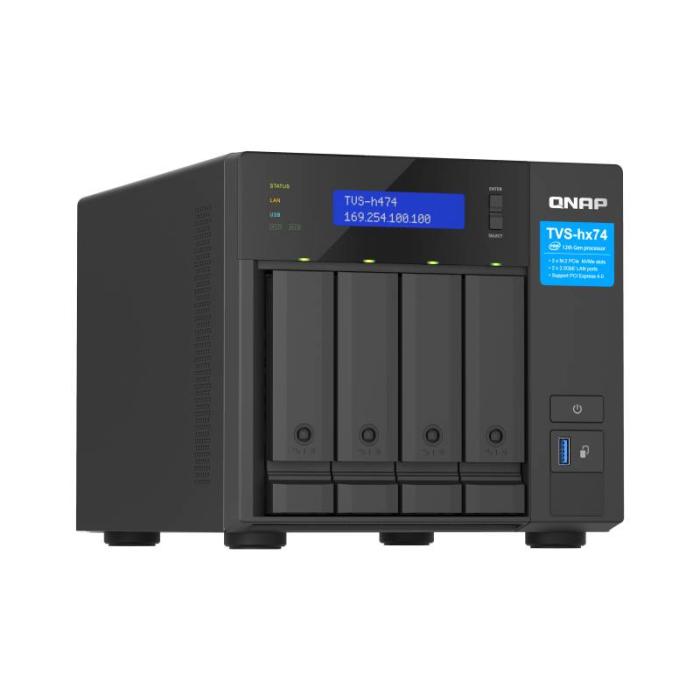

The QNAP TVS-H474 is a black tower NAS with an Intel Pentium G7400 processor and 8 GB of DDR4, designed to centralise your network storage. It offers four bays compatible with 2.5 and 3.5 inch HDD and SSD drives, with hot-swap trays that make it easy to change disks without shutting down the device. It also has two M.2 slots to expand storage, and supports Serial ATA II and Serial ATA III interfaces. RAID configuration covers levels 0, 1, 5, 6, 10 and JBOD, with online expansion, rebuilding and disk roaming functions. Its QuTS hero file system works with ZFS, although it also recognises FAT32, HFS+, NTFS, exFAT, ext3 and ext4. The processor includes 6 MB cache and 2.5 MB L2 cache. With dimensions of 199.3 x 188.2 x 279.6 mm (width x height x depth), it fits into desks and small racks.
Specifications
Storage
- Supported storage drive interfaces: M.2, Serial ATA II, Serial ATA III
- Storage drive sizes supported: 2.5, 3.5, M.2
- Number of M.2 (M & B) slots: 2
- RAID support: Yes
- RAID levels: 0, 1, 5, 6, 10, JBOD
- Online RAID expansion: Yes
- RAID rebuild: Yes
- Hot-swap drive bays: Yes
- Supported file systems: FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4
- Storage drives installed: No
- Total installed storage capacity: 0 TB
- Number of storage drives supported: 4
- Installed storage drive type: No
- Supported storage drive types: HDD & SSD
- Disk roaming: Yes
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Pentium®
- Processor model: G7400
- Processor frequency: 3.7 GHz
- Processor cores: 2
- Processor threads: 4
- Processor cache: 6 MB
- L2 cache: 2.5 MB
- Bus type: DMI4
- CPU configuration (max): 1
- On-board graphics card model: Intel UHD Graphics 710
Memory
- Internal memory: 8 GB
- Internal memory type: DDR4
- Maximum RAM supported: 128 GB
- Memory slots: 2
- Memory form factor: SO-DIMM
- Flash memory: 5000 MB
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10, 100, 1000, 2500 Mbit/s
- Ethernet LAN data rate supported (max): 10000 Mbit/s
- DHCP server: Yes
- Jumbo frames support: Yes
- iSCSI support: Yes
- Wake-on-LAN ready: Yes
- Supported network protocols: IPv4, IPv6
- Dynamic DNS (DDNS): Yes
Ports & interfaces
- USB port: Yes
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- HDMI ports quantity: 1
- HDMI version: 1.4b
- Ethernet LAN (RJ-45) ports: 2
- Number of SATA III connectors: 4
- Concurrent connections: 700
- PCI Express x2 (Gen 3.x) slots: 2
- PCI Express x16 (Gen 4.x) slots: 1
Design
- Cable lock slot: Yes
- Cable lock slot type: Kensington
- Chassis type: Tower
- Cooling type: Active
- Product colour: Black
- Number of fans: 2 fan(s)
- Fan diameter: 12 cm
- Fan diameter 2: 6 cm
- Drive bay locking: Yes
- LED indicators: M.2, HDD, LAN, Status, USB
- Built-in display: Yes
- Display type: LCD
Performance
- Type: NAS
- Device class: Small & Medium Business
- Backup function: Yes
- Backup features: Cloud, iSCSI LUN
- Buzzer: Yes
- Multilingual support: Yes
- Number of users: 16000 user(s)
- Snapshot: Yes
- Management protocols: SMB/CIFS, AFP, NFS
- Web-based management: Yes
- Share folder access right management: Yes
- Security algorithms: 256-bit AES, FIPS 140-2, HTTPS, SSH, SSL/TLS, TLS
- Access Control List (ACL): Yes
- Reset button: Yes
- On/off switch: Yes
- Built-in FTP server: Yes
- Browser supported: Apple Safari (latest version), Google Chrome (latest version), Microsoft Edge (latest version), Mozilla Firefox (latest version)
- System log: Yes
- Hot spare: Yes
- Disk scan: Yes
- S.M.A.R.T. support: Yes
- Share folder: Thick, Thin
- USB copy function: Yes
Software
- Operating system installed: QuTS hero
- Operating system version: h5.0.0
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Linux operating systems supported: CentOS 7.0, Ubuntu 14.04, openSUSE 12.1, openSUSE 12.2
- Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Ma
- Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
- Other operating systems supported: IBM AIX 7.1, Solaris 10
Power
- Power supply location: Built-in
- Power supply unit (PSU) capacity: 250 W
- Number of power supply units: 1
- Power consumption (typical): 78.574 W
- Power consumption (sleep): 34.906 W
- AC input voltage: 100 - 240 V
Weight & dimensions
- Width: 199.3 mm
- Depth: 279.6 mm
- Height: 188.2 mm
Packaging content
- Cables included: AC, LAN (RJ-45)
- Power cables quantity: 1
- Quick installation guide: Yes
- Number of screws: 28
- Drive tray key included: Yes
Processor special features
- Embedded options available: No
- Enhanced Intel SpeedStep Technology: Yes
- Execute Disable Bit: Yes
- Idle States: Yes
- Intel 64: Yes
- Intel Virtualization Technology (VT-x): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Intel VT-x with Extended Page Tables (EPT): Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -20 - 70 °C
Other features
- Fibre Channel: Yes
