Description

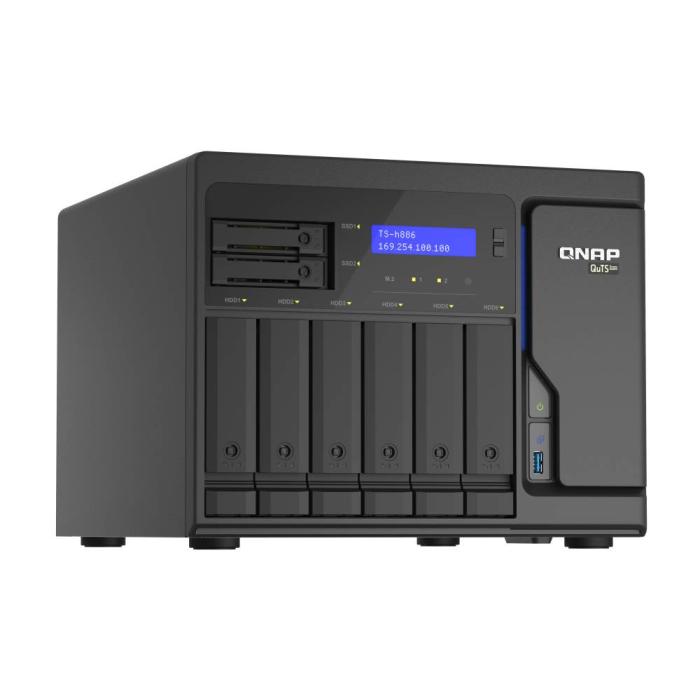

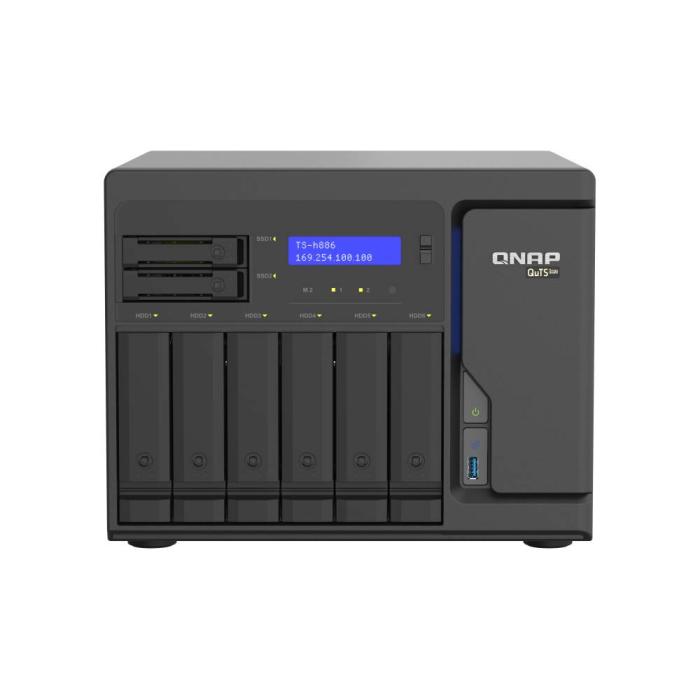

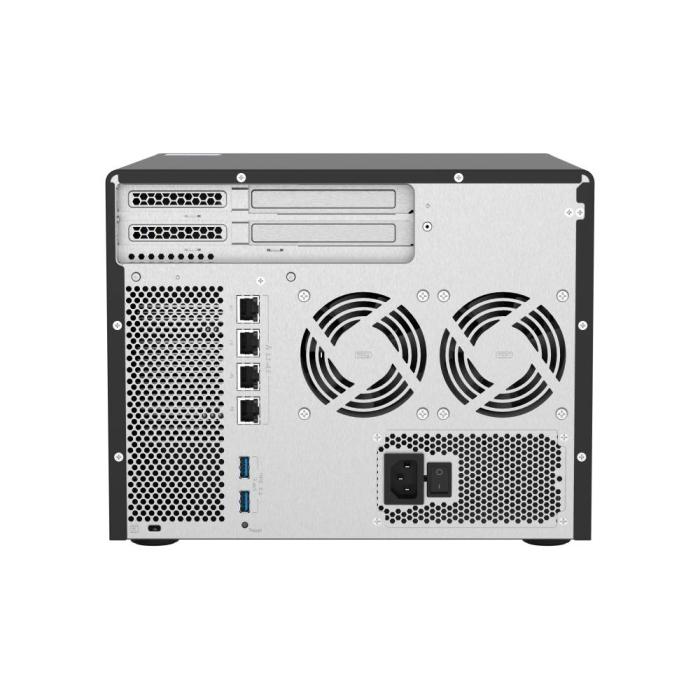

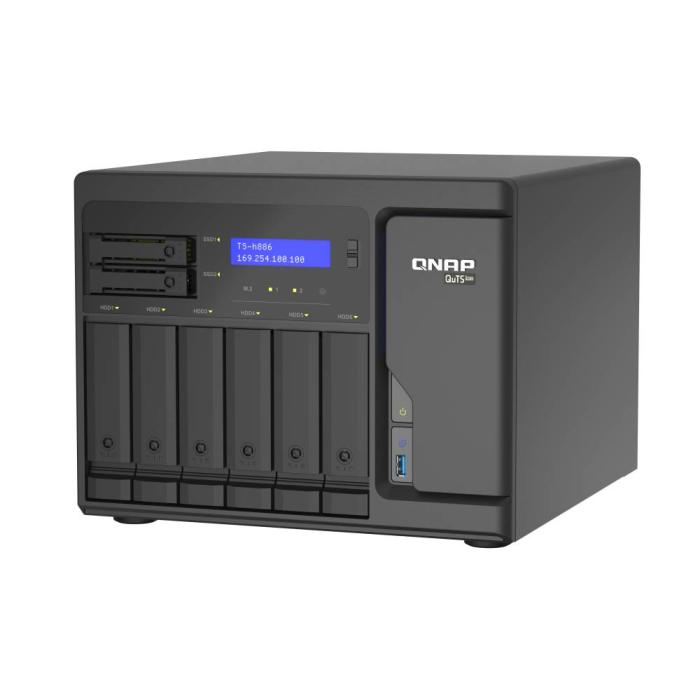

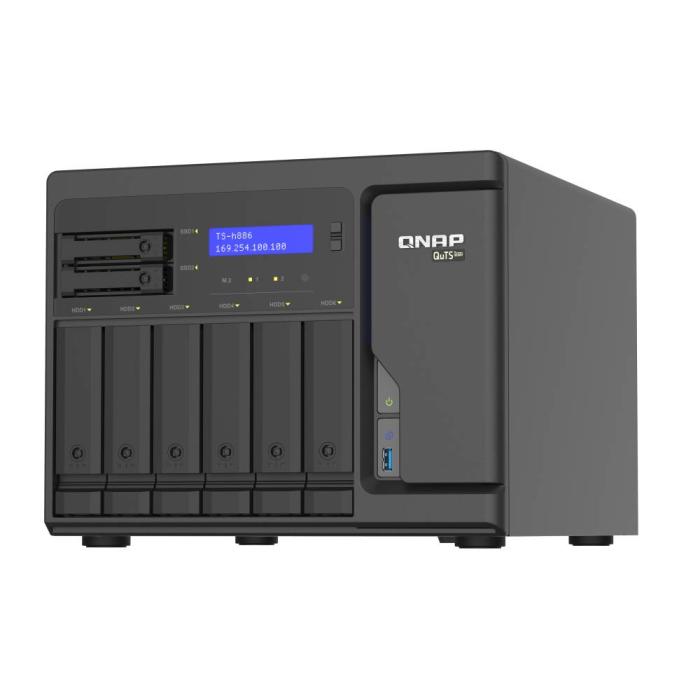

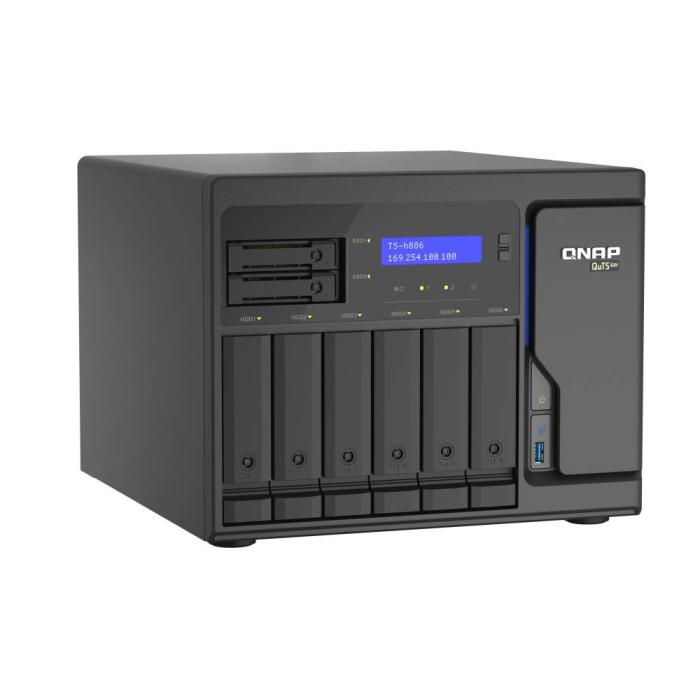

QNAP TS-h886, NAS, Tower, Intel® Xeon® D, D-1602, 8 GB, DDR4
Specifications
Storage
- Supported storage drive interfaces: M.2, Serial ATA II, Serial ATA III
- Storage drive sizes supported: 2.5, 3.5, M.2
- Number of M.2 (M & B) slots: 2
- RAID support: Yes
- RAID levels: 0, 1, 5, 6, 10, 50, 60, JBOD
- Online RAID expansion: Yes
- RAID rebuild: Yes
- Hot-swap drive bays: Yes
- Supported file systems: FAT32, HFS+, NTFS, ZFS, exFAT, ext3, ext4
- Storage drives installed: No
- Total installed storage capacity: 0 TB
- Number of storage drives supported: 8
- Installed storage drive type: No
- Supported storage drive types: HDD & SSD
- Bad block scan: Yes
- Disk roaming: Yes
Processor
- Processor manufacturer: Intel
- Processor family: Intel® Xeon® D
- Processor model: D-1602
- Processor frequency: 2.6 GHz
- Processor boost frequency: 3.2 GHz
- Processor cores: 4
- Processor threads: 8
- Processor cache: 6 MB
- CPU configuration (max): 1
Memory
- Internal memory: 8 GB
- Internal memory type: DDR4
- Maximum RAM supported: 128 GB
- Memory slots: 4
- Memory form factor: UDIMM
- ECC: Yes
- Flash memory: 5000 MB
Network
- Ethernet LAN: Yes
- Ethernet LAN data rates: 10, 100, 1000, 2500 Mbit/s
- DHCP server: Yes
- Jumbo frames support: Yes
- iSCSI support: Yes
- Wake-on-LAN ready: Yes
- Supported network protocols: IPv4, IPv6
- Dynamic DNS (DDNS): Yes
Ports & interfaces
- USB port: Yes
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- Ethernet LAN (RJ-45) ports: 4
- Concurrent connections: 10000
- PCI Express x8 (Gen 3.x) slots: 2
Design
- Chassis type: Tower
- Cooling type: Active
- Product colour: Black
- Number of fans: 3 fan(s)
- Fan diameter: 8 cm
- Fan diameter 2: 9 cm
- LED indicators: M.2, Status, System, USB
- Built-in display: Yes
- Display type: LCD
- Cable lock slot: Yes
- Cable lock slot type: Kensington
Performance
- Type: NAS
- Device class: Home & Home Office
- Backup function: Yes
- Backup features: USB drive, iSCSI LUN
- Buzzer: Yes
- Multilingual support: Yes
- Snapshot: Yes
- Management protocols: SNMP 2/3
- Web-based management: Yes
- Security algorithms: 256-bit AES, AES, FIPS 140-2, HTTPS, SSH, SSL/TLS
- Access Control List (ACL): Yes
- Reset button: Yes
- On/off switch: Yes
- Built-in FTP server: Yes
- Browser supported: Apple Safari, Google Chrome, Microsoft Edge, Mozilla Firefox
- System log: Yes
- Hot spare: Yes
- Disk scan: Yes
- S.M.A.R.T. support: Yes
- Share folder: CIFS/SMB
- Universal Plug and Play (UPnP): Yes
- USB copy function: Yes
Software
- Operating system installed: QuTS hero
- Operating system version: h4.5.1
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Linux operating systems supported: CentOS 7.0, SuSE Linux 12.0, SuSE Linux 12.3, SuSE Linux 15, Ubuntu 14.04
- Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Ma
- Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
- Other operating systems supported: IBM AIX 7.1, IBM AIX 7.2, Solaris 10
Power
- Power supply location: Built-in
- Power supply unit (PSU) capacity: 250 W
- Power consumption (typical): 75.79 W
- AC input voltage: 100 - 240 V
Weight & dimensions
- Width: 292.9 mm
- Depth: 319.8 mm
- Height: 231.9 mm
- Weight: 8.5 kg
- Package weight: 10.1 kg
Packaging content
- Cables included: AC, LAN (RJ-45)
- Power cables quantity: 1
- Quick installation guide: Yes
- Number of screws: 36
- Drive tray key included: Yes
Processor special features
- Embedded options available: No
- Enhanced Intel SpeedStep Technology: Yes
- Execute Disable Bit: Yes
- Idle States: Yes
- Intel 64: Yes
- Intel QuickAssist Technology: No
- Intel Trusted Execution Technology: Yes
- Intel TSX-NI: Yes
- Intel Virtualization Technology (VT-x): Yes
- Intel Virtualization Technology for Directed I/O (VT-d): Yes
- Intel VT-x with Extended Page Tables (EPT): Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage temperature (T-T): -20 - 70 °C
Other features
- Fibre Channel: Yes
