Description

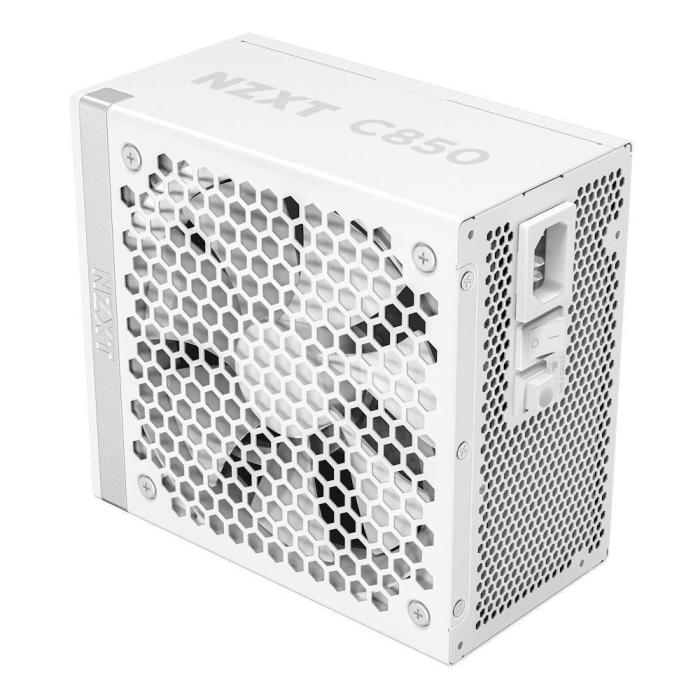

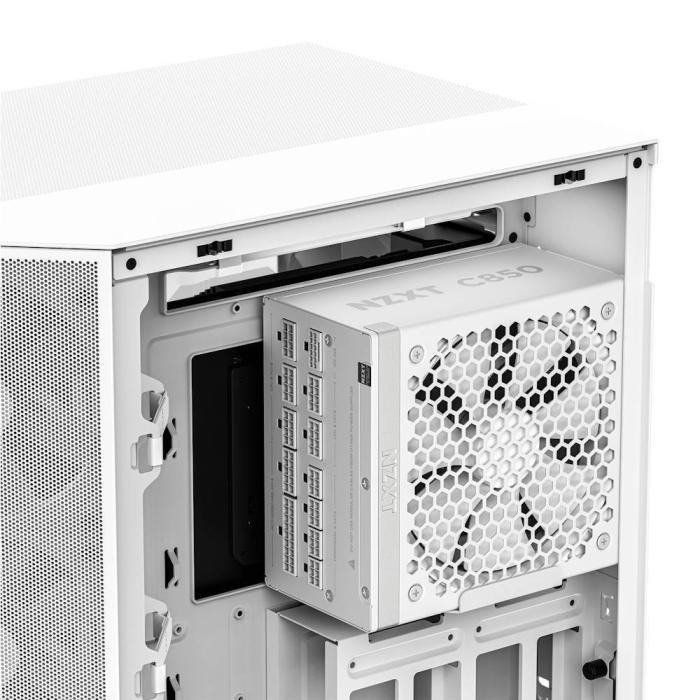

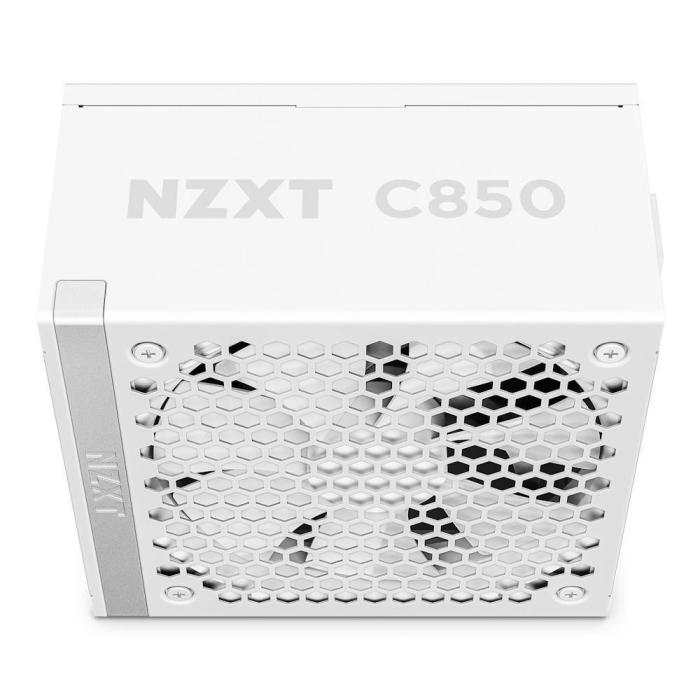

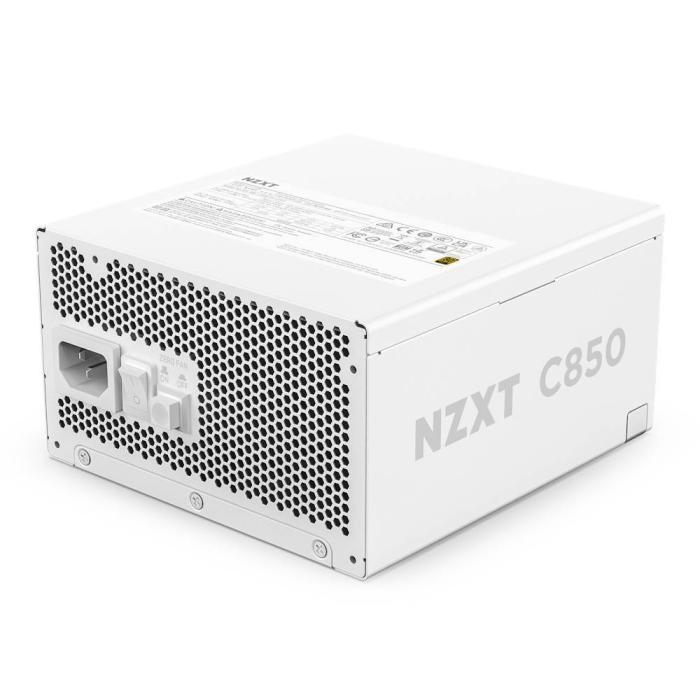

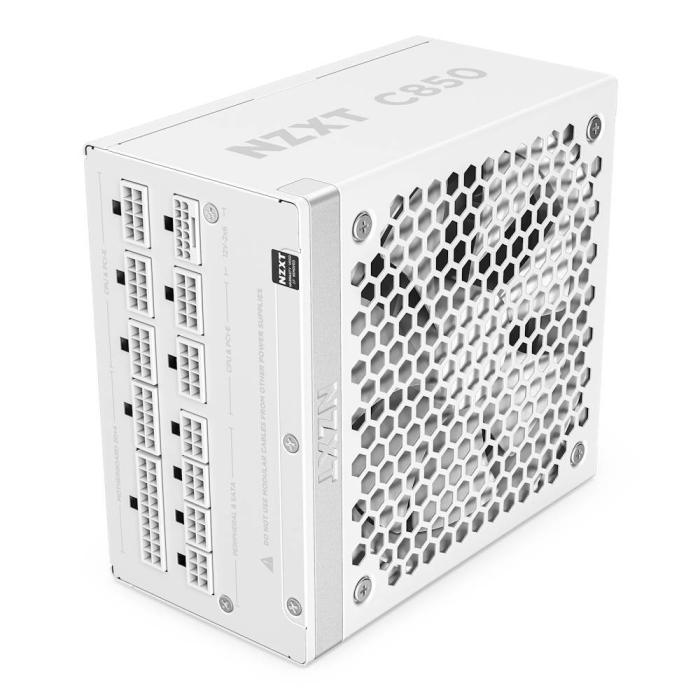

The NZXT C850 Gold ATX 3.1 power supply in white delivers 850 W of power with 91.7% efficiency and active power factor correction. Its fully modular cabling includes a 24-pin ATX connector and a 12+4-pin PCI Express connector, with a 70 cm CPU cable. This model supports an input voltage range of 100 to 240 V and offers protection against overcurrent, overvoltage, overheating, short circuit, and undervoltage. A functional option for builds that require stable and tidy power delivery.
Specifications
Power
- Combined power (+5V): 15 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 22 A
- Max output current (+12V): 70.83 A
- Max output current (+5Vsb): 3 A
- Efficiency: 91.7%
- Power protection features: Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage
- Total power: 850 W
- AC input voltage: 100 - 240 V
- AC input frequency: 50/60 Hz
- Input current: 10 - 5 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 850 W

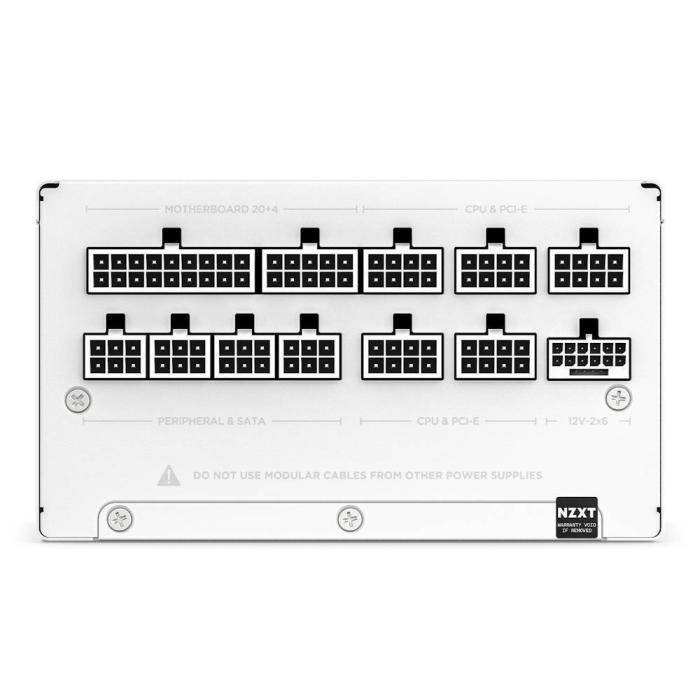

Ports & interfaces
- Motherboard power connector: 24-pin ATX
- Motherboard power cable length: 60 cm
- Number of SATA power connectors: 12
- SATA power cable length: 150, 500 mm
- Peripheral (Molex) power connectors (4-pin): 4
- Peripheral (Molex) power cable length: 150, 500 mm
- PCI Express power connectors (6+2 pin): 3
- PCI Express power connectors (12+4 pin): 1
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 70 cm
- ATX Power connector (24-pin): Yes
- Cabling type: Fully-Modular
Performance
- 80 PLUS certification: 80 PLUS Gold
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 3.1
- EPS version: 2.92
- Noise level: 44.5 dB
- Bearing technology: FDB
- Mean time between failures (MTBF): 100000 h
Design
- Product colour: White
- Cooling type: Active
- Fan diameter: 13.5 cm
- Number of fans: 1 fan(s)
- Fan speed: 0 - 2300 RPM
- Fan location: Top
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
Certificates
- Compliance certificates: BIS, BSMI, CCC, CE, Federal Communications Commission (FCC), KC, RCM, UKCA, cTUVus
Weight & dimensions
- Width: 150 mm
- Depth: 160 mm
- Height: 86 mm
Logistics data
- Warranty period: 10 year(s)
