Description

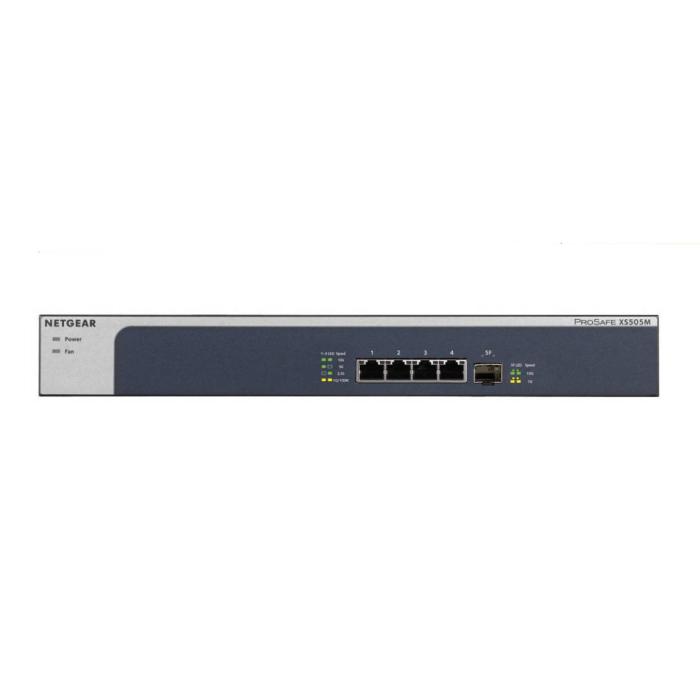

The NETGEAR XS505M switch is an unmanaged device with four 10G Ethernet RJ-45 ports (100/1000/10000) and one SFP+ module slot, designed to expand the network with high-speed connections. It offers 100 Gbit/s switching capacity and 10G support, plus flow control and full duplex transmission for stable performance. It includes 128 MB packet buffer memory and a 2000-entry MAC address table, along with jumbo frames of up to 9000 and Jumbo Frames support. Its grey and silver design includes LED indicators and allows rack mounting, with dimensions of 328 x 43.2 x 169 mm (width x height x depth) and a weight of 1.38 kg. Connection is made via a DC input power socket connector and it features QoS support to prioritise traffic.
Specifications
Management features
- Switch type: Unmanaged
- Quality of Service (QoS) support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 4
- Basic switching RJ-45 Ethernet ports type: 10G Ethernet (100/1000/10000)
- SFP+ module slots quantity: 1

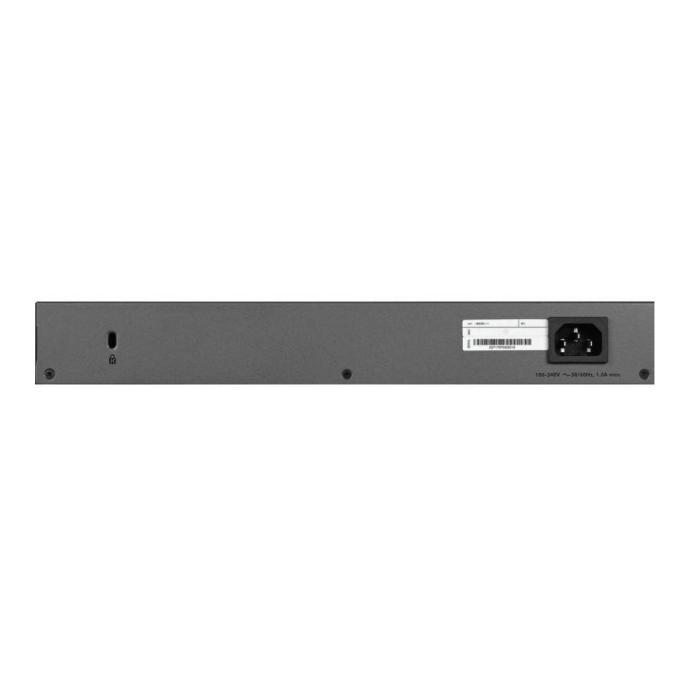

- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ae, IEEE 802.3an, IEEE 802.3aq, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u, IEEE 8
- 10G support: Yes
- Full duplex: Yes
- Flow control support: Yes
Data transmission
- Jumbo frames: 9000
- Packet buffer memory: 128 MB
- Switching capacity: 100 Gbit/s
- MAC address table: 2000 entries
- Jumbo frames support: Yes
Design
- Rack mounting: Yes
- Product colour: Grey, Silver
- LED indicators: Yes
- Safety: CE: CB 60950-1, LVD 60950-1, AUS/NZ: AS/NZS 60950-1, USA: UL 60950-1, SNE VA, BSMI
Performance
- Mean time between failures (MTBF): 1093237 h
Power
- Power source: AC
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 1.5 A
- Power consumption (typical): 12.25 W
- Power consumption (max): 22.5 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 70 °C
- Operating relative humidity (H-H): 0 - 95%
- Storage relative humidity (H-H): 0 - 95%
- Operating altitude: 0 - 3000 m
- Heat dissipation: 85.3 BTU/h
Weight & dimensions
- Width: 328 mm
- Depth: 169 mm
- Height: 43.2 mm
- Weight: 1.38 kg
Certificates
- Certification: 47 CFR FCC, ICES-003:2016 Issue 6, ANSI C63.4:2014, EN 55032:2012+AC2013, EN 55024:2010, EN 61000-3-2:2014, EN 6100-3-3:2013, AS
Logistics data
- Harmonized System (HS) code: 85176990
