Description
The Neomounts LED-VW1000BLACK is a pull-out videowall wall mount, in black, designed to install a single screen between 101.6 cm (40") and 190.5 cm (75"). It supports a maximum weight of 50 kg and is compatible with VESA mounting interfaces from 200 x 200 mm up to 600 x 400 mm. Its distance from the wall is adjustable between 4.9 cm and 22.3 cm, which allows the screen to be moved closer or further away as required. The casing is made of steel and the assembly weighs 7.8 kg. It also accepts a padlock to reinforce the fixing once mounted. It is a solution designed for videowall configurations that require a large screen firmly secured and with room for manoeuvre with respect to the wall.
Specifications
Mounting
- Maximum weight capacity (per display): 50 kg
- Maximum weight capacity: 50 kg
- Minimum screen size: 101.6 cm (40")
- Number of displays supported: 1
- Maximum screen size: 190.5 cm (75")
- Mounting type: Wall
- Minimum VESA mount: 200 x 200 mm
- Maximum VESA mount: 600 x 400 mm
- Panel mounting interface: 600 x 400 mm
Ergonomics
- Distance to the wall (min): 4.9 cm
- Distance to the wall (max): 22.3 cm
Design
- Type: Fixed floor stand
- Product colour: Black
- Housing material: Steel

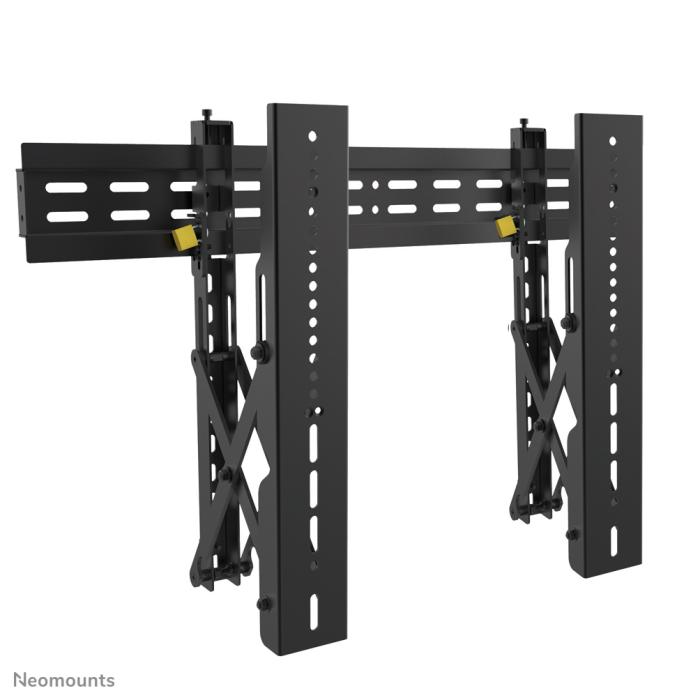

- Accepts padlock: Yes
Weight & dimensions
- Weight: 7.8 kg
Packaging data
- Package width: 112 mm
- Package depth: 115 mm
- Package height: 980 mm
- Package weight: 9.2 kg
Technical details
- Package net weight: 9.19 kg
Other features
- Country of origin: China
Logistics data
- Master (outer) case net weight: 27.6 kg
- Harmonized System (HS) code: 7326909890
- Products per pallet (EU): 48 pc(s)
- Quantity per master (outer) case: 3 pc(s)
- Master (outer) case width: 1010 mm
- Master (outer) case length: 360 mm
- Master (outer) case height: 140 mm
- Master (outer) case gross weight: 27.6 kg
- Products per master (outer) case: 3 pc(s)
