Description

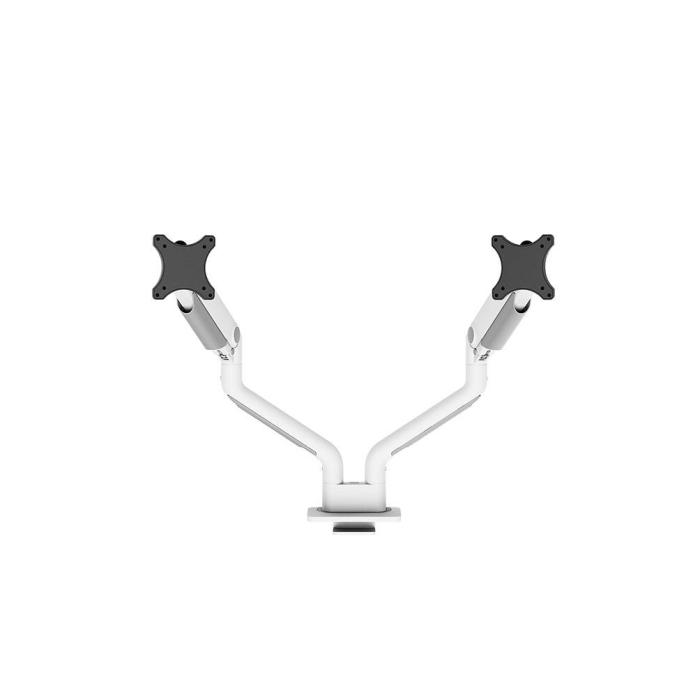

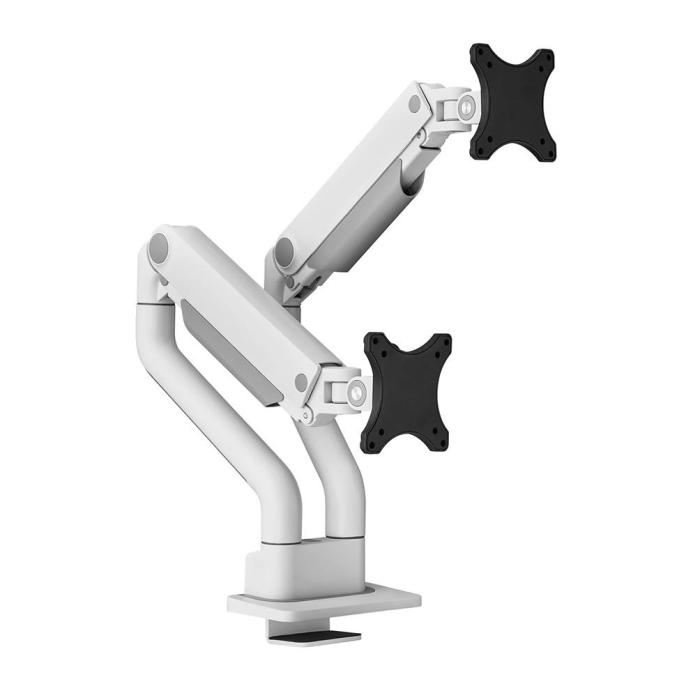

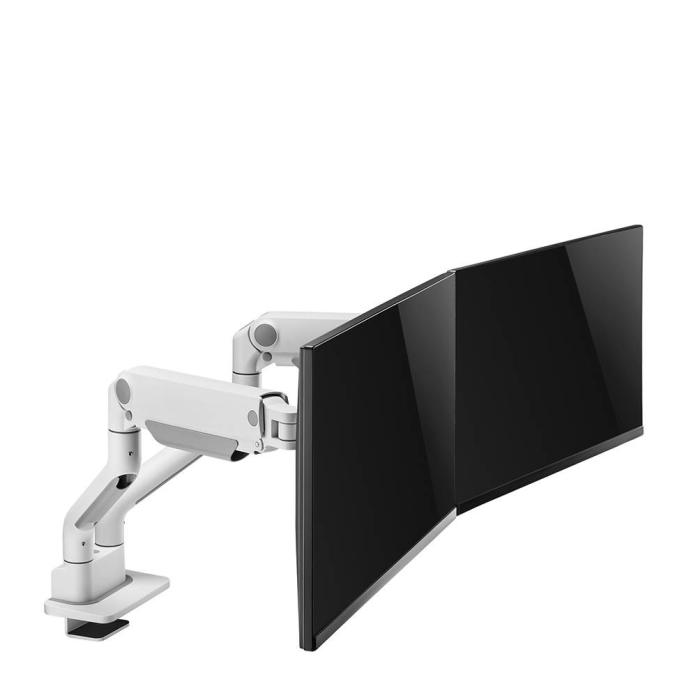

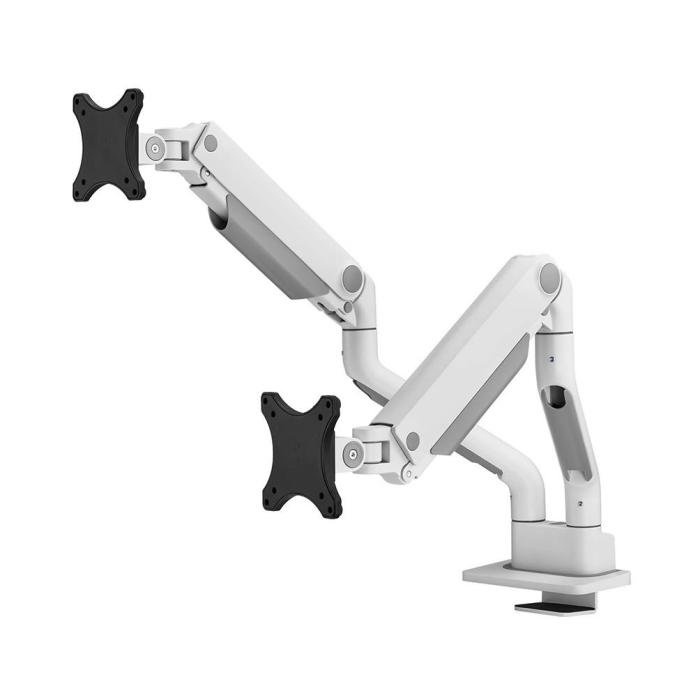

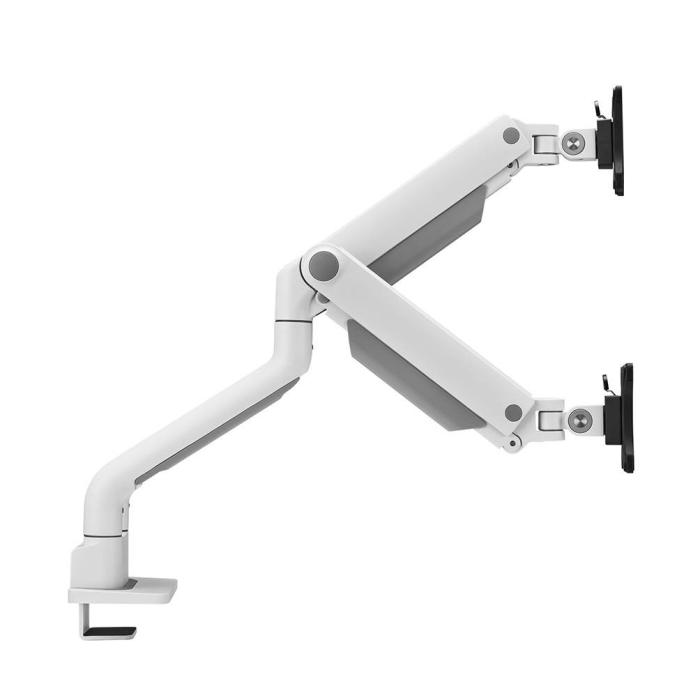

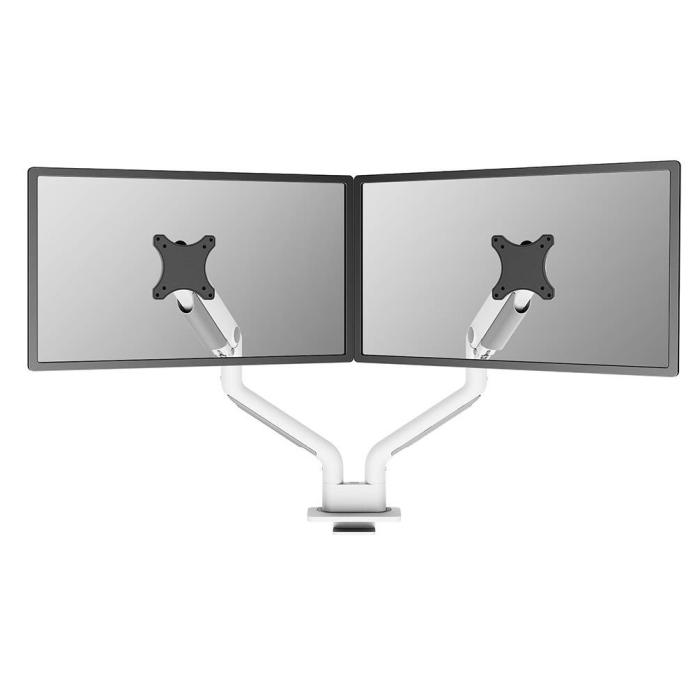

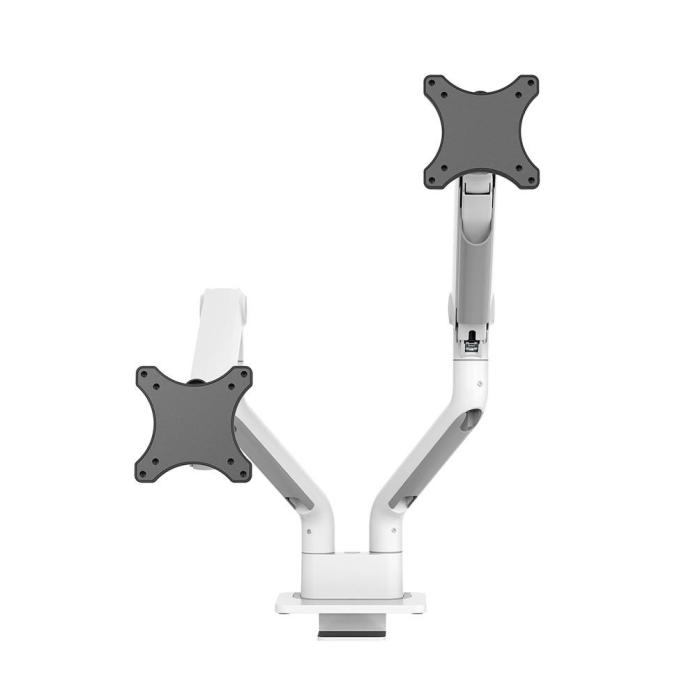

The Neomounts DS70S-950WH2 monitor arm in a white finish supports two screens from 17 to 35 inches via gas spring, with a 180-degree rotation stop and a maximum capacity of 18 kg per display. Compatible with VESA interfaces of 75x75 and 100x100 mm, it attaches to the desk using a clamp or through bolting for thicknesses between 1 and 5.5 cm. Its distance from the wall varies from 11.9 to 65.6 cm, and it offers depth adjustment to adapt the screen position to your workspace. Designed to carry standard screens up to 18 kg or wide-curved ones up to 15 kg, this desk mount facilitates the organisation of a dual setup with smooth and stable movement.
Specifications
Mounting
- Maximum weight capacity (per display): 18 kg
- Maximum weight capacity: 18 kg
- Minimum screen size: 43.2 cm (17")
- Number of displays supported: 2
- Maximum weight capacity (per curved/ultra-wide display): 15 kg
- Maximum screen size: 88.9 cm (35")

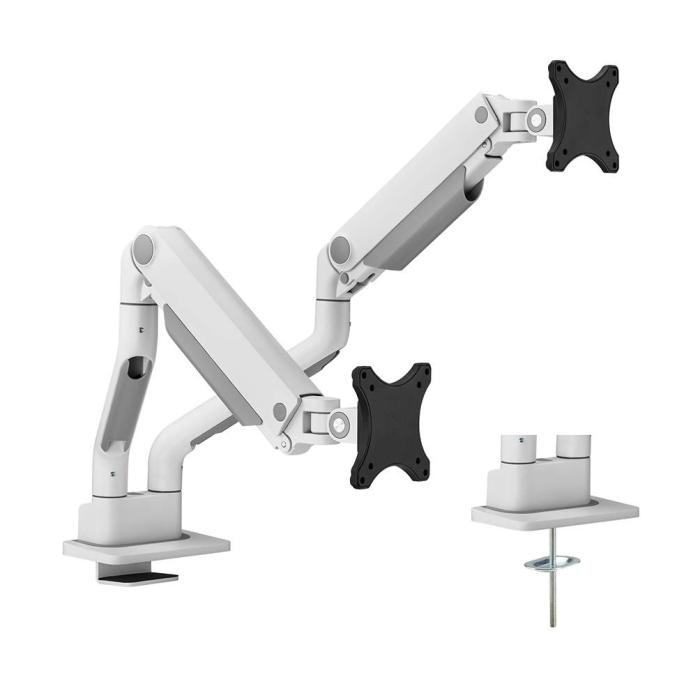

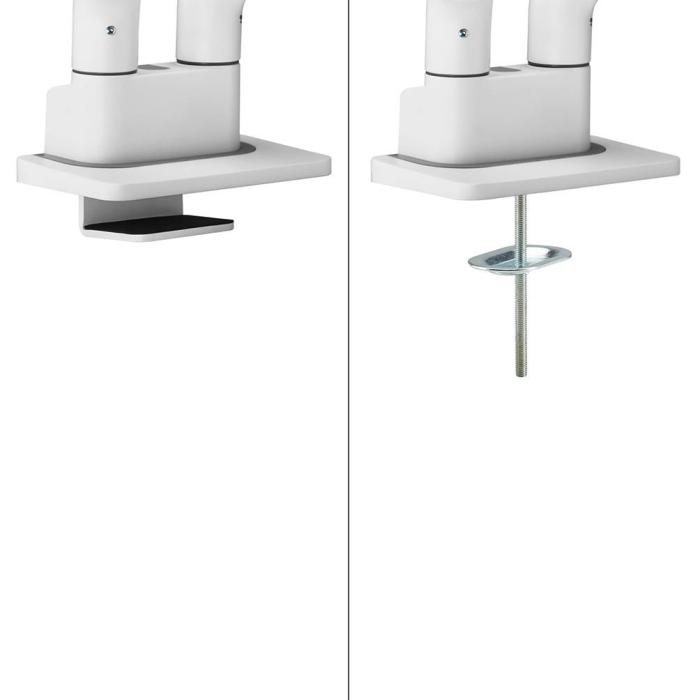

- Mounting: Clamp/Grommet
- Mounting type: Desk
- Minimum VESA mount: 75 x 75 mm
- Maximum VESA mount: 100 x 100 mm
- Panel mounting interface: 100 x 100, 75 x 75 mm
- Desk thickness (min): 1 cm
- Desk thickness (max): 5.5 cm
- Clamp mount desk thickness (max): 5 cm
- Grommet mount desk thickness (max): 5.5 cm
- Distance to the wall (min): 11.9 cm
- Distance to the wall (max): 65.6 cm
Ergonomics
- Width adjustment: 115.9 cm
- Pivot angle: -180 - 180°
- Height adjustment: Yes
- Height adjustment type: Gas spring
- Height adjustment range: 202 - 522 mm
- Adjustable depth: Yes
- Depth adjustment range: 88 - 625 mm
- Tilt adjustment: Yes
- Tilt angle range: -90 - 90°
- Swivelling: Yes
- Swivel angle range: -90 - 90°
- Rotating: Yes
- Angle of rotation: 360°
- Number of arms: 2
- Cable management: Yes
Design
- Housing material: Aluminium
- Product colour: White
- Easy to install: Yes
Weight & dimensions
- Width: 186 mm
- Depth: 656 mm
- Height: 579 mm
- Weight: 6.98 kg

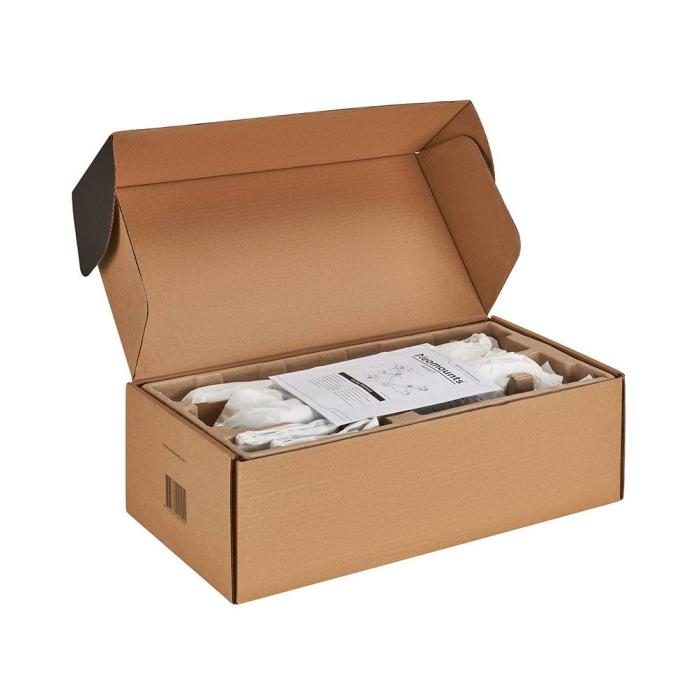

Packaging data
- Package width: 410 mm
- Package depth: 124 mm
- Package height: 496 mm
- Package net weight: 7.9 kg
- Package weight: 7.9 kg
- Package type: Box
Other features
- Minimum weight: 1 kg
- Width adjustment range: 0 - 1159 mm
- Warranty period: 10 year(s)
Logistics data
- Master (outer) case width: 260 mm
- Master (outer) case length: 320 mm
- Master (outer) case height: 505 mm
- Master (outer) case gross weight: 16.3 kg
- Products per master (outer) case: 2 pc(s)
- Country of origin: China
- Master (outer) case net weight: 14 kg
- Harmonized System (HS) code: 7326909890
- Products per pallet (EU): 48 pc(s)
