Description

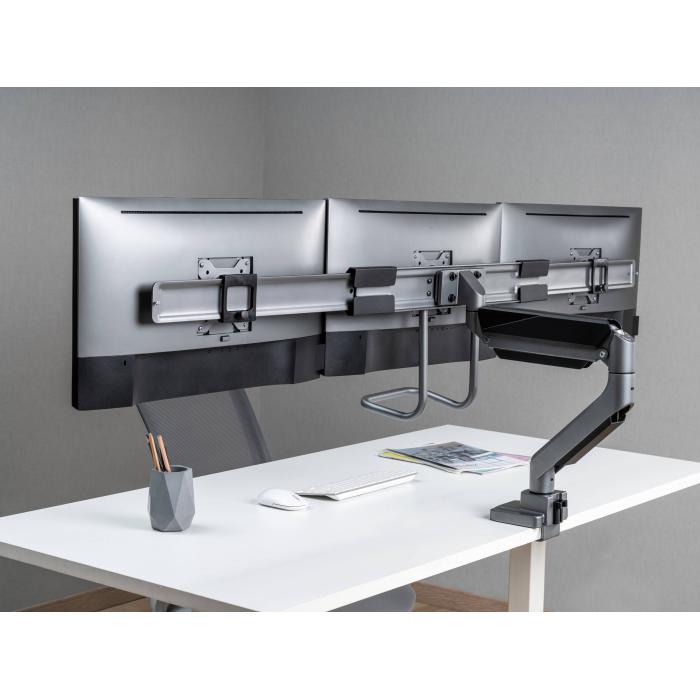

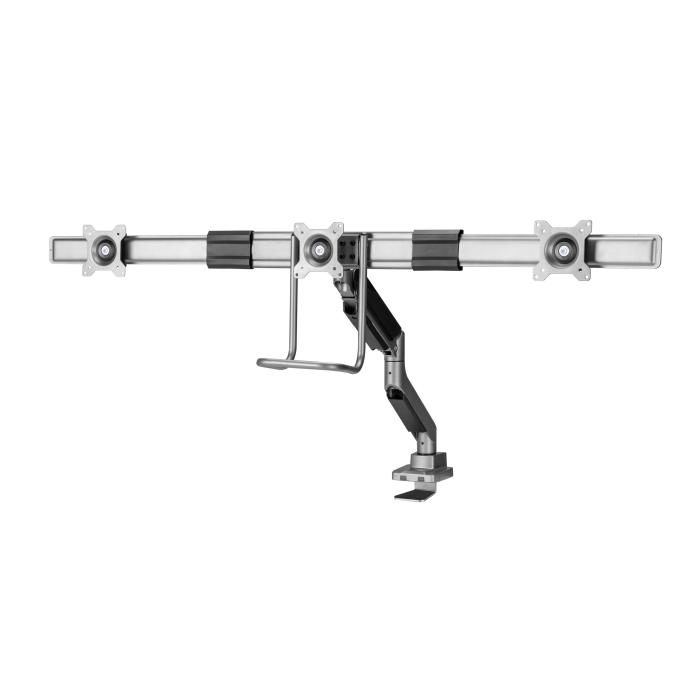

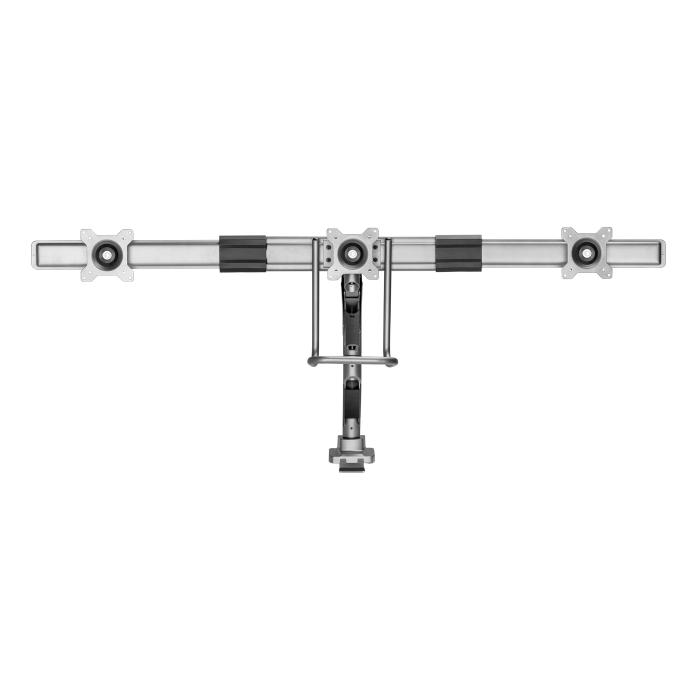

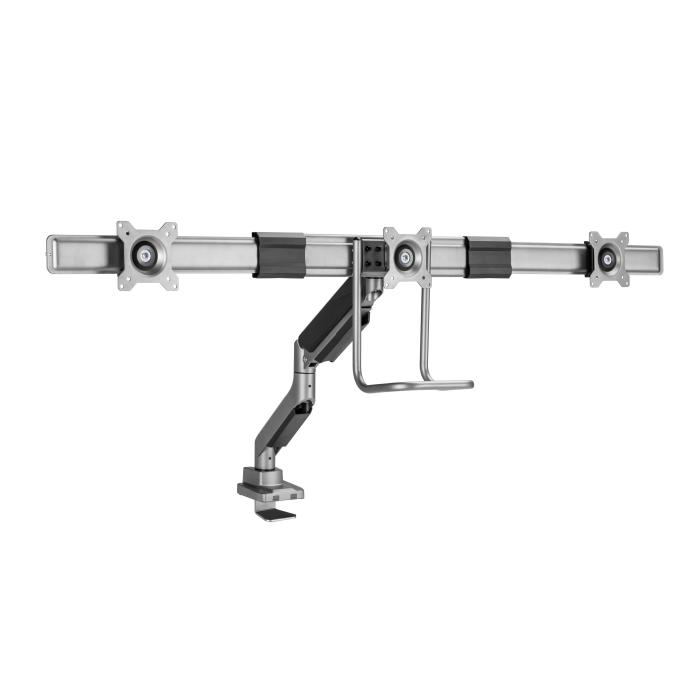

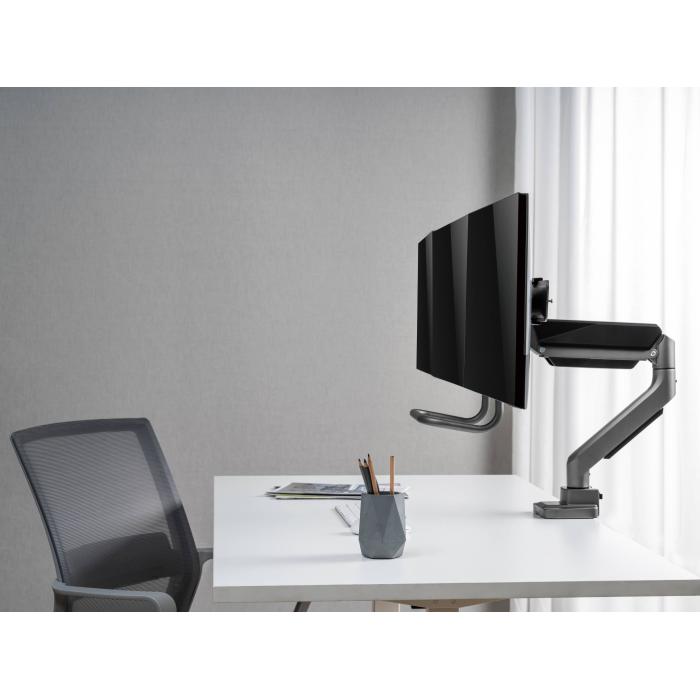

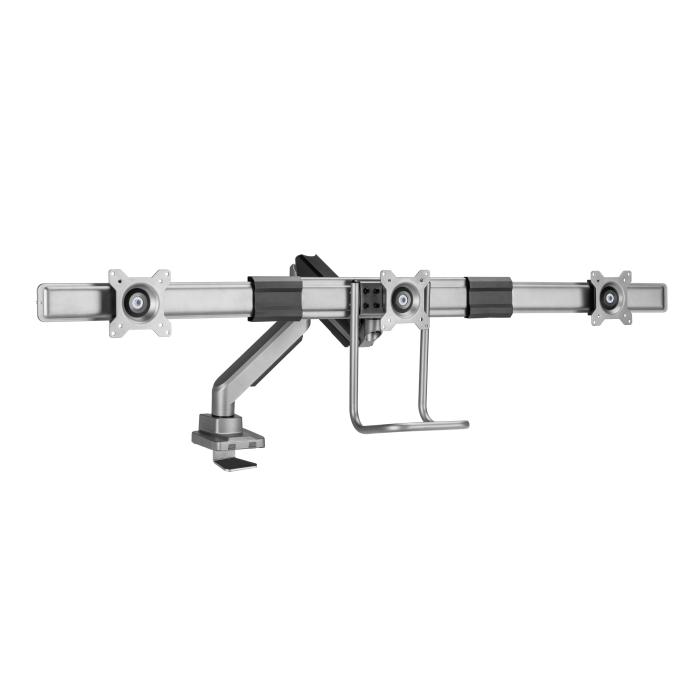

Secure up to three 17 to 27 inch screens to your desk with this EQUIP desktop mount, which installs via clamp or bolt-through and supports VESA 75x75 or 100x100 mm panels. With a capacity of up to 6 kg per display and 12 kg in total, this triple arm includes gas spring height adjustment, tilt and 360-degree rotation, as well as lateral swivel from -10 to 10 degrees to orient each monitor to your liking. Its rotating design and integrated cable management keep the space tidy and make it easy to reposition without effort. The desk base provides stability and freedom to set up a versatile workstation.
Specifications
Mounting
- Maximum weight capacity: 12 kg
- Minimum screen size: 43.2 cm (17")
- Number of displays supported: 3
- Maximum weight capacity (per display): 6 kg
- Maximum screen size: 68.6 cm (27")

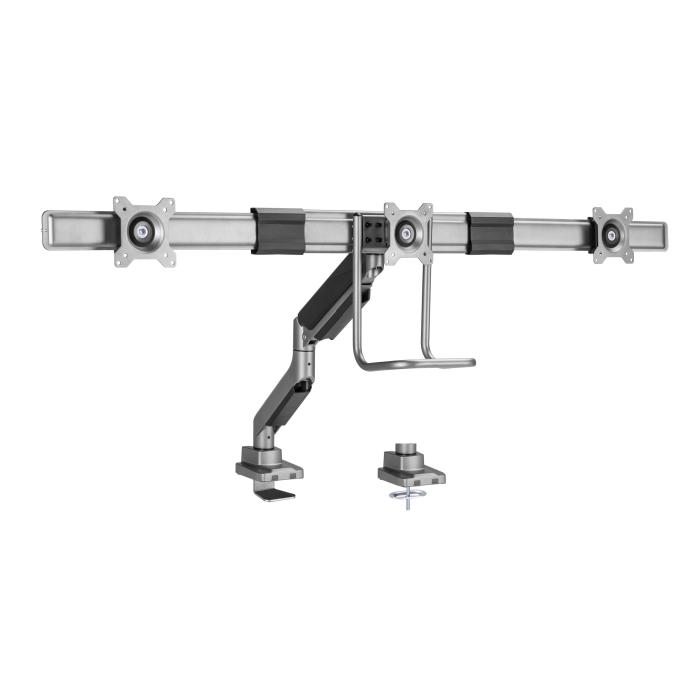

- Mounting: Clamp/Grommet
- Mounting type: Desk

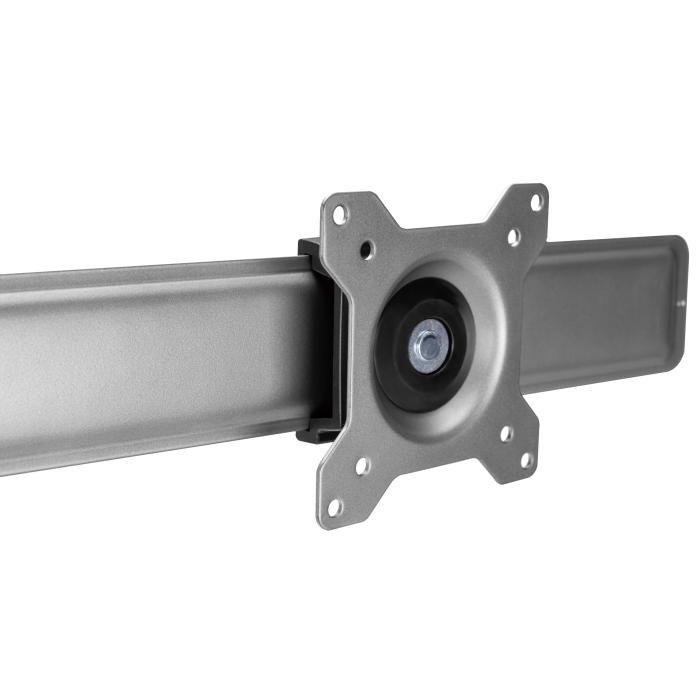

- Minimum VESA mount: 75 x 75 mm
- Maximum VESA mount: 100 x 100 mm
- Panel mounting interface: 75 x 75, 100 x 100 mm
Ergonomics

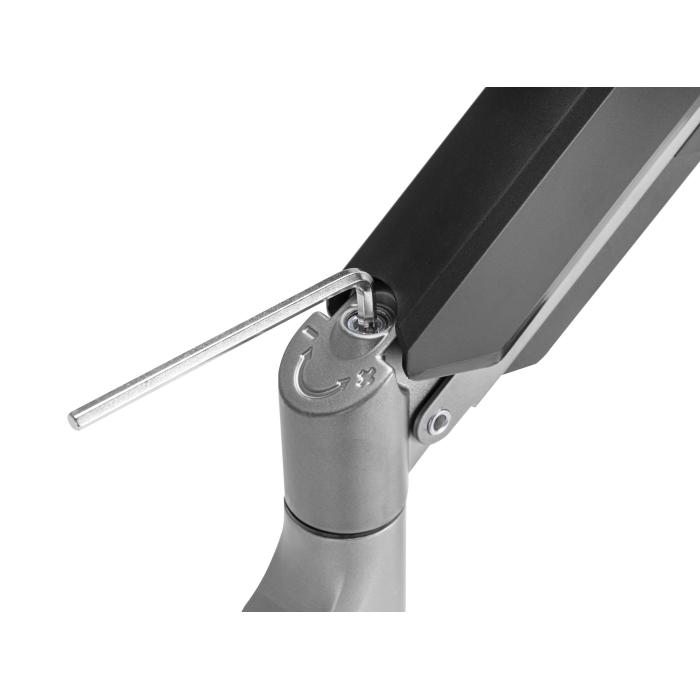

- Height adjustment type: Gas spring
- Tilt adjustment: Yes
- Tilt angle range: -10 - 10°
- Swivelling: Yes
- Swivel angle range: -10 - 10°
- Rotating: Yes
- Angle of rotation: 360°
- Cable management: Yes
- Height adjustment: Yes
Design
- Housing material: Aluminium, Plastic, Stainless steel
- Product colour: Black
Weight & dimensions

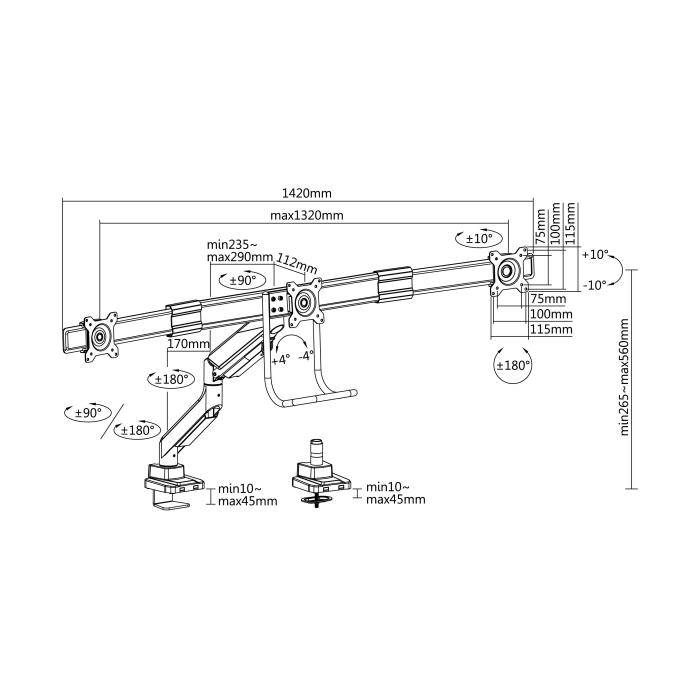

- Width: 1440 mm
- Depth: 695 mm
- Height: 645 mm
- Weight: 8.35 kg
Packaging data
- Package width: 600 mm
- Package depth: 305 mm
- Package height: 160 mm
- Package weight: 9.8 kg
Packaging content
- Screws included: Yes
- Manual: Yes
Sustainability
- Sustainability compliance: Yes
Other features
- Compliance certificates: REACH, RoHS
Logistics data
- Master (outer) case width: 600 mm
- Master (outer) case length: 305 mm
- Master (outer) case height: 160 mm
- Master (outer) case gross weight: 9.8 kg
- Products per master (outer) case: 1 pc(s)
- Country of origin: China
- Harmonized System (HS) code: 8529909090
