Description

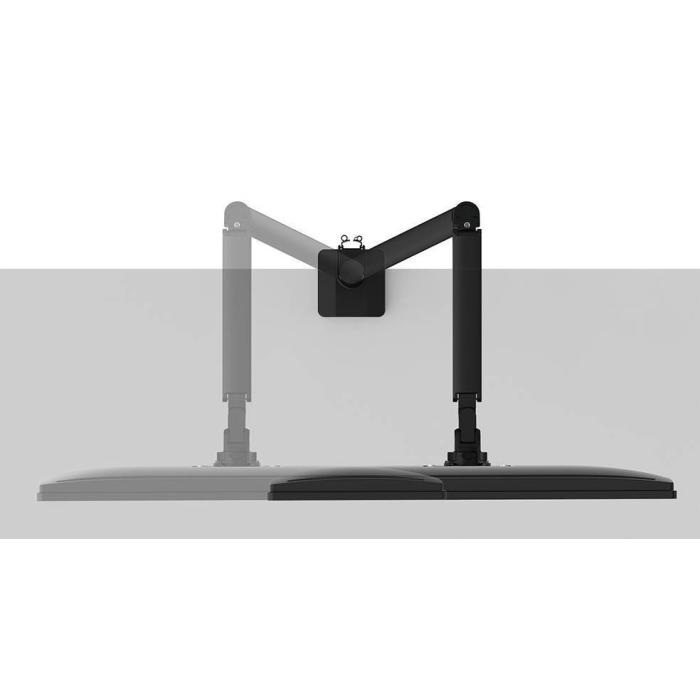

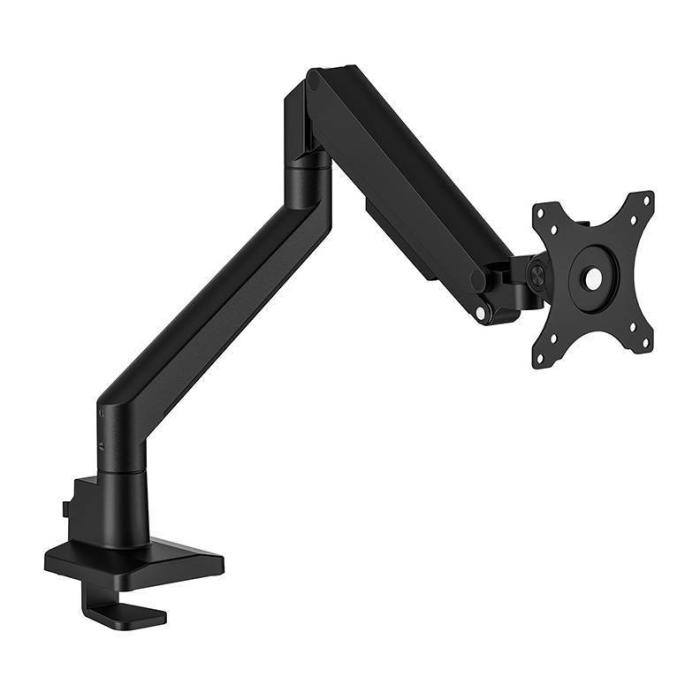

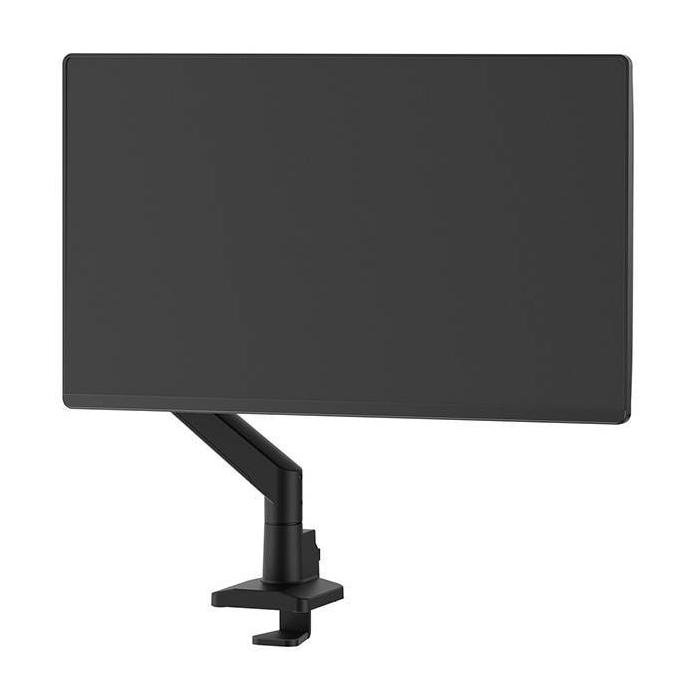

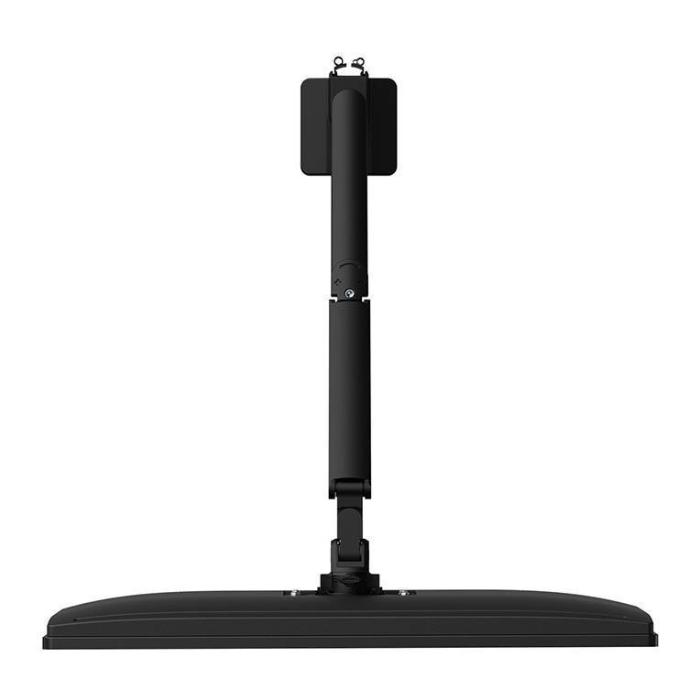

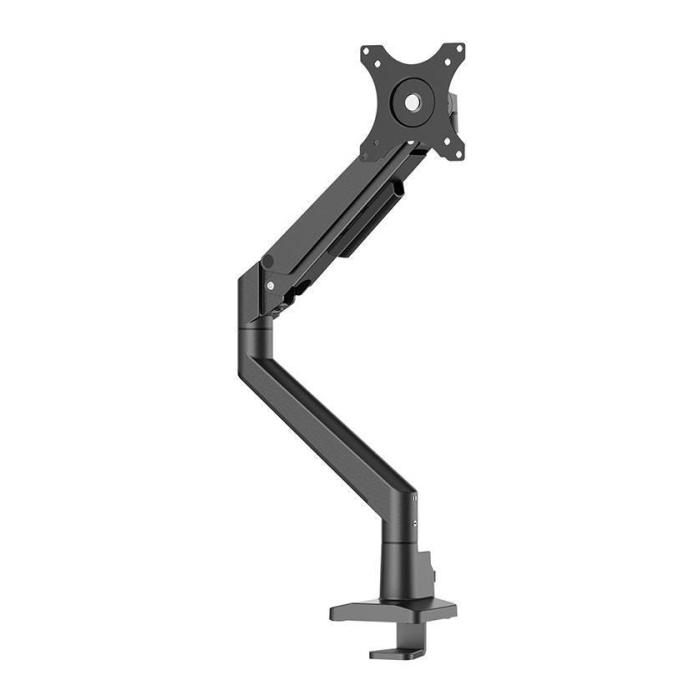

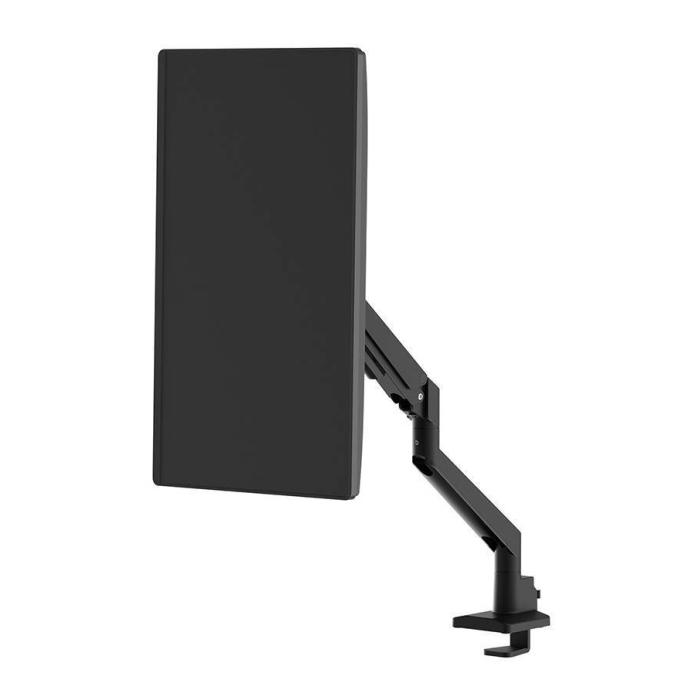

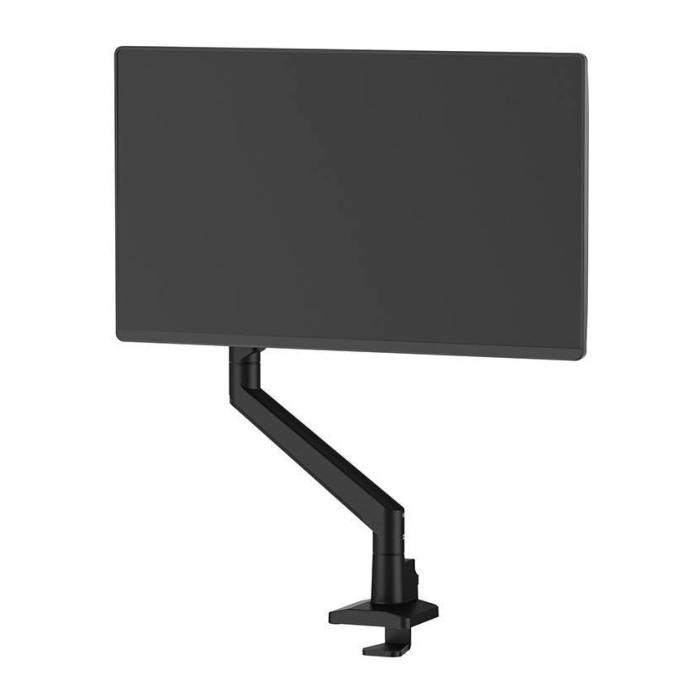

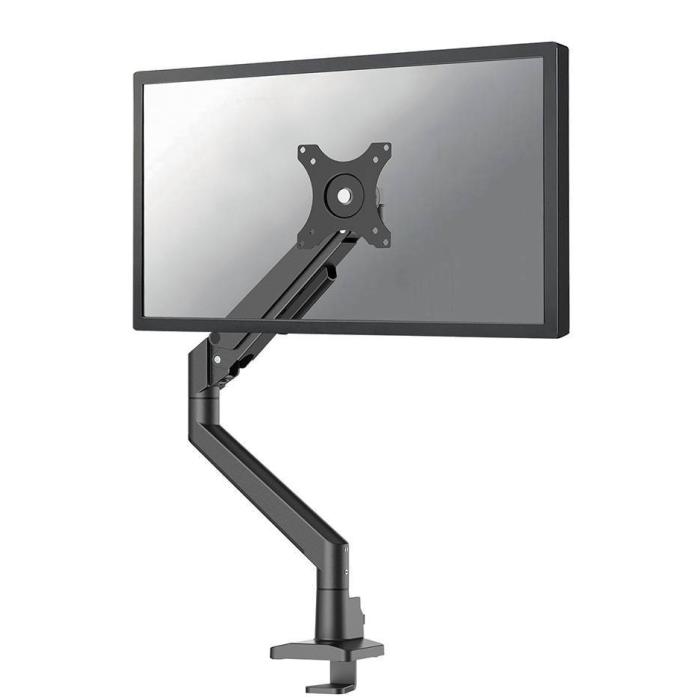

Neomounts DS70-250BL1 monitor arm with gas spring and 180° rotation stop, designed for screens from 17 to 35 inches and a maximum weight of 9 kg, compatible with VESA interfaces of 75x75 and 100x100 mm. This desk mount is fixed via clamp or screw fixing, supports table tops between 1 and 5 cm thick, and allows depth adjustment from 12.5 to 58 cm. Its tilt angle ranges from -45 to 45 degrees, while lateral swivel reaches 90 degrees in each direction, offering versatility to position your monitor according to your posture. With it, you free up space on your desk and maintain an ergonomic position while working or gaming.
Specifications
Mounting
- Maximum weight capacity: 9 kg
- Minimum screen size: 43.2 cm (17")
- Number of displays supported: 1
- Maximum weight capacity (per curved/ultra-wide display): 8 kg
- Maximum screen size: 88.9 cm (35")
- Mounting: Clamp/Grommet
- Mounting type: Desk
- Minimum VESA mount: 75 x 75 mm
- Maximum VESA mount: 100 x 100 mm
- Panel mounting interface: 100 x 100, 75 x 75 mm
- Desk thickness (min): 1 cm
- Desk thickness (max): 5 cm
- Distance to the wall (min): 12.5 cm
- Distance to the wall (max): 58 cm
- Maximum weight capacity (per display): 9 kg
Ergonomics
- Height adjustment: Yes
- Height adjustment type: Gas spring

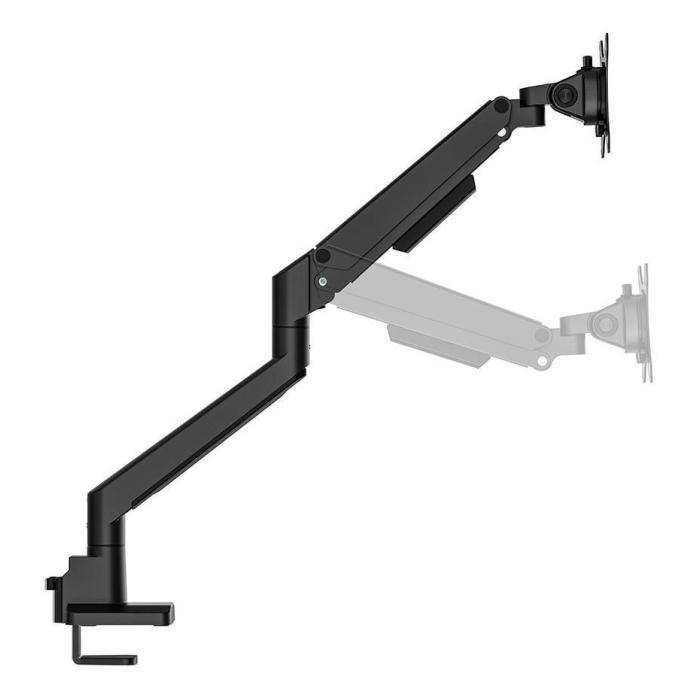

- Height adjustment range: 215 - 495 mm
- Adjustable depth: Yes
- Depth adjustment range: 70 - 525 mm
- Tilt adjustment: Yes

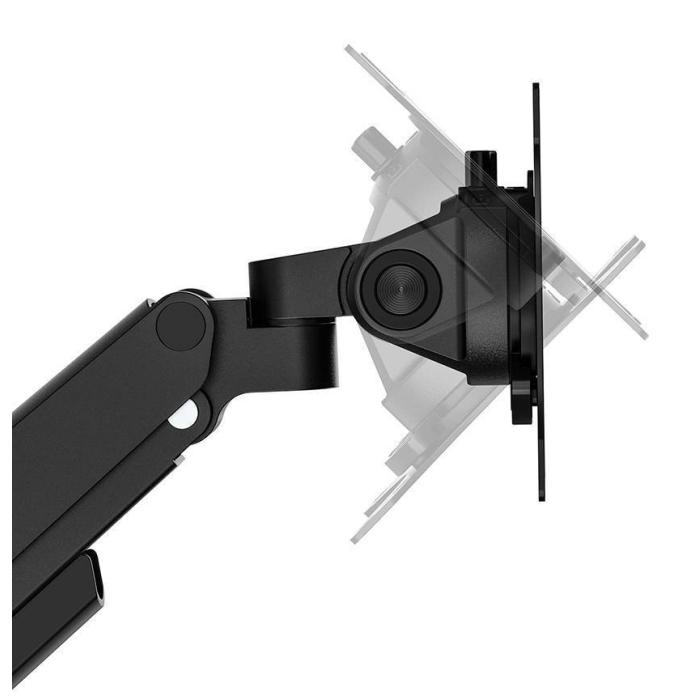

- Tilt angle range: -45 - 45°
- Swivelling: Yes

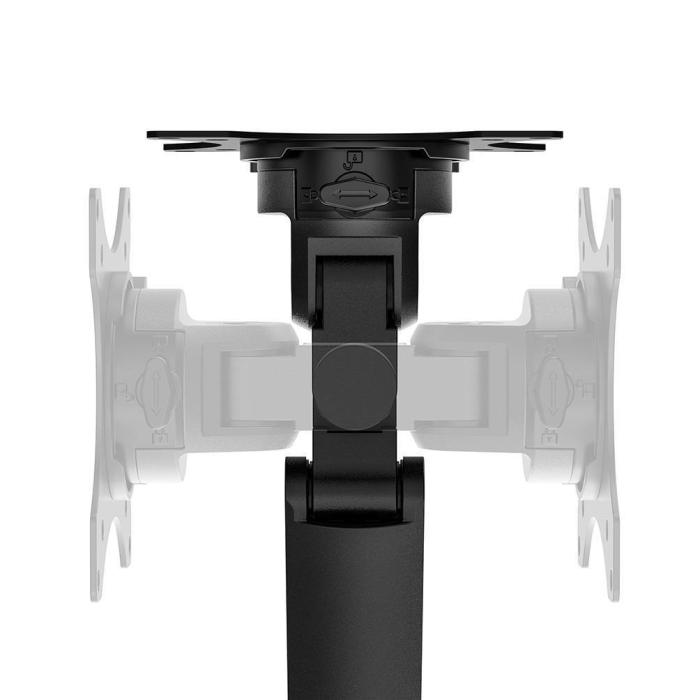

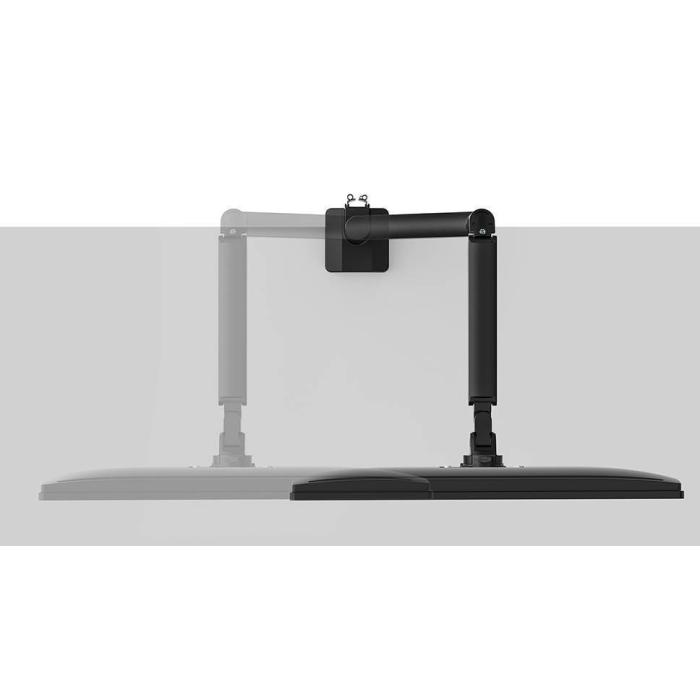

- Swivel angle range: -90 - 90°
- Rotating: Yes
- Angle of rotation: 360°
- Cable management: Yes
- Width adjustment: 91 cm
- Pivot angle: -180 - 180°
Design
- Housing material: Aluminium
- Product colour: Black
- Accepts padlock: No
Weight & dimensions
- Width: 114 mm
- Depth: 580 mm
- Height: 552 mm
- Weight: 2.3 kg

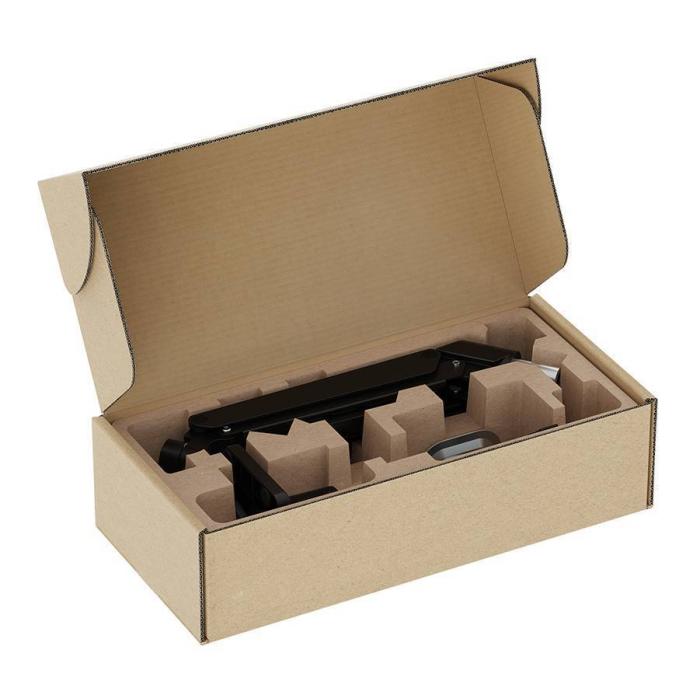

Packaging data
- Package width: 198 mm
- Package depth: 108 mm
- Package height: 428 mm
- Package weight: 2.9 kg
Other features
- Minimum weight: 1 kg
- Width adjustment range: 0 - 910 mm
- Warranty period: 5 year(s)
Logistics data
- Master (outer) case width: 410 mm
- Master (outer) case length: 345 mm
- Master (outer) case height: 445 mm
- Master (outer) case gross weight: 18.3 kg
- Products per master (outer) case: 6 pc(s)
- Country of origin: China
- Master (outer) case net weight: 13.8 kg
- Harmonized System (HS) code: 7326909890
- Products per pallet (EU): 84 pc(s)
