Description
The MSI PRO X870-P WIFI motherboard is a model with an AM5 socket, designed for AMD Ryzen 7 processors and compatible with DDR5-SDRAM memory in four DIMM slots. It supports up to 256 GB of internal memory, with clock speeds of 4800, 5600 and 8200 MHz, and runs in dual channel to take advantage of bandwidth in work and gaming configurations. Its memory compatibility is non-ECC, which suits typical home and creation systems. As for storage, it accepts HDD and SSD drives, allows RAID configuration at levels 0 and 1 and supports up to seven HDDs, with four compatible storage drives in total. The motherboard, in black, offers a solid base for building an AM5 system with room for expansion in memory and drives.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen™ 7
- Supported processor sockets: Socket AM5
- Maximum internal memory supported by processor: 256 GB
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4800, 5600, 8200 MHz
- Supported memory clock speed (max): 8200 MHz
- Maximum internal memory: 256 GB
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 7
- Number of storage drives supported: 4
- RAID support: Yes
- RAID levels: 0, 1
Graphics
- On-board graphics card: No
Internal I/O
- USB 2.0 connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- Total number of SATA connectors: 4
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- EPS power connector (8-pin): Yes

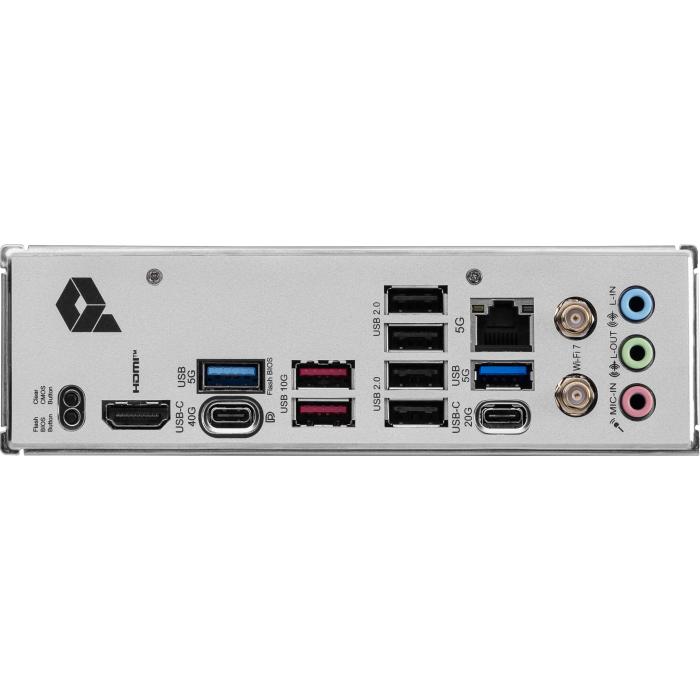

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 2
- Microphone in: Yes
- S/PDIF out port: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 5 Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Bluetooth version: 5.4
Features
- Motherboard chipset: AMD X870
- Audio output channels: 7.1 channels
- Product colour: Black
- PC health monitoring: CPU, Fan, Temperature, Voltage
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 11 x64
Expansion slots
- PCI Express x16 slots: 4
- Number of M.2 (M) slots: 3
Weight & dimensions
- Width: 243.8 mm
- Depth: 304.8 mm
