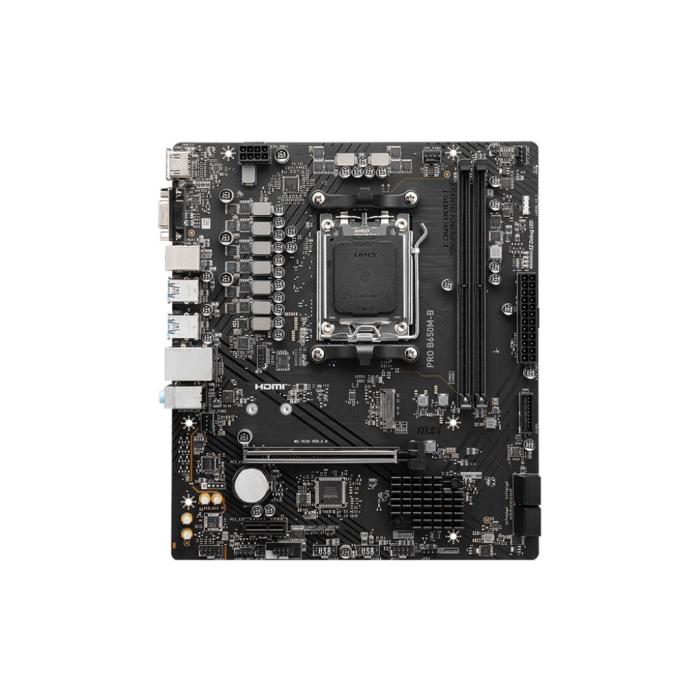

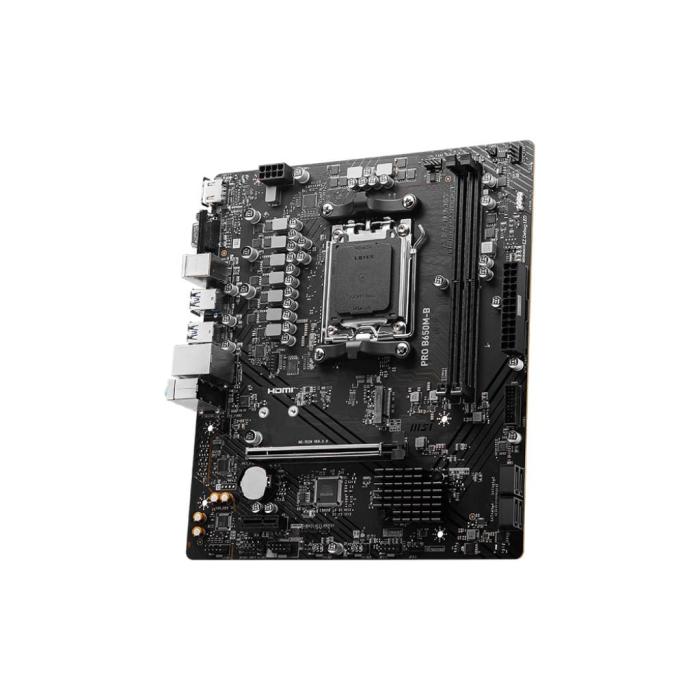

MSI PRO B650M-B motherboard AMD B650 Socket AM5 micro ATX

MSI PRO B650M-B motherboard AMD B650 Socket AM5 micro ATX

Not avaliable

More info

Amount

Brand: MSI

SKU: 104711 PRC: 508698 EAN: 4711377144797 PN: PRO B650M-B

Description

AMD B650, 2x DDR5, 6800MHz, 1x HDMI, 1x VGA, 1x M.2, 4x SATA 6G, mATX

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Compatible processor series: AMD Ryzen 7000 Series
Supported processor sockets: Socket AM5
Maximum internal memory supported by processor: 96 GB

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 2
Supported memory clock speeds: 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
Supported memory clock speed (max): 6800 MHz
Maximum internal memory: 96 GB

Storage controllers

Supported storage drive interfaces: M.2, SATA
RAID levels: 0, 1, 10

Internal I/O

USB 2.0 connectors: 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Chassis intrusion connector: Yes

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
Ethernet LAN (RJ-45) ports: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4
Headphone outputs: 1
Line-in: Yes
Microphone in: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet
LAN controller: Realtek RTL8125-BG
Wi-Fi: No

Features

Motherboard chipset: AMD B650
Audio chip: Realtek ALC897
Audio output channels: 7.1 channels
PC health monitoring: Fan
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11 x64

Expansion slots

PCI Express x16 (Gen 3.x) slots: 1
Number of M.2 (M) slots: 1

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
ACPI version: 6.4
System management BIOS (SMBIOS) version: 3.5

Weight & dimensions

Width: 215 mm
Depth: 243.8 mm
