Description

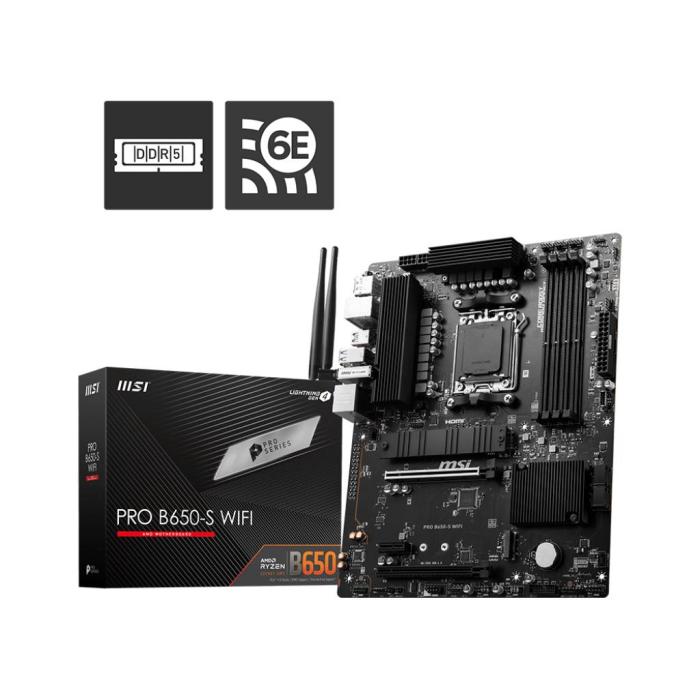

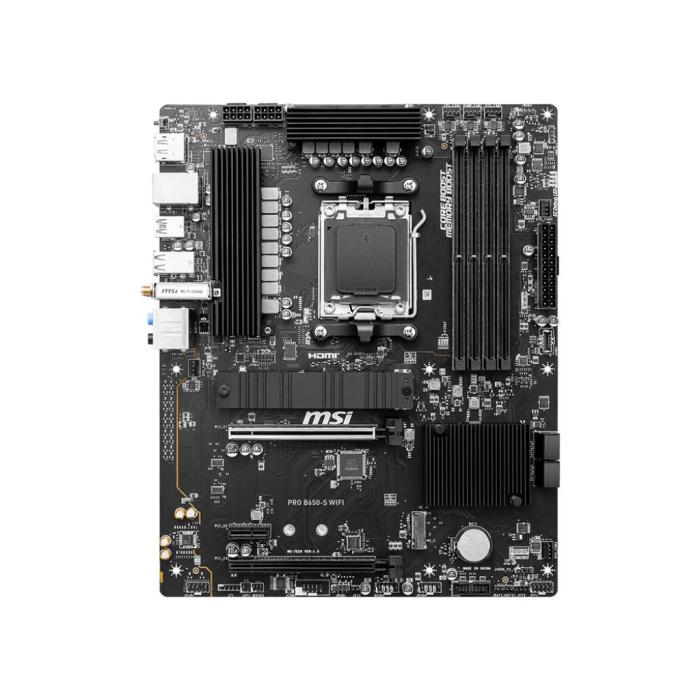

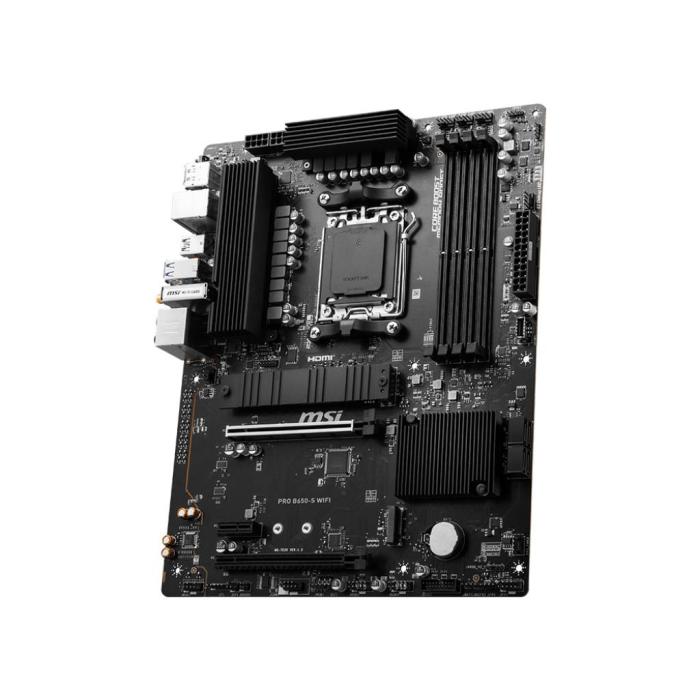

The MSI PRO B650-S WIFI motherboard is designed for AMD Ryzen 7000 Series processors on the AM5 socket. It supports up to 192 GB of DDR5 memory across its four slots, with clock speeds reaching 7200 MHz. It offers integrated WiFi wireless connectivity and features internal connectors such as USB 2.0, front panel audio and a 24-pin ATX power connector, plus a CPU fan connector. In the storage department, it supports M.2 and SATA interfaces along with RAID 0 and 1 configurations. Its ATX form factor facilitates installation in compatible cases, and non-ECC memory compatibility orients it towards conventional desktop systems.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series
- Supported processor sockets: Socket AM5
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800 MHz
- Supported memory clock speed (max): 7200 MHz
- Maximum internal memory: 192 GB
Storage controllers
- Supported storage drive interfaces: M.2, SATA
- RAID levels: 0, 1
Internal I/O
- USB 2.0 connectors: 4
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Chassis intrusion connector: Yes

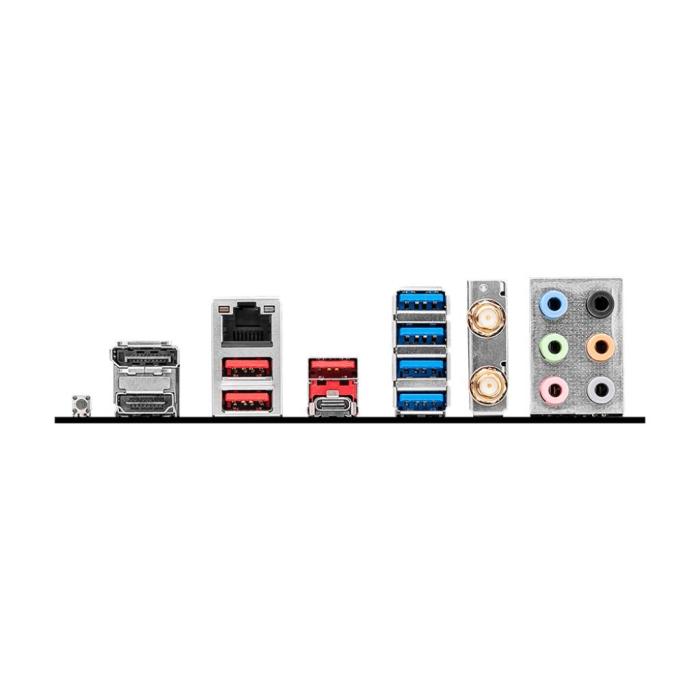

Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Realtek RTL8125-BG
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.3
Features
- Motherboard chipset: AMD B650
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- PC health monitoring: Fan
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 11 x64
Expansion slots
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 2
Weight & dimensions
- Width: 243.8 mm
- Depth: 304.8 mm
