Description

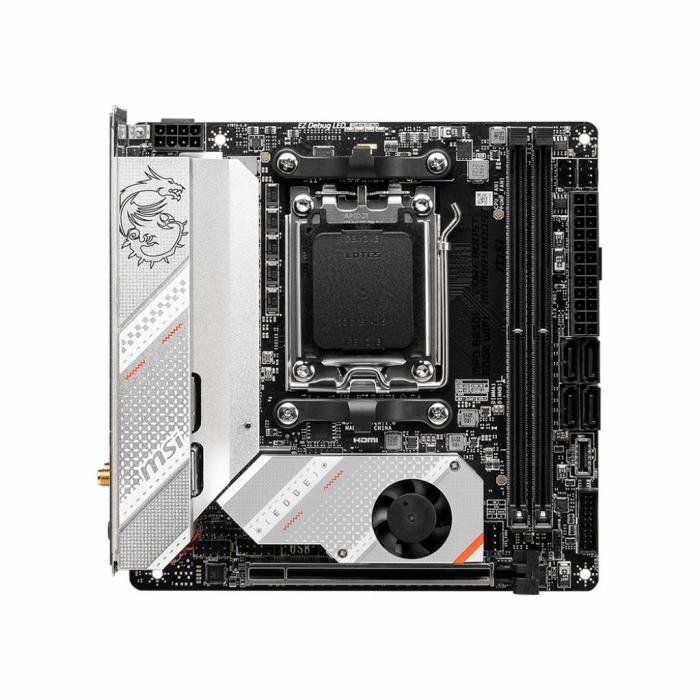

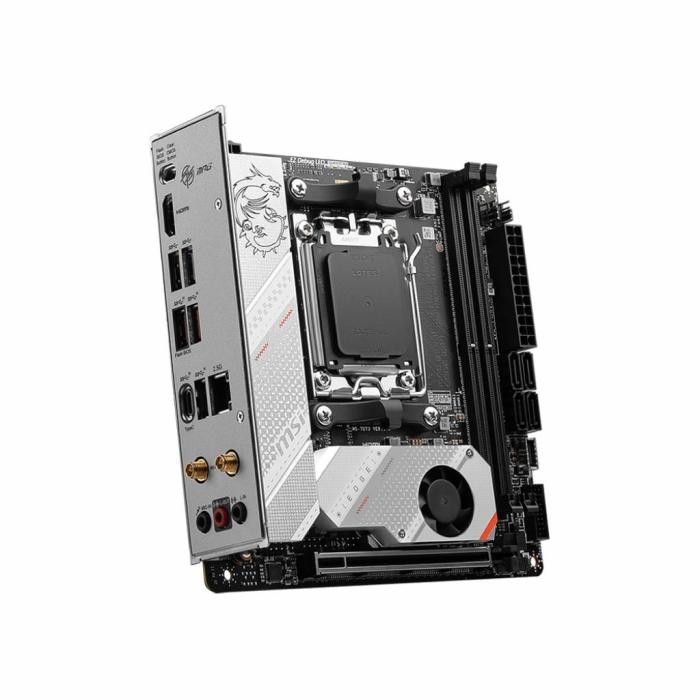

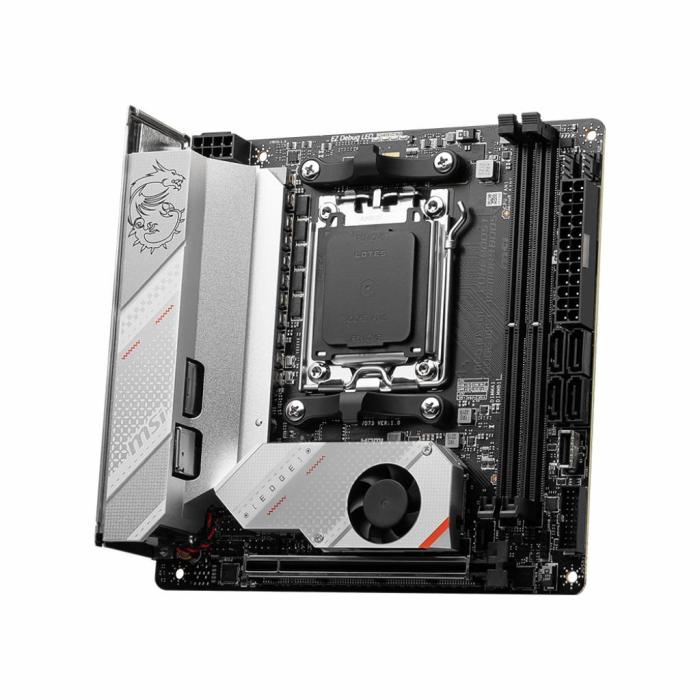

MSI MPG B650I EDGE WIFI motherboard in mini-ATX form factor for building a compact system with AMD Ryzen 7000 Series processors on the AM5 socket. It features two memory slots that accept non-ECC DDR5-SDRAM modules and support up to 64 GB of RAM, sufficient for demanding workloads. It includes RAID support at levels 0, 1, and 10 on its two SATA III connectors, as well as M.2 interfaces, and features a 24-pin ATX power connector, two USB 3.2 Gen 1 connectors, and a CPU fan header; front panel audio and chassis intrusion detection are also covered. It does not include integrated graphics, so you will need a dedicated graphics card for video output.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Compatible processor series: AMD Ryzen 7000 Series
- Supported processor sockets: Socket AM5
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400 MHz
- Maximum internal memory: 64 GB
Storage controllers
- Supported storage drive interfaces: M.2, SATA
- RAID support: Yes
- RAID levels: 0, 1, 10
Graphics
- On-board graphics card: No
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- Front panel connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Chassis intrusion connector: Yes

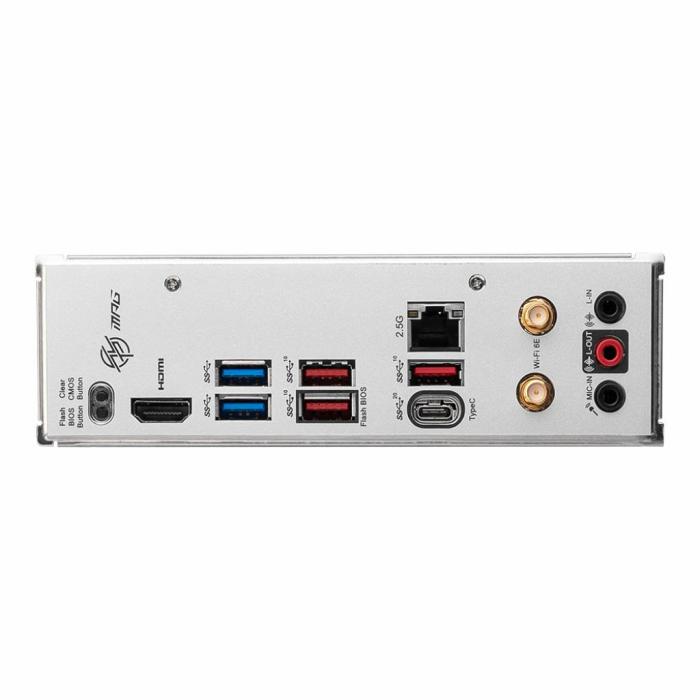

Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 3
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Realtek RTL8125B
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: Wi-Fi 6E (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.2
Features
- Motherboard chipset: AMD B650
- Audio chip: Realtek ALC4080
- Audio output channels: 7.1 channels
- Product colour: Aluminium, Black
- PC health monitoring: Fan
- Component for: PC
- Motherboard form factor: mini ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 10 x64
Expansion slots
- PCI Express x16 (Gen 3.x) slots: 1
- Number of M.2 (M) slots: 2
Weight & dimensions
- Width: 170 mm
- Depth: 170 mm
