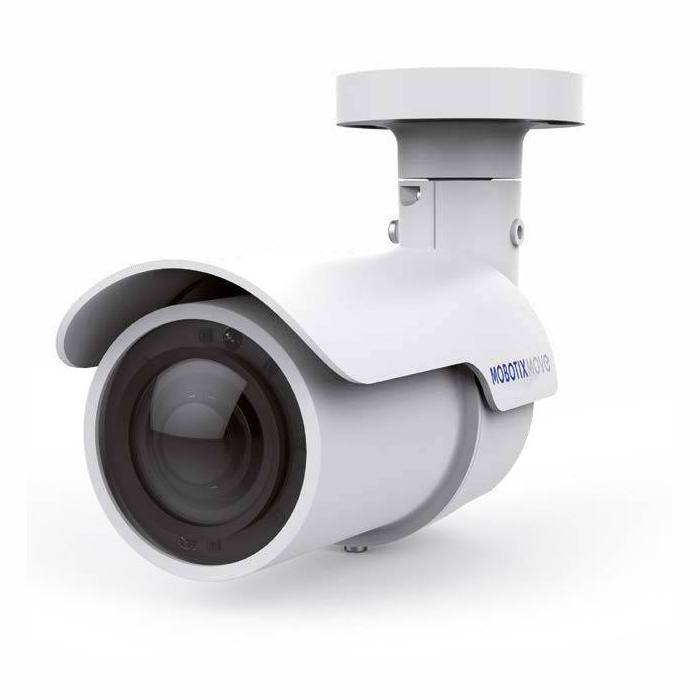

Name: Mobotix BC-4-IR-D Bullet IP security camera Indoor & outdoor Ceiling/wall
Brand: MOBOTIX
Availability: OutOfStock

Mobotix BC-4-IR-D Bullet IP security camera Indoor & outdoor Ceiling/wall

Not avaliable

Amount

Brand: MOBOTIX

SKU: 84535 PRC: 285746 EAN: 4047438034388 PN: mx-bc1a-4-ir-d

Description

Specifications

Performance

Type: IP security camera
Placement supported: Indoor & outdoor
Connectivity technology: Wired
Wide Dynamic Range (WDR): Yes
Day/night mode: Yes
Infrared (IR) cut-off filter: Yes
Alarm input/output: Yes
Certification: CE/FCC, LVD

Design

Form factor: Bullet
Mounting type: Ceiling/wall
Product colour: Black, White
Housing material: Metal, Plastic
International Protection (IP) code: IP66
IK code: IK10
Weatherproof: Yes

Camera

Camera pan control: No
Camera tilt control: No
Minimum illumination: 0.01 lx
Lens viewing angle, horizontal: 35°
Lens viewing angle, vertical: 20°
Camera shutter speed: 1 - 1/100000 s

Image sensor

Number of sensors: 1
Optical sensor size: 25.4 / 3 mm (1 / 3")
Progressive scan: Yes
Sensor type: CMOS
Number of effective pixels (H x V): 2688 x 1512 pixels

Lens system

Zoom capability: Yes
Number of lenses: 1
Focal length range: 9 - 22 mm
Focus: Motorized
Maximum aperture number: 1.6

Night vision

Night vision: Yes
Night vision distance: 40 m
LED type: IR

Video

Total megapixels: 4 MP
Video compression formats: H.264, M-JPEG
Supported video modes: 1080p
Frame rate: 30 fps
Video streaming: Yes
Noise reduction: Yes
Noise reduction technology: 3D noise reduction
Image quality adjustment: Brightness, Contrast, Sharpness
Privacy masking: Yes
Text caption overlay: Yes

Audio

Audio system: 2-way
Audio input channels: 1 channels
Audio output channels: 1 channels
Audio formats supported: AAC, LPCM
Voice codecs: G.711, G.726
Audio detection: Yes

Network

Ethernet LAN: Yes
Ethernet interface type: Fast Ethernet
Networking standards: IEEE 802.1x, IEEE 802.3af
Supported network protocols: ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS
Wi-Fi: No
Bluetooth: No
Quality of Service (QoS) support: Yes

Storage

Built-in HDD: No
Card reader integrated: Yes
Compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC

Ports & interfaces

Ethernet LAN (RJ-45) ports: 1
Microphone in: Yes
Headphone outputs: 1

Security

Video motion detection: Yes
Active tampering alarm: Yes
IP address filtering: Yes
HTTPS encryption: Yes
Alert notification type: E-mail

Power

Power source type: DC, PoE
Power consumption (max): 13.68 W
DC output voltage: 12
DC output current: 2.12 A

Operational conditions

Operating temperature (T-T): -30 - 60 °C
Storage temperature (T-T): -20 - 70 °C
Operating relative humidity (H-H): 10 - 90%

Weight & dimensions

Diameter: 9.2 cm
Length: 220 mm
Weight: 780 g

Packaging content

Number of cameras: 1

Logistics data

Harmonized System (HS) code: 85258900
