Description

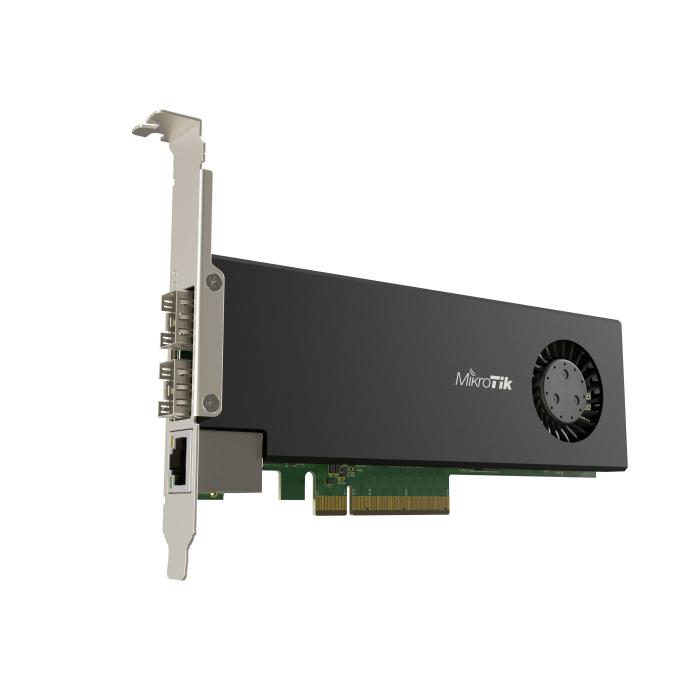

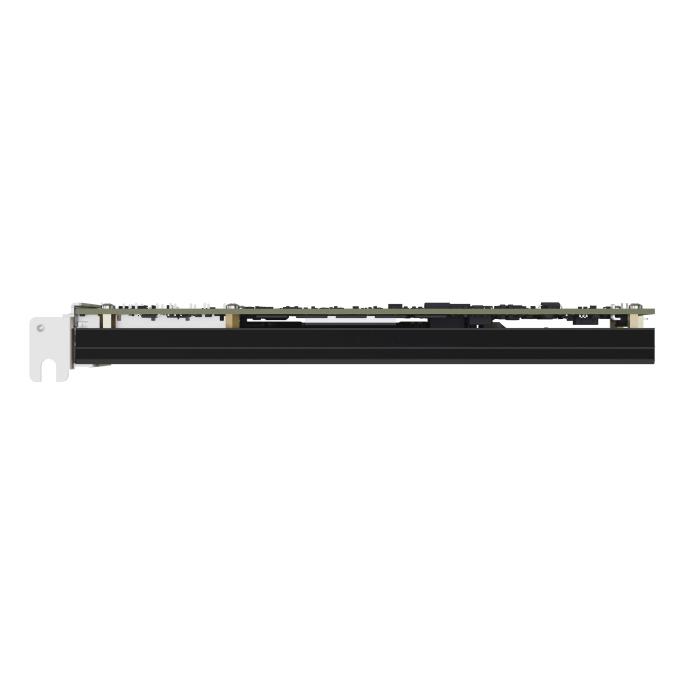

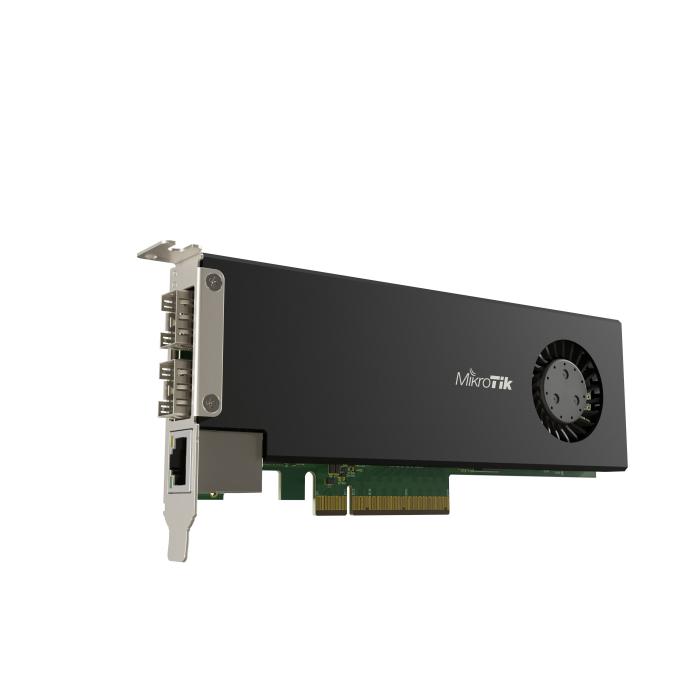

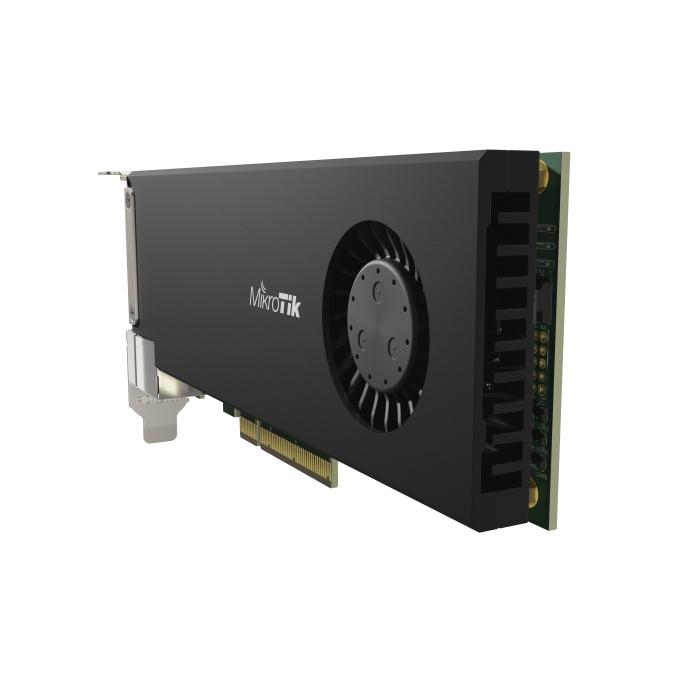

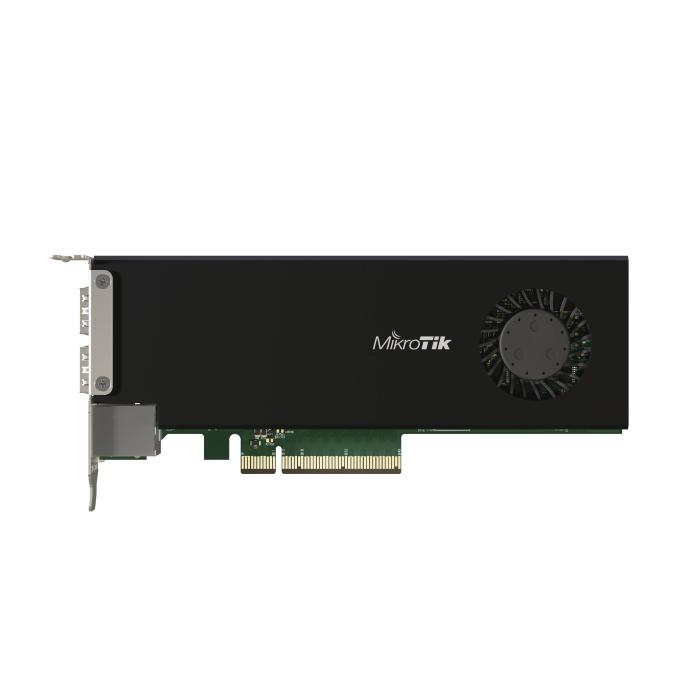

The Mikrotik CCR2004-1G-2XS-PCIe network card is an internal PC component that integrates a PCI Express interface and wired Ethernet or fibre optic connectivity, with one RJ-45 port and two SFP28 fibre ports. This model offers network transfer speeds of 10, 100 and 1000 Mbit/s, adapting to environments requiring flexible data links. It carries CE, EAC and ROHS certifications, and its compact design, with a height of 69 mm, width of 170 mm and depth of 18 mm, facilitates installation in various chassis. Its mean time between failures reaches 200,000 hours and it operates in a temperature range of -20 to 60 °C, making it suitable for prolonged use in controlled conditions.
Specifications
Ports & interfaces
- Connectivity technology: Wired
- Host interface: PCI Express
- Interface: Ethernet / Fiber
- Ethernet LAN (RJ-45) ports: 1
- Fiber ports quantity: 2
- Fiber optic connector: SFP28
Network
- Ethernet LAN data rates: 10, 100, 1000 Mbit/s
Design
- Component for: PC
- Internal: Yes
- Mean time between failures (MTBF): 200000 h
- Certification: CE, EAC, ROHS
Operational conditions
- Operating temperature (T-T): -20 - 60 °C
Weight & dimensions
- Width: 170 mm
- Depth: 18 mm
- Height: 69 mm
