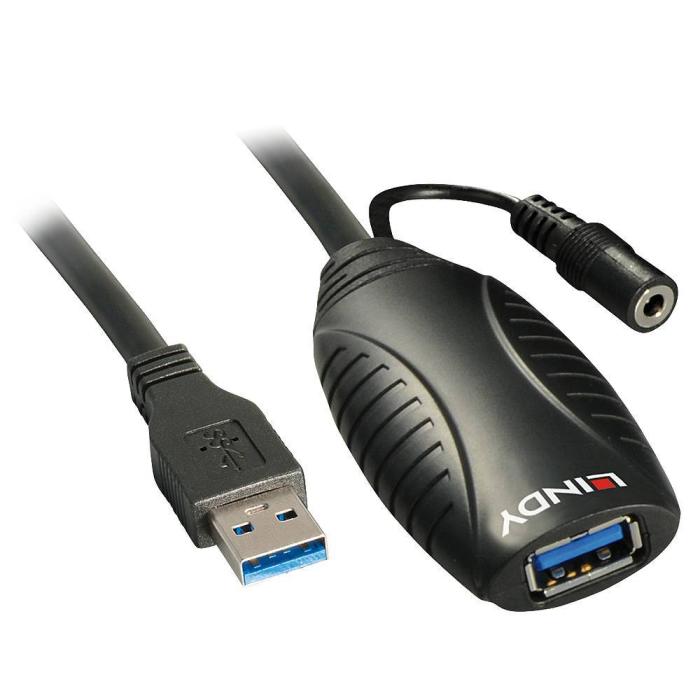

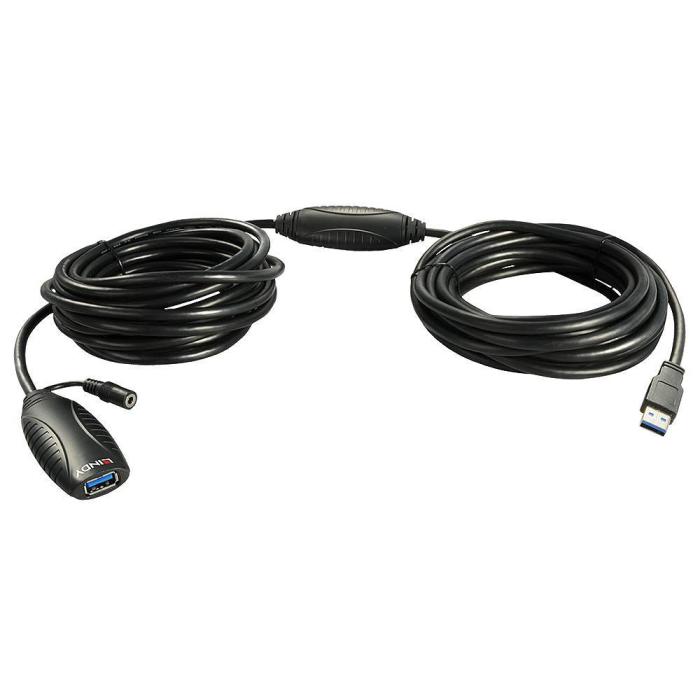

Lindy 15m USB 3.0 Active Extension

Product 1 image

Product 2 image

Lindy 15m USB 3.0 Active Extension

Not avaliable

Amount

Brand: LINDY

SKU: 92105 PRC: 362237 EAN: 4002888430999 PN: 43099

Description

Specifications

Features

USB version: USB 3.2 Gen 1 (3.1 Gen 1)
Connector 1: USB A
Connector 2: USB A
Connector 1 gender: Male
Connector 2 gender: Female
Connector 1 form factor: Straight
Connector 2 form factor: Straight
AWG wire size: 28/28/22
Connector material: Nickel
Contact material: Copper
Connector contacts plating: Nickel
Cable jacket material: Polyvinyl chloride (PVC)
Conductor material: Copper
Connector shielding: Yes
Connector shield material: Aluminium
Connector housing material: Plastic
Maximum data transfer rate: 5 Gbit/s
Product colour: Black
Cable type: Round cable
Plug and Play: Yes
Transmission medium: Twisted pair
Nominal attenuation: 100 MHz, -1.5 dB 1.25 GHz, -5.0 dB 2.5 GHz, -7.5 dB 7.5 GHz, -25 dB

Power

Power note: 3.5/1.35mm DC

Weight & dimensions

Cable length: 15 m
Cable diameter: 7 mm
Weight: 1.33 kg
Bend radius (min): 6 cm
Connector 1 dimensions (WxDxH): 16 x 49 x 9 mm
Connector 2 dimensions (WxDxH): 35 x 85 x 15 mm
Connector 3 dimensions (WxDxH): 35 x 100 x 15 mm

Packaging data

Package type: Polybag
Package width: 300 mm
Package depth: 80 mm
Package height: 300 mm
Package weight: 1.39 kg

Packaging content

Quantity per pack: 1 pc(s)
Manual: Yes

Operational conditions

Operating temperature (T-T): 0 - 55 °C
Storage temperature (T-T): -20 - 85 °C

Certificates

Certification: CE, UKCA, FCC, RoHS, REACH

Logistics data

Harmonized System (HS) code: 84733080
