Description

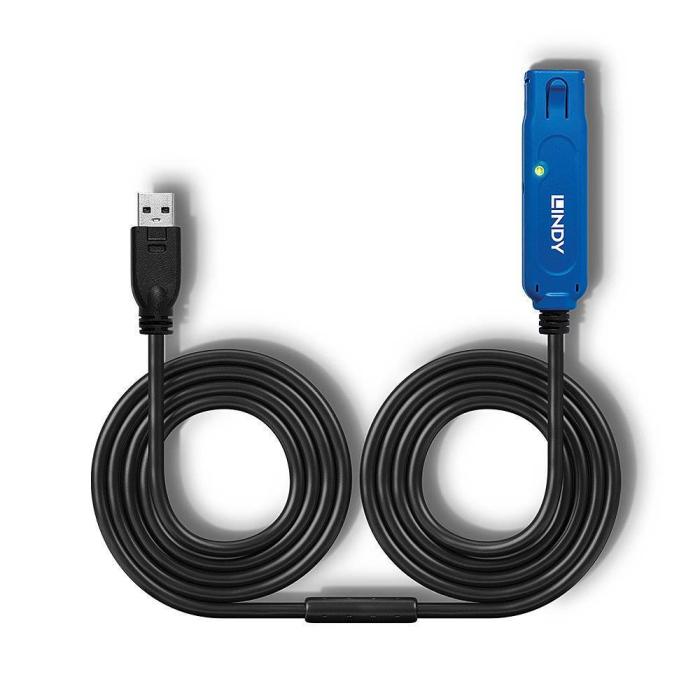

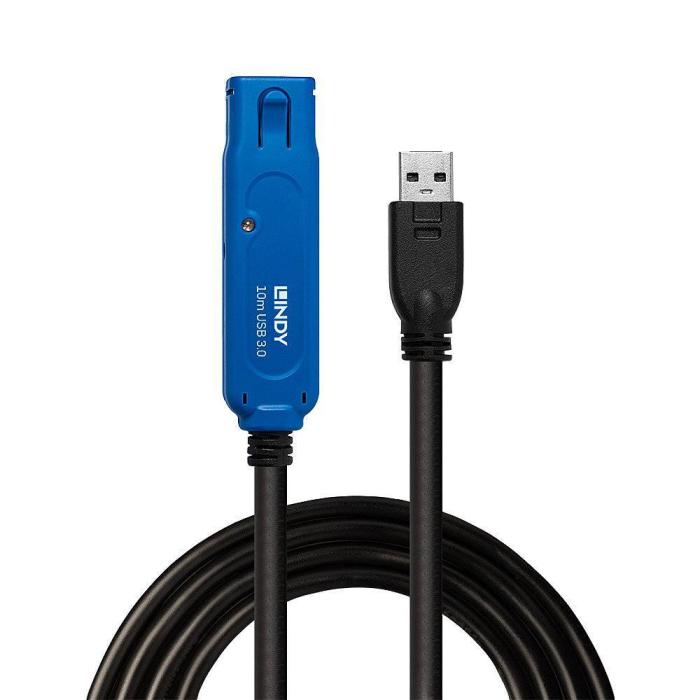

The LINDY 43157 cable is a black USB cable, 10 m in length, that connects devices with a USB A connector. Its maximum data transfer speed reaches 5000 Mbit/s, equivalent to a rate of 5 Gbit/s, thanks to the USB 3.2 Gen 1 (3.1 Gen 1) standard. The tinned copper conductor and twisted pair favour stable transmission, while the brass contacts and nickel connector reinforce the durability of the assembly. The connector shielding, made of aluminium, helps to reduce interference in the working environment. With a cable gauge of 24/24/20 and round type, it is suitable for installations requiring long runs. Both ends have a straight form factor, with a male connector on one side and a female connector on the other, which facilitates integration into equipment and peripherals. All of this in a product that weighs 750 g and is designed for the data environment.
Specifications
Features
- USB version: USB 3.2 Gen 1 (3.1 Gen 1)
- Connector 1: USB A
- Connector 2: USB A
- Connector 1 gender: Male
- Connector 2 gender: Female
- Connector 1 form factor: Straight
- Connector 2 form factor: Straight
- AWG wire size: 24/24/20
- Connector material: Nickel
- Contact material: Brass
- Connector contacts plating: Gold
- Cable jacket material: Polyvinyl chloride (PVC)
- Conductor material: Tinned copper
- Connector shielding: Yes
- Connector shield material: Aluminium
- Connector housing material: Plastic
- Maximum data transfer rate: 5 Gbit/s
- Product colour: Black
- Cable type: Round cable
- Transmission medium: Twisted pair
- Nominal attenuation: 0.064MHz - 0.08dB 0.256MHz - 0.11dB 0.512MHz - 0.13dB 0.772MHz - 0.15dB 1.0MHz - 0.20dB 4MHz - 0.39dB 8MHz - 0.57dB 12MHz - 0.67
Power
- Power note: 2.5/0.7mm DC
Weight & dimensions
- Cable length: 10 m
- Cable diameter: 7 mm
- Weight: 750 g
- Bend radius (min): 3.6 cm
- Connector 1 dimensions (WxDxH): 15 x 49 x 8 mm
- Connector 2 dimensions (WxDxH): 20 x 80 x 13 mm
Packaging data
- Package type: Box
- Package width: 240 mm
- Package depth: 70 mm
- Package height: 200 mm
- Package weight: 900 g
Packaging content
- Quantity per pack: 1 pc(s)
- Manual: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
Certificates
- Certification: CE, UKCA, FCC, RoHS, REACH, California Proposition 65
Logistics data
- Harmonized System (HS) code: 84733080
